Action Taken
DERM turns on INFLATABLE RESTRAINT indicator light.
NOTE:

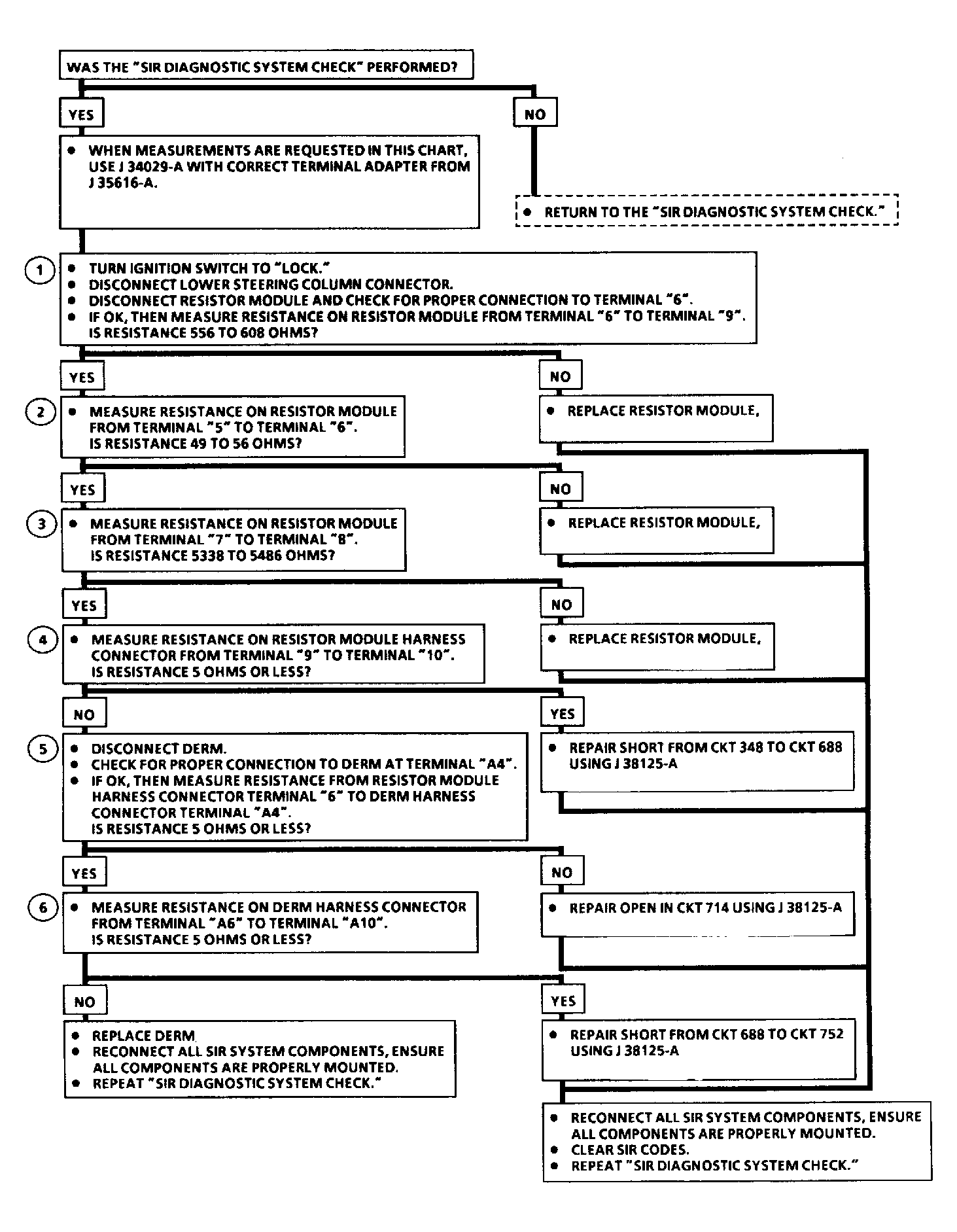

Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS
.
- Checks integrity of 49.9-ohm resistor, 100-ohm resistor, 430-ohm resistor, and associated circuitry in resistor module.
- Checks for open in FORCE HIGH resistor circuitry in resistor module.
- Checks integrity of two 2490-ohm resistors and associated circuitry in resistor module.
- Checks for a short from circuit No. 348 to FORCE LOW circuit.
- Checks for an open in FORCE HIGH circuit.
- Checks for a short from FORCE LOW circuit to SENSE LOW circuit, or a faulty DERM.
