Action Taken

DERM attempts to turn on INFLATABLE RESTRAINT indicator light.

NOTE: Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS  .
  1. Checks for proper resistance of 100-ohm resistor in resistor module.
  2. Checks for an open in FORCE LOW circuit.
  3. Checks for a faulty DERM.

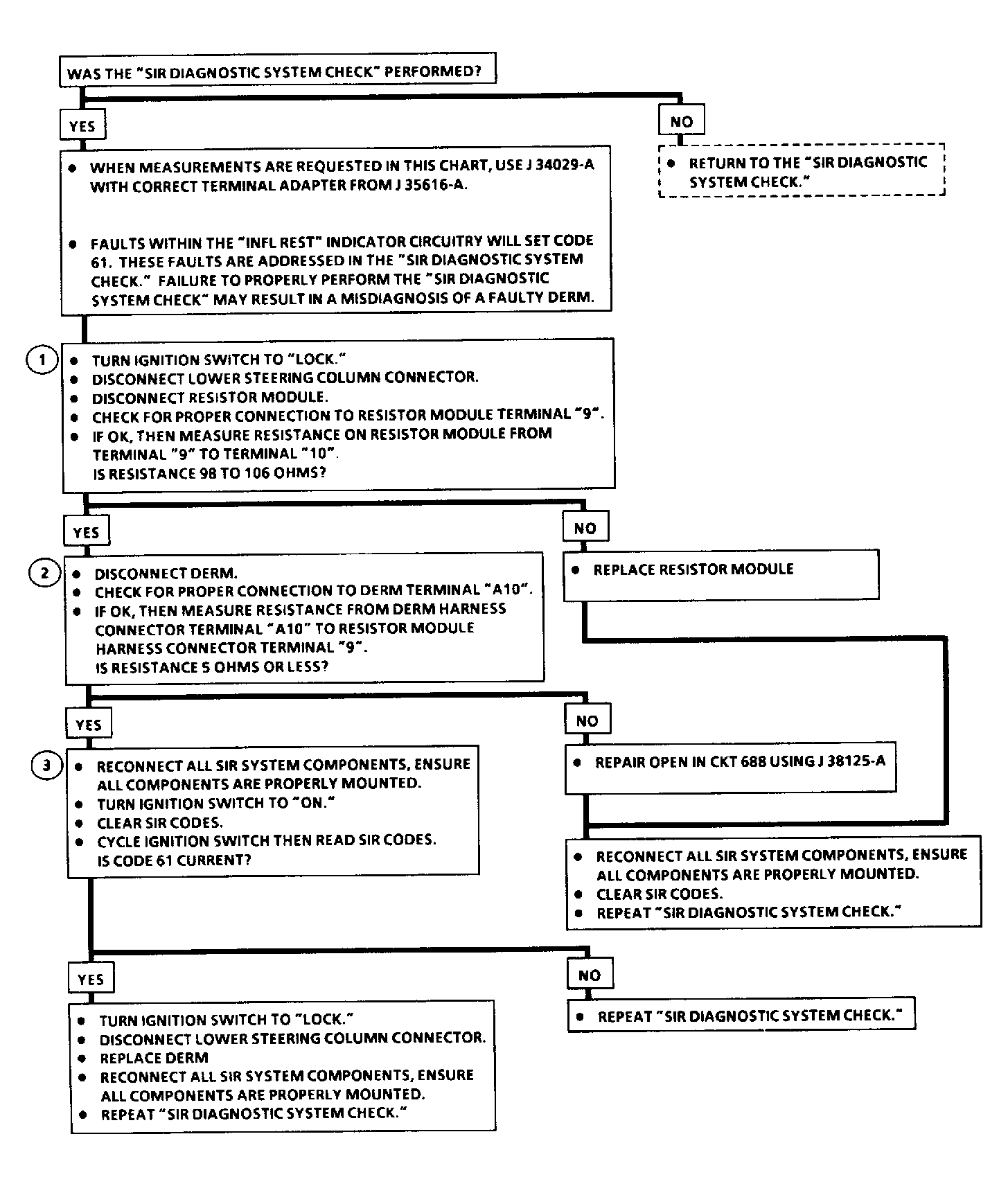

Fig 1: CODE 61, Force Low or Inflatable Restraint Indicator Circuit Failure
G92E24764
