Removal And Installation

Remove the fuel pump.
(Refer to Fuel Delivery System - "REMOVAL AND INSTALLATION ")

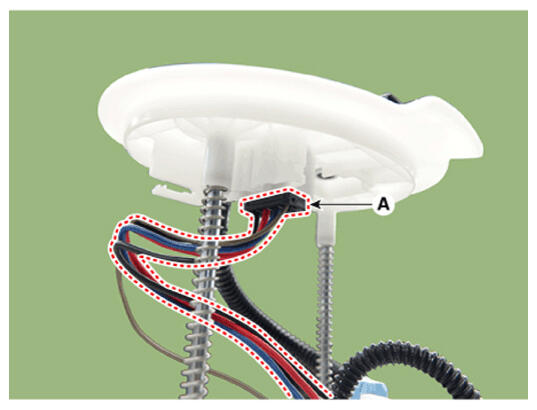

Disconnect the fuel sender connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

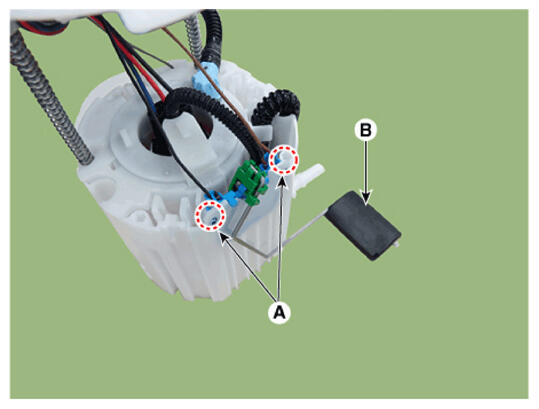

Remove the fuel sender (B) after releasing the fixing hooks (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the fuel pump connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

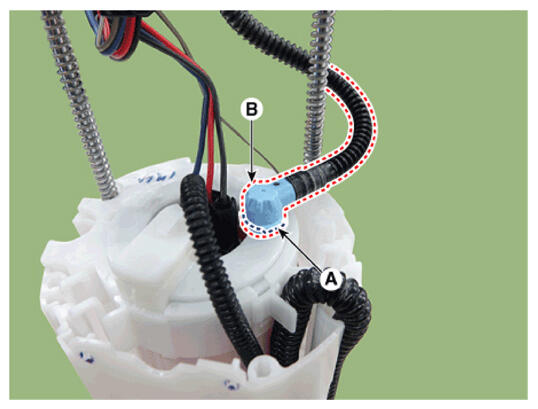

Remove the fuel feed tube quick-connector (B) after releasing the fixing clip (A).

Courtesy of HYUNDAI MOTOR AMERICA

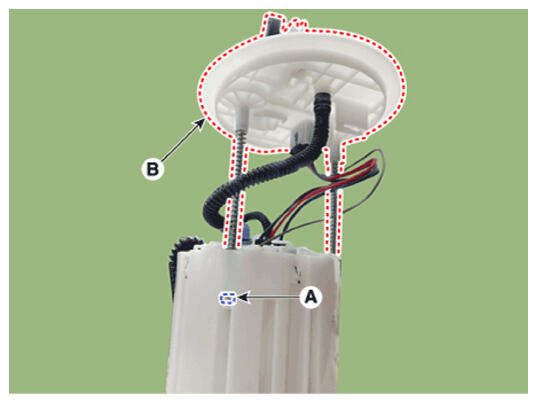

Remove the head assembly (B) after releasing the fixing clip (A).

Courtesy of HYUNDAI MOTOR AMERICA

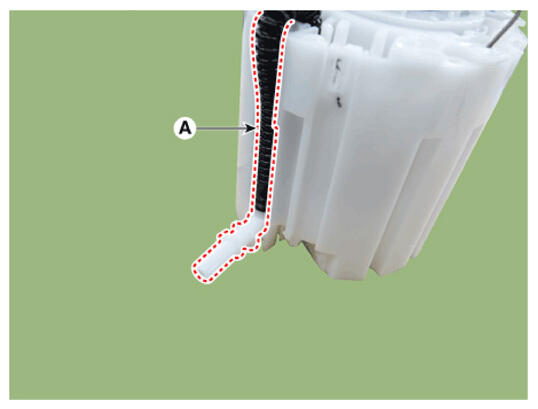

Remove the suction port (A) from the reservoir cap.

Courtesy of HYUNDAI MOTOR AMERICA

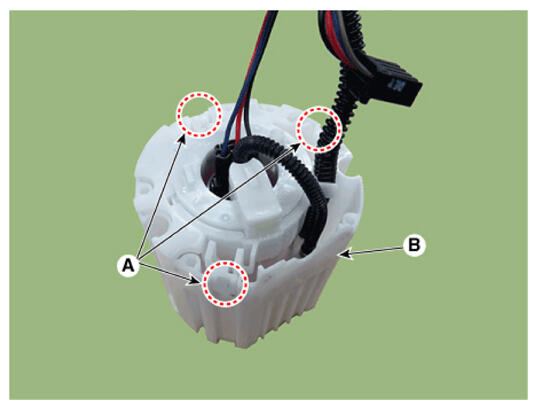

Remove the reservoir-cup (B) after releasing the fixing hooks (A).

Courtesy of HYUNDAI MOTOR AMERICA

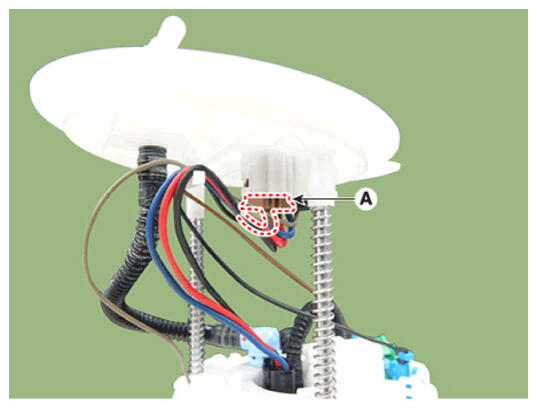

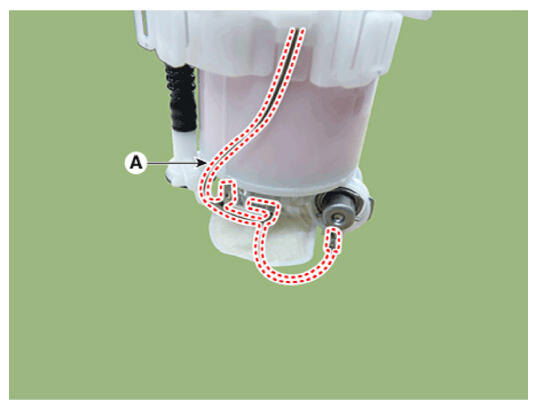

Disconnect the ground cable (A).

Courtesy of HYUNDAI MOTOR AMERICA

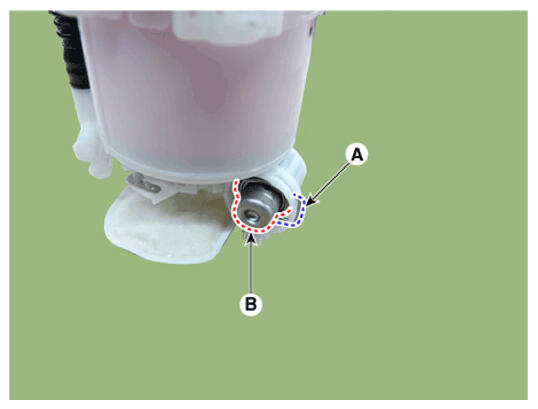

Remove the fixing clip (A), and then disconnect the fuel pressure regulator (B).

Courtesy of HYUNDAI MOTOR AMERICA

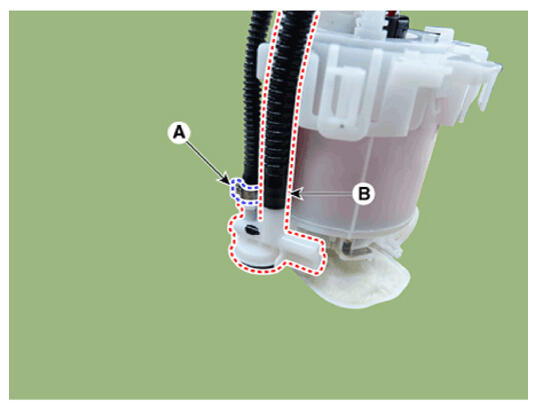

Remove the clamp (A) and remove the suction port (B).

Courtesy of HYUNDAI MOTOR AMERICA

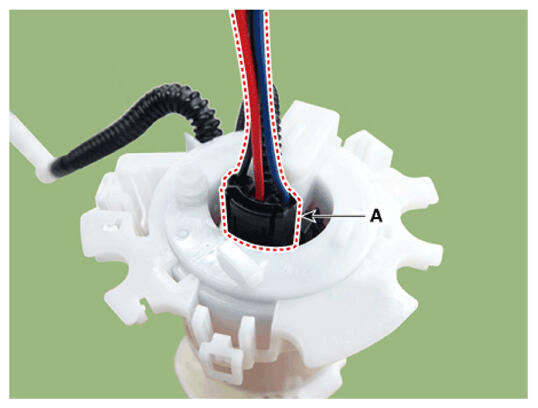

Disconnect the fuel pump motor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

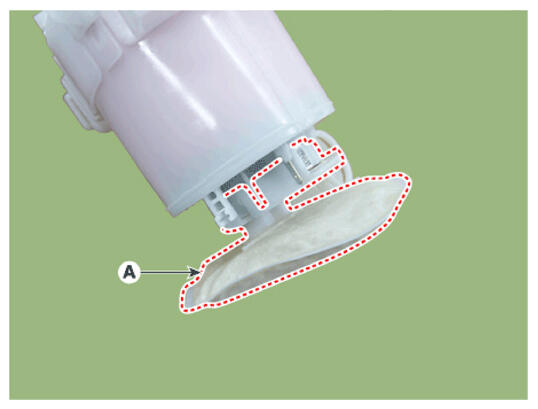

Release the fixing hooks and then remove pre-filter (A).

Courtesy of HYUNDAI MOTOR AMERICA

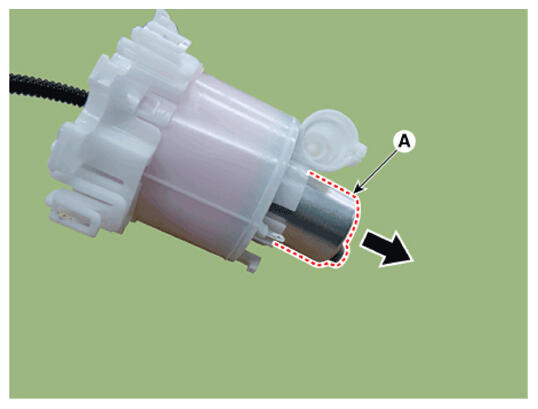

Remove the fuel pump motor (A) in the arrow direction.

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
