Drive Belt Tensioner Bracket

  1. Remove the drive belt tensioner.
  2. Remove the water cooled intercooler reservoir tank.

    (Refer to Cooling System - "WATER COOLED INTERCOOLER RESERVOIR TANK ")

  3. Remove the alternator.

    (Refer to Engine Electrical System - "REMOVAL AND INSTALLATION ")

  4. Remove the A/C compressor.

    (Refer to Heating, Ventilation and Air Conditioning - "COMPRESSOR ")

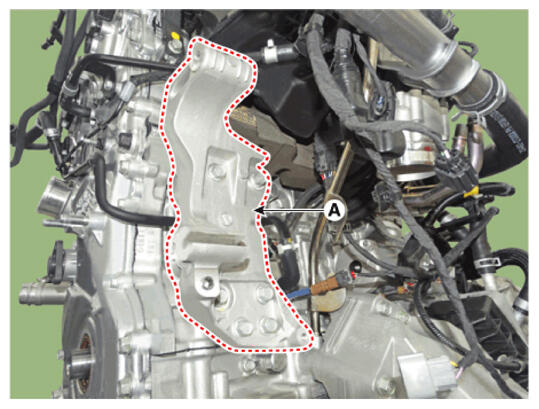

  5. Remove the drive belt tensioner bracket (A).

    Tightening torque:  39.2 - 44.1 N.m (4.0 - 4.5 kgf.m, 28.9 - 32.5 lb.ft)

    G16846300Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
