Water Cooled Intercooler Coolant Reservoir Tank

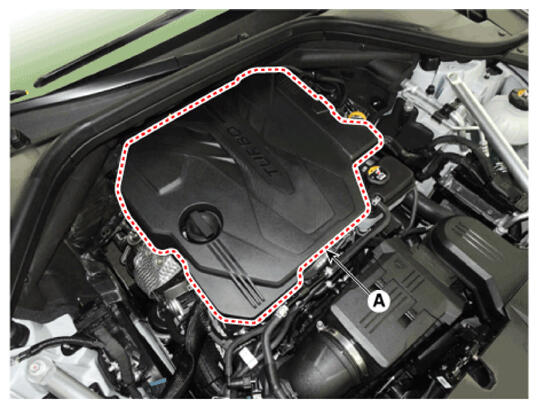

  1. Remove the engine cover (A).
    G16846537Courtesy of HYUNDAI MOTOR AMERICA

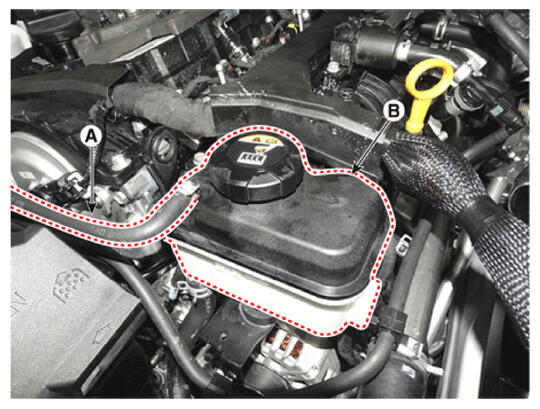

  2. Remove the water cooled intercooler reservoir tank.
    1. Disconnect the over flow hose (A).
    2. Remove the water cooled intercooler reservoir tank (B).

      Tightening torque:  7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

      G16846538Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
