Rear Seat Back Cover: Replacement: [RH]

Remove the rear seat back assembly [RH].
Refer to Rear Seat - "[REAR SEAT BACK ASSEMBLY] ")

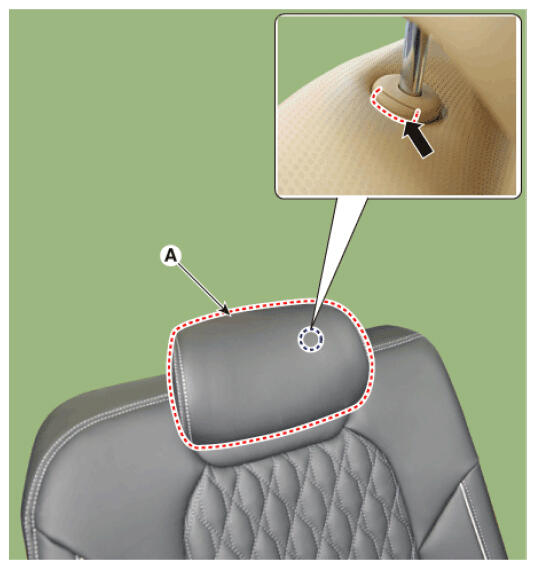

Press the lock pin and remove the rear seat headrest (A).

Courtesy of HYUNDAI MOTOR AMERICA

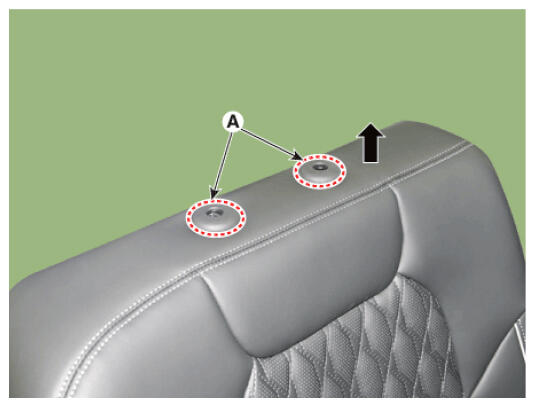

Remove the headrest guides (A) by pulling upward.

Courtesy of HYUNDAI MOTOR AMERICA

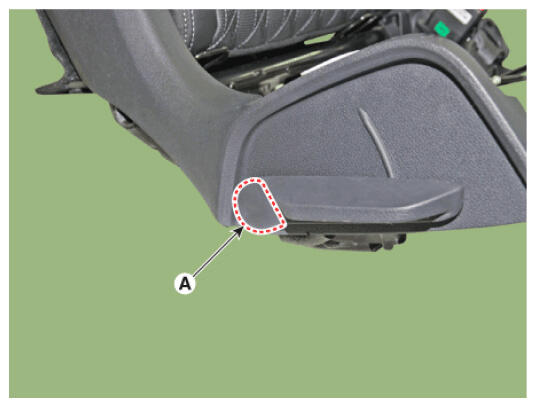

Remove the rear seat slide knob cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

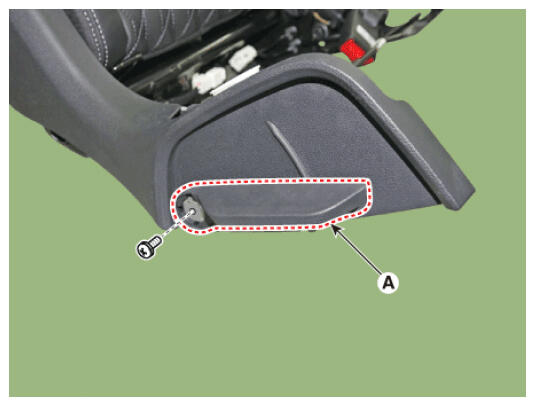

Loosen the mounting screw, remove the rear seat slide knob (A).

Courtesy of HYUNDAI MOTOR AMERICA

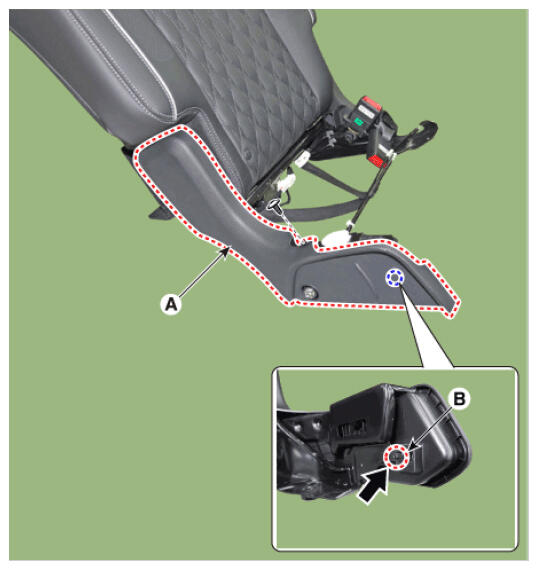

Loosen the mounting screws, press the lock pin (B) and remove the rear seat shield outer cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting screws, remove the rear seat shield inner cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

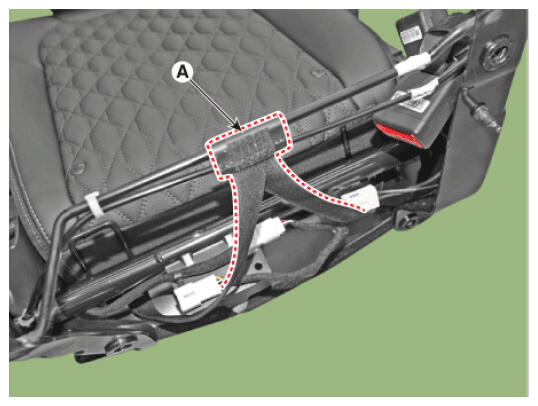

Separate the rear seat lower protector (A).

Courtesy of HYUNDAI MOTOR AMERICA

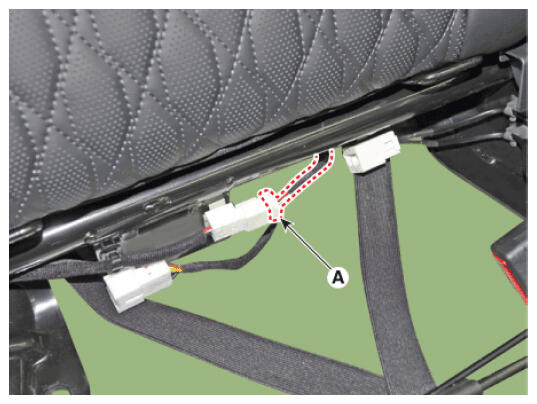

Disconnect the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

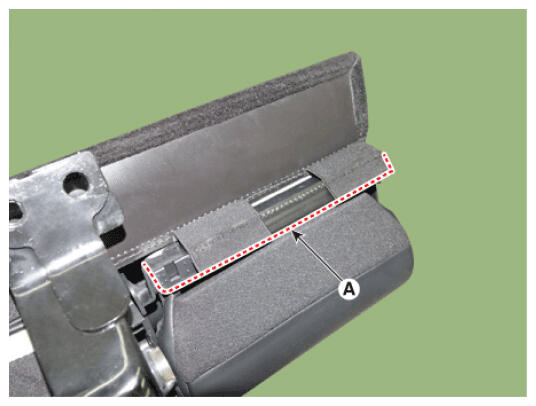

Separate the rear seat back protector (A).

Courtesy of HYUNDAI MOTOR AMERICA

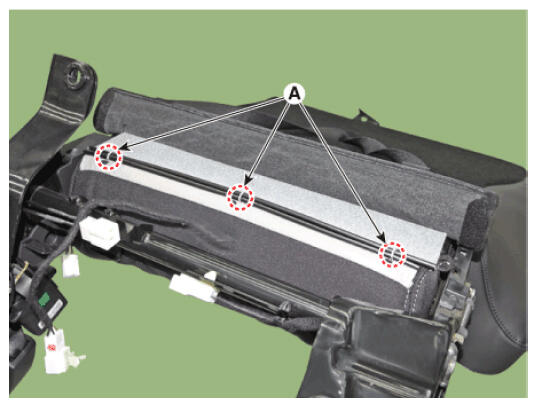

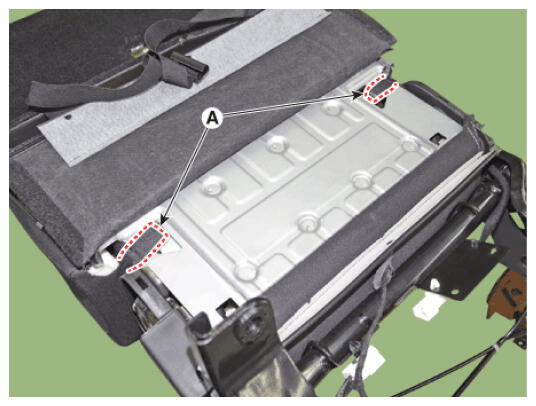

Remove the hog-ring clips (A).

Courtesy of HYUNDAI MOTOR AMERICA

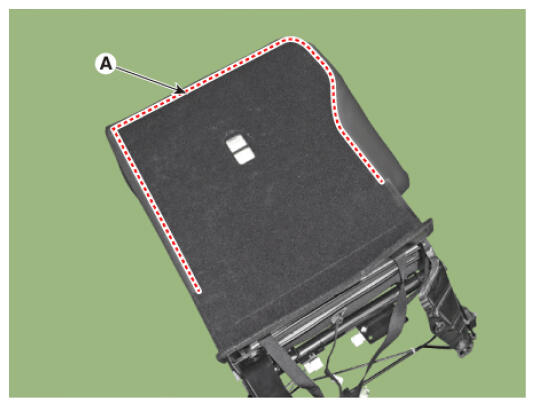

Remove the rear seat back protector cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear seat protector.

Courtesy of HYUNDAI MOTOR AMERICA

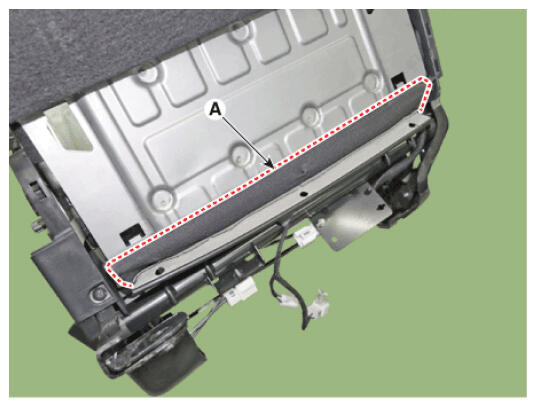

Remove the rear seat back lower protector (A).

Courtesy of HYUNDAI MOTOR AMERICA

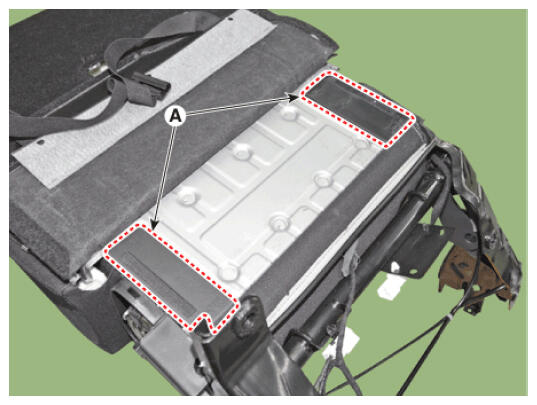

Separate the rear seat back cover protector (A).

Courtesy of HYUNDAI MOTOR AMERICA

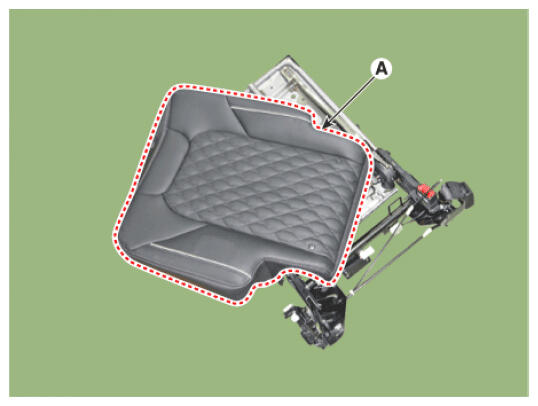

Remove the rear seat back cover (A) from the rear seat frame.

Courtesy of HYUNDAI MOTOR AMERICA

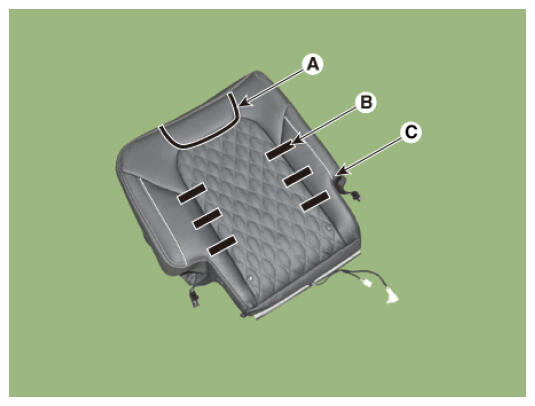

After removing the Velcro tape (A) and tie down clips (B) inside the rear seat cushion cover, remove the seat cushion cover (C).

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to deviate from the pads, insert wires, and aplix.
To install, reverse the removal procedure.
Information
- Make sure that the connectors are connected completely
- Replace any damaged clips (or pin-type retainers).
