[Rear seat back assembly]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear seat cushion assembly.

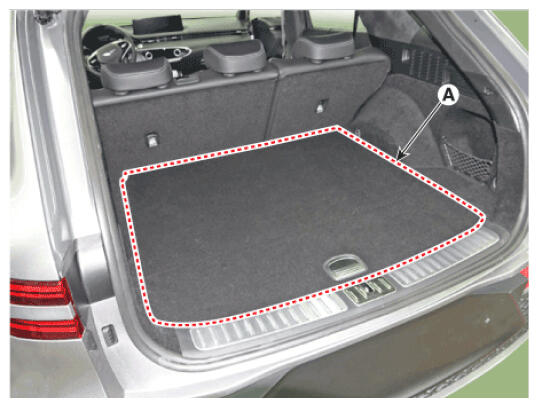

  3. Remove the luggage board (A).
    G16855576Courtesy of HYUNDAI MOTOR AMERICA

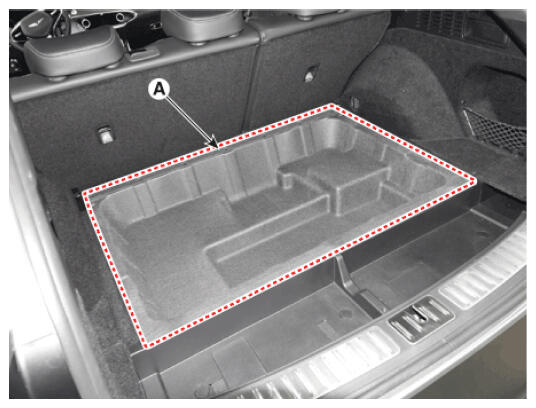

  4. Remove the luggage tray (A).
    G16855577Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the rear seat back assembly.

    [LH]

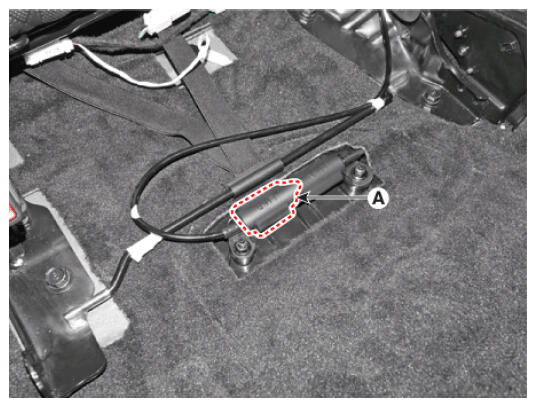

    1. Open the rear seat folding cable cover (A).
      G16855578Courtesy of HYUNDAI MOTOR AMERICA

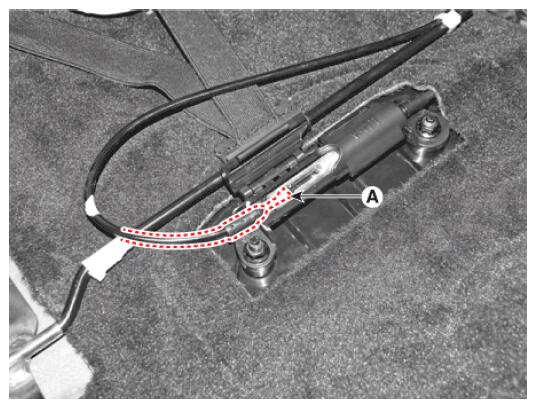

    2. Separate the rear seat folding cable (A).
      G16855579Courtesy of HYUNDAI MOTOR AMERICA

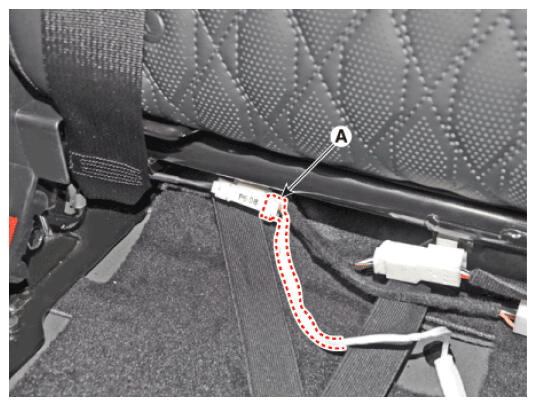

    3. Disconnect the rear seat back connector (A).
      G16855580Courtesy of HYUNDAI MOTOR AMERICA

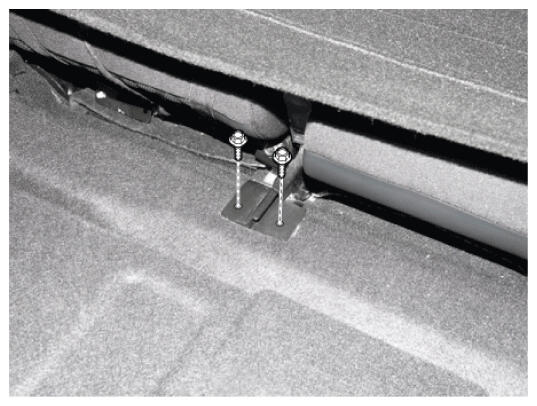

    4. Loosen the mounting bolts, remove the rear seat back assembly (A).

      Tightening torque:

      49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

    G16855581Courtesy of HYUNDAI MOTOR AMERICA
    G16855582Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

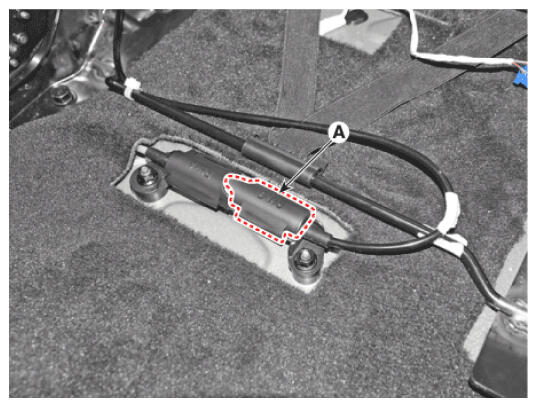

    1. Open the rear seat folding cable cover (A).
      G16855583Courtesy of HYUNDAI MOTOR AMERICA
    2. Separate the rear seat folding cable (A).
      G16855584Courtesy of HYUNDAI MOTOR AMERICA

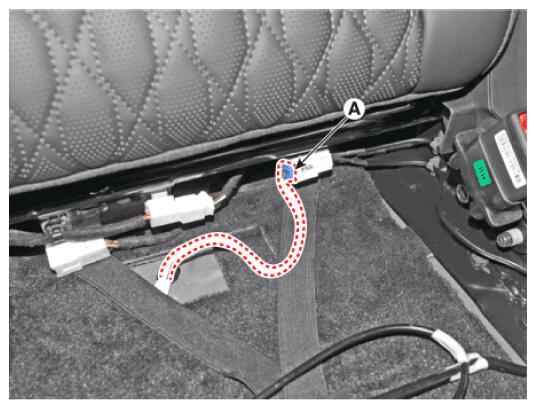

    3. Disconnect the rear seat back connector (A).
      G16855585Courtesy of HYUNDAI MOTOR AMERICA

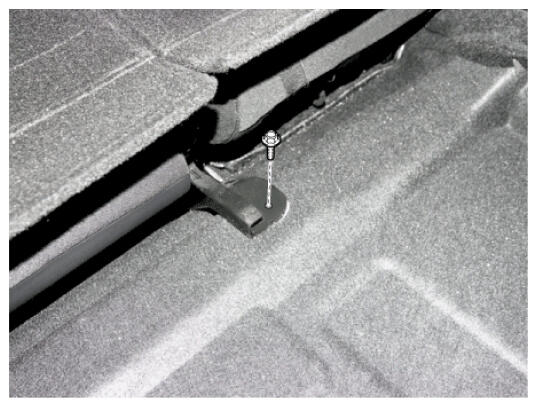

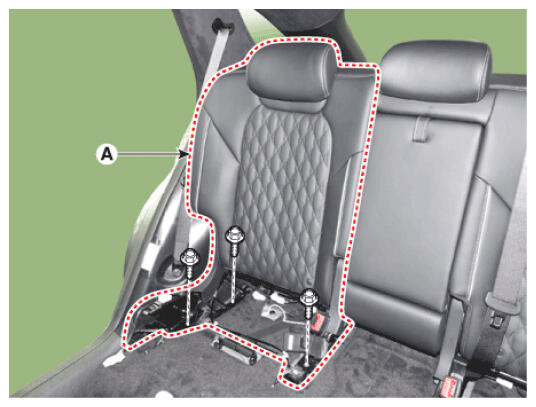

    4. Loosen the mounting bolts, remove the rear seat back assembly (A).

      Tightening torque:

      49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

    G16855586Courtesy of HYUNDAI MOTOR AMERICA
    G16855587Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse the removal procedure.

    Information

    • Make sure the connector Is connected in properly.
