Rear Seat Back Cover: Replacement: [LH]
- Remove the rear seat back assembly [LH].
Refer to Rear Seat - "[REAR SEAT BACK ASSEMBLY] ")

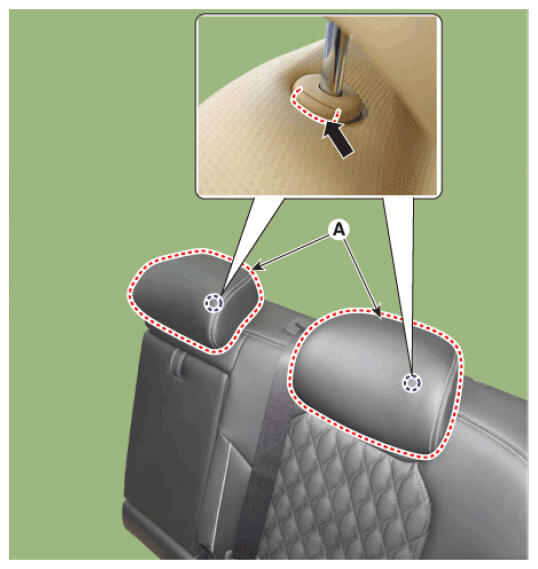

- Press the lock pin and remove the rear seat headrest (A).

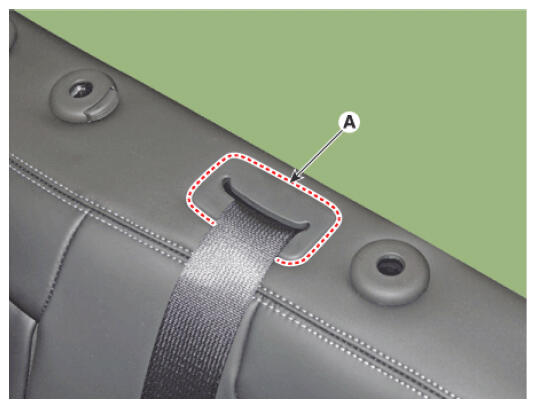

- Separate the rear center seat belt cover (A).

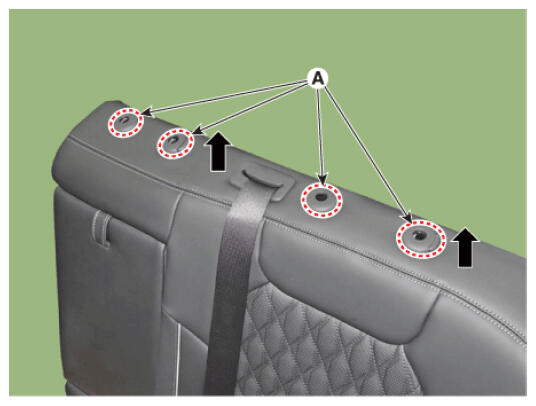

- Remove the headrest guides (A) by pulling upward.

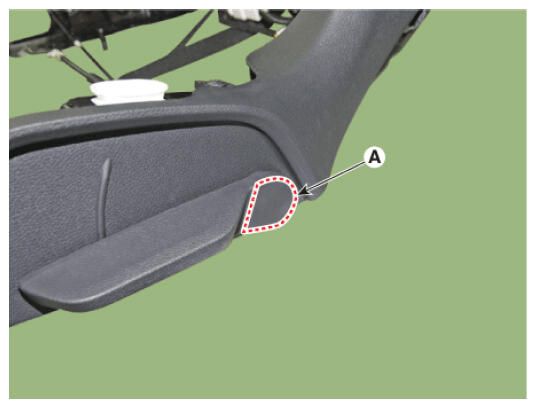

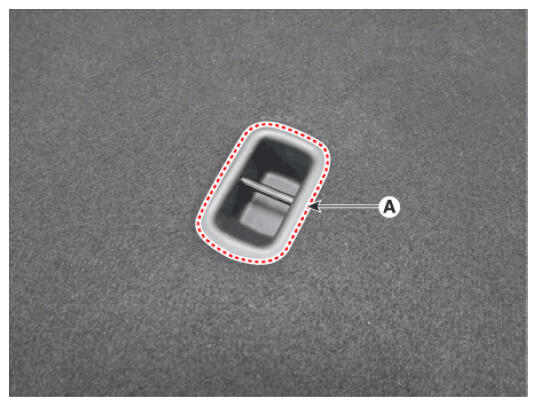

- Remove the rear seat slide knob cover (A).

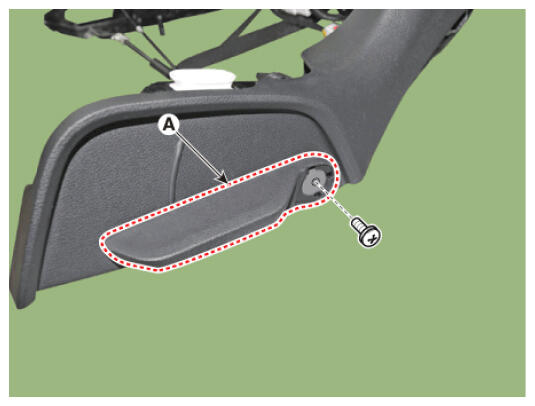

- Loosen the mounting screw, remove the rear seat slide knob (A).

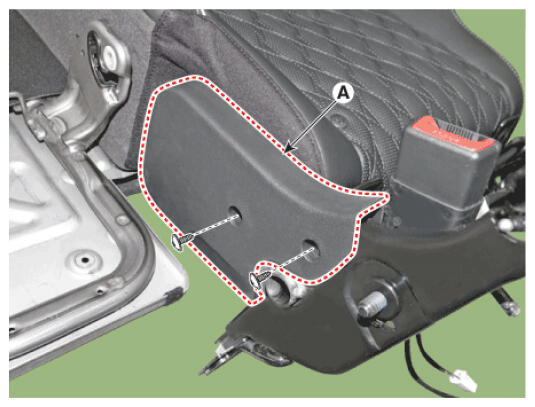

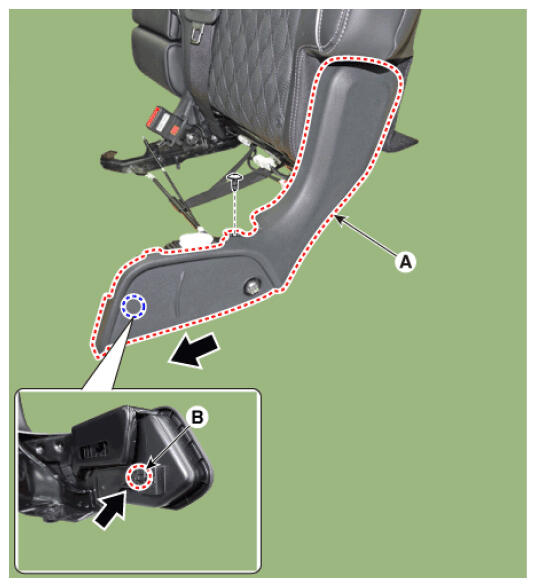

- Loosen the mounting screws, press the lock pin (B) and remove the rear seat shield outer cover (A).

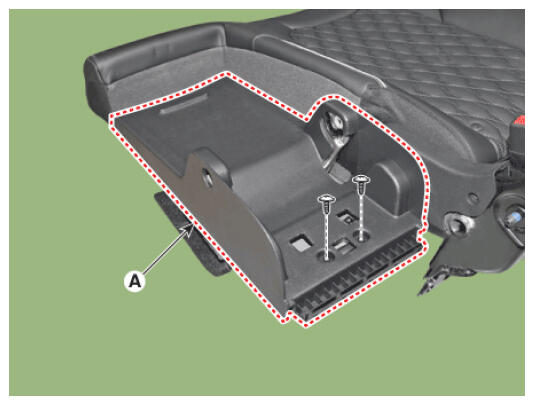

- Separate the rear seat lower protector (A).

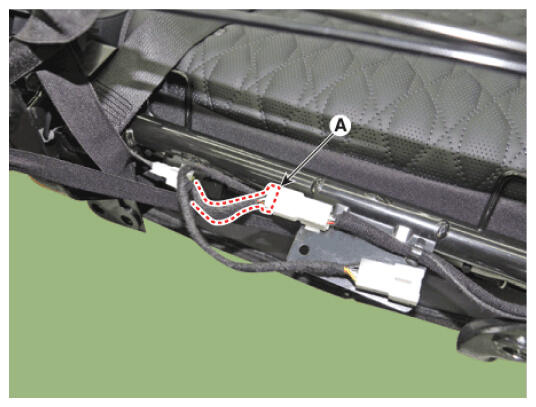

- Disconnect the connector (A).

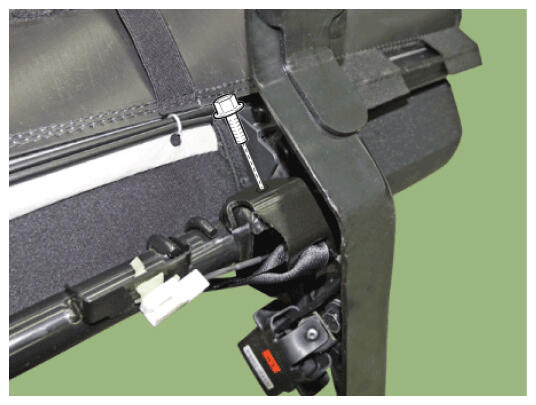

- Loosen the mounting bolt, separate the rear center seat belt lower anchor (A).

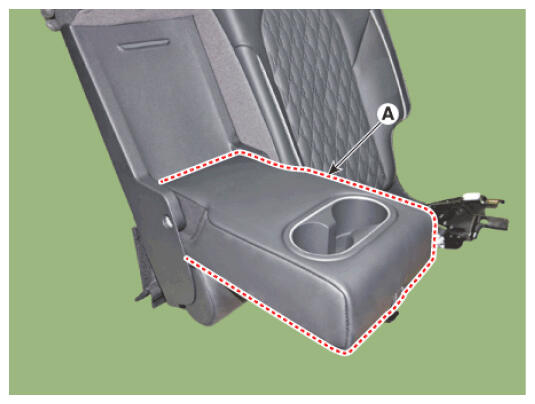

- Remove the plug hole, loosen the mounting bolt and then remove the rear seat back armrest (A).
- Separate the rear seat back protector (A).

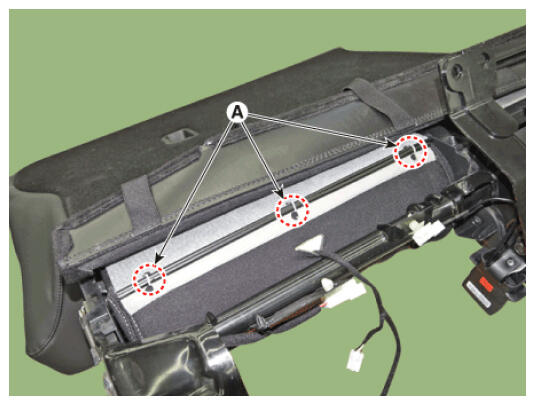

- Remove the hog-ring clips (A).
- Remove the child anchor cover (A).

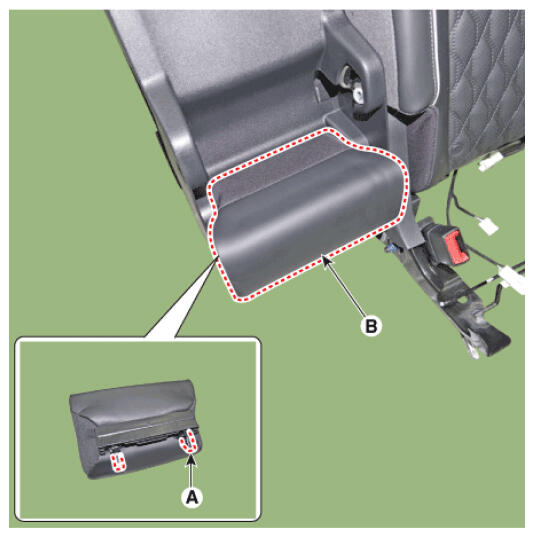

- Loosen the mounting screws, press the lock pin (A) and then remove the rear seat back armrest pad (B).
- Loosen the mounting screws, remove the rear seat back panel (A).

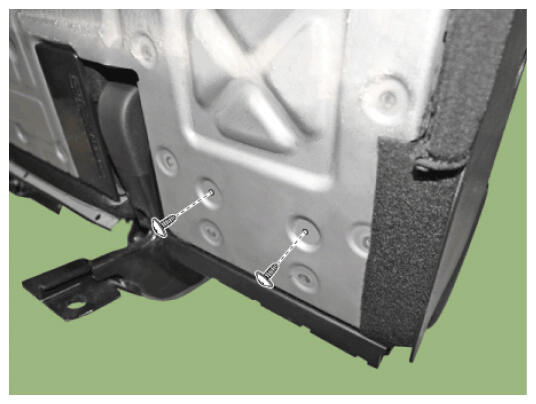

- Loosen the mounting screws, remove the rear seat shield inner cover (A).
- Remove the rear seat back protector cover (A).
- Remove the rear seat protector.
[Front side]
[Rear side]

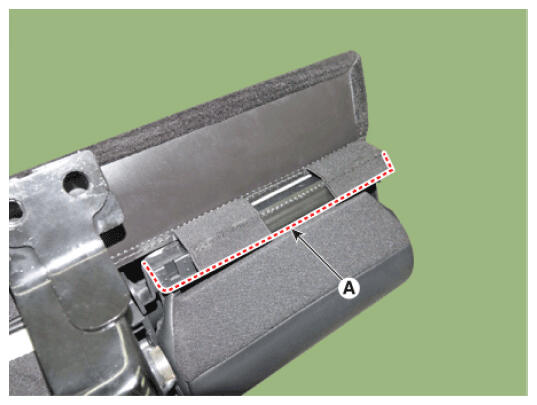

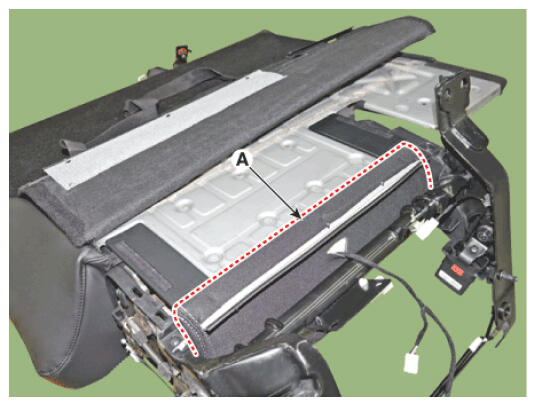

- Remove the rear seat back lower protector (A).

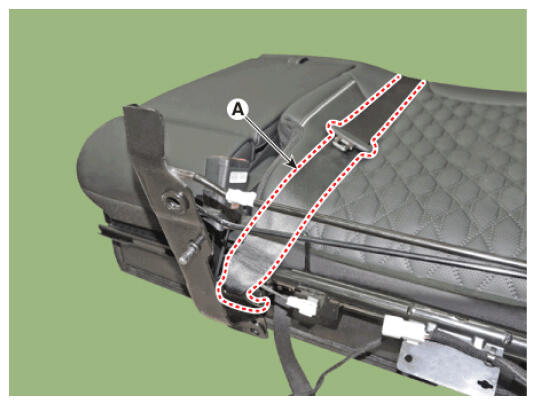

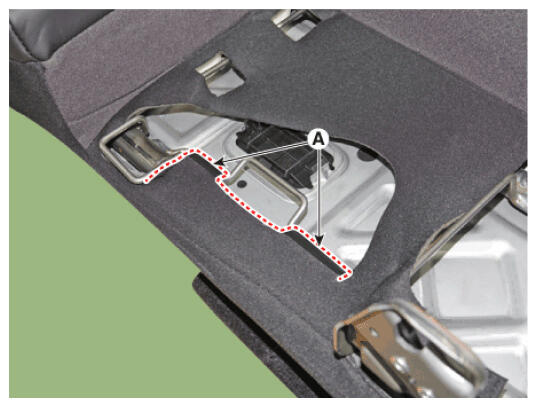

- Separate the rear seat back cover protector (A).

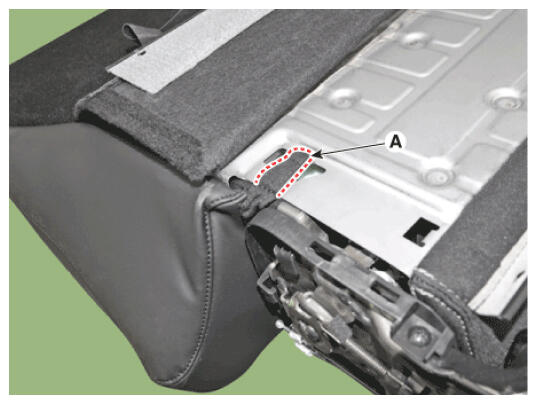

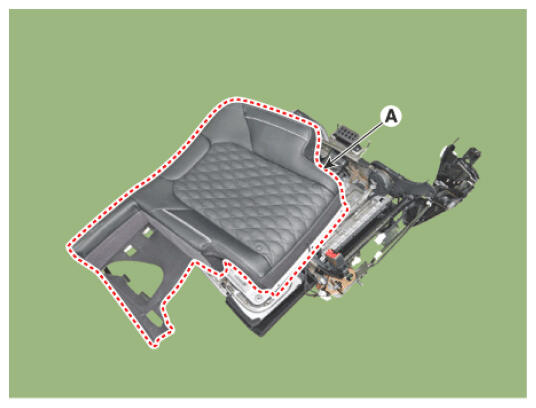

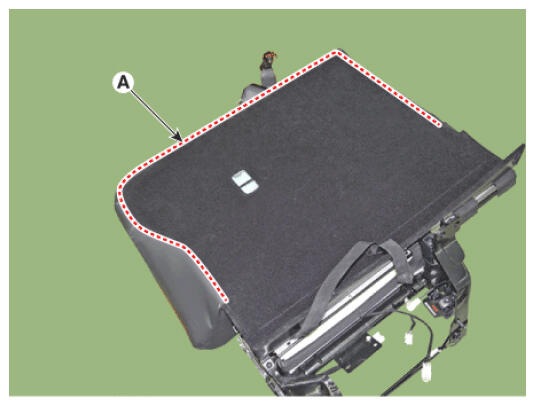

- Remove the rear seat back cover (A) from the rear seat frame.

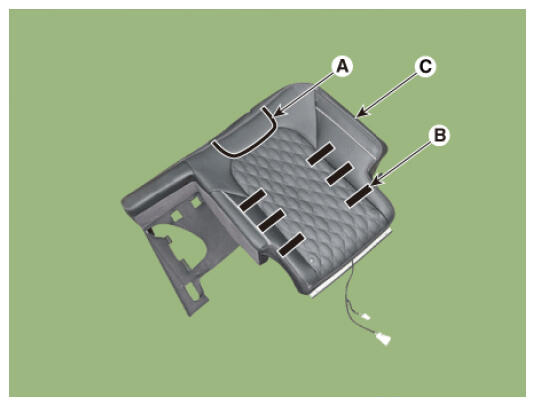

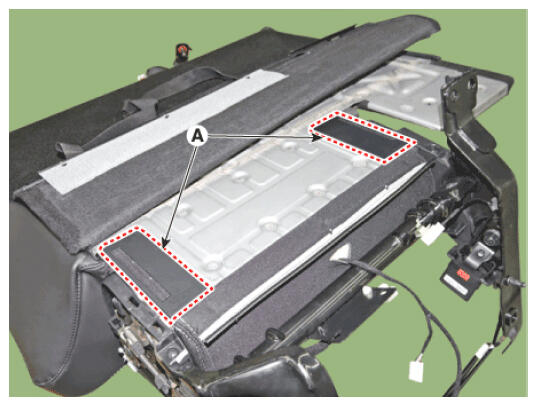

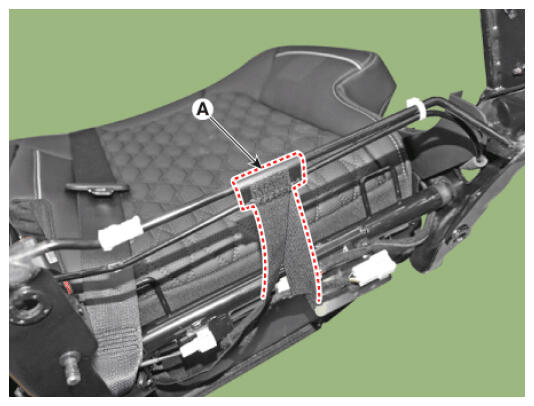

- After removing the Velcro tape (A) and tie down clips (B) inside the rear seat cushion cover, remove the seat cushion cover (C).CAUTION:
- Be careful not to deviate from the pads, insert wires, and aplix.
- To install, reverse the removal procedure.
Information
- Make sure that the connectors are connected completely
- Replace any damaged clips (or pin-type retainers).
