Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

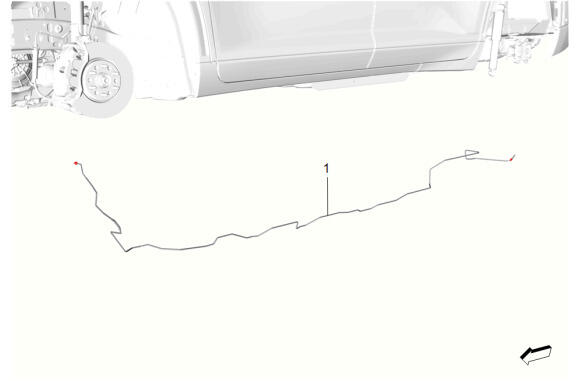

Maneuver the left rear brake pipe (1) into the vehicle.
Courtesy of GENERAL MOTORS COMPANY

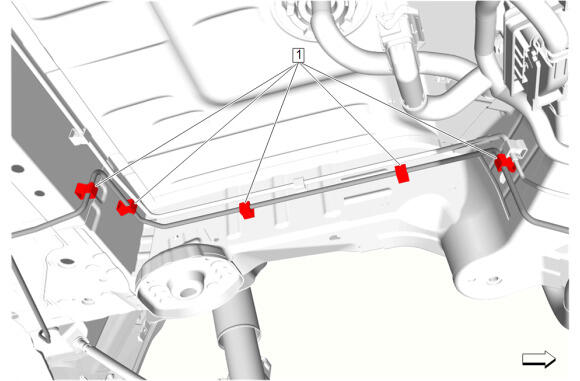

Rear Brake Pipe Clip (1) - Engage [5x]
Courtesy of GENERAL MOTORS COMPANY

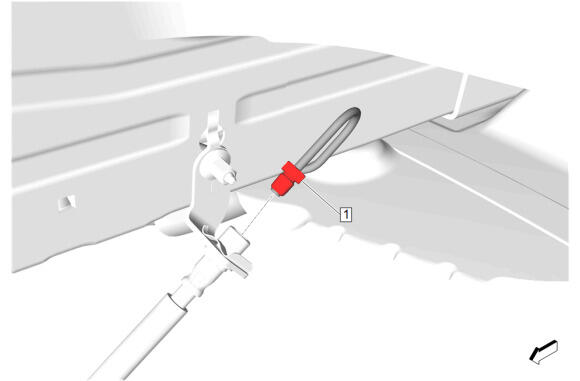

Remove the plug from the rear brake hose inlet.

CAUTION:

Fastener Caution .

Rear Brake Pipe Fitting (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

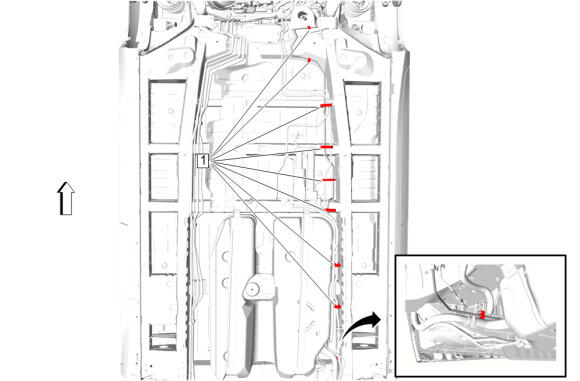

Rear Brake Pipe Clip (1) - Engage [9x]
Rear Suspension Cradle - Install - Rear Suspension Cradle Removal and Installation (AWD) , or Rear Suspension Cradle Removal and Installation (FWD)
Drivetrain and Front Suspension Cradle - Install - Drivetrain and Front Suspension Cradle Removal and Installation (AWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (FWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (AT4)
Courtesy of GENERAL MOTORS COMPANY

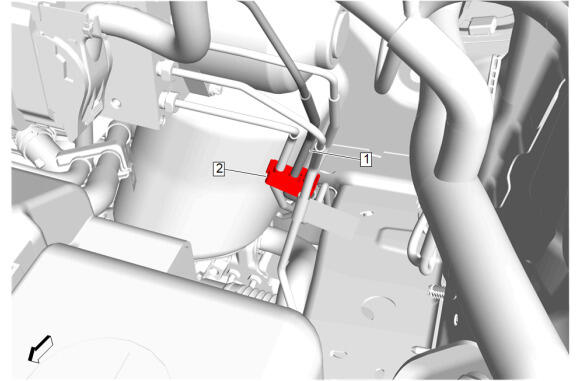

Brake Pipe (1) @ Front Brake Pipe Clip (2) - Engage
Courtesy of GENERAL MOTORS COMPANY

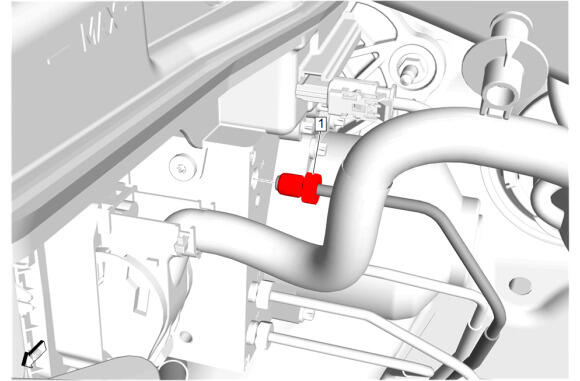

Remove the cap from the brake master cylinder outlet.
Front Brake Pipe Fitting (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Radiator Surge Tank (2) - Install
Radiator Surge Tank Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (4) - Install
Air Cleaner Outlet Duct Nut (3) - Install and tighten - Fastener Specifications
Air Cleaner Outlet Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications
Air Cleaner Outlet Duct Clamp (5) - Tighten - Fastener Specifications
Turbocharger Outlet Duct Front Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Positive Crankcase Ventilation Fresh Air Tube (1) @ Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

Oil Filler Cap (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (1) - Install
Oil Filler Cap - Install
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Perform the necessary programming and setup procedure: Control Module References
Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
Check for brake system leaks.
