Installation Procedure

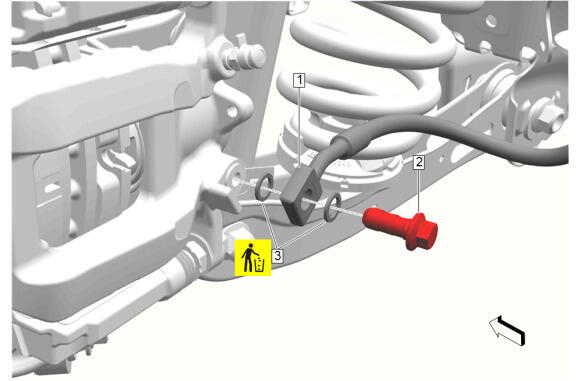

  1. GM6224620Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Hose Fitting Gasket (3) - Install NEW [2x]

  2. Rear Brake Hose (1) @ Rear Brake Caliper - Install
  3. Rear Brake Hose Fitting (2) - Install and tighten - Fastener Specifications
  4. GM4289799Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Hose Bracket Nut (1) - Install and tighten - Fastener Specifications

  5. GM4289797Courtesy of GENERAL MOTORS COMPANY

    Brake Pipe Fitting (1) - Install and tighten - Fastener Specifications

  6. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  7. Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
  8. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
