Installation Procedure

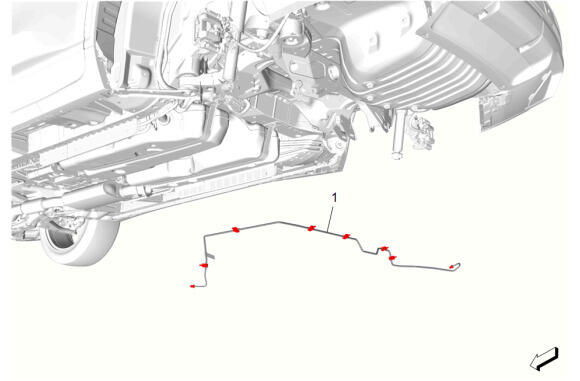

Maneuver the rear brake crossover pipe (1) into the vehicle.
Remove the plug from the rear brake hose inlet.

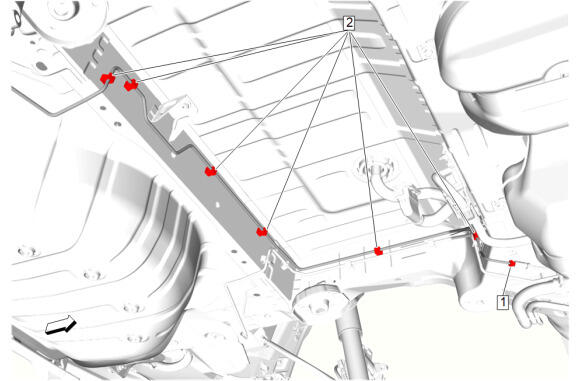

- Rear Brake Pipe Fitting (1) - Install and tighten - Fastener Specifications
Rear Brake Pipe Clip (2) - Engage [6x]

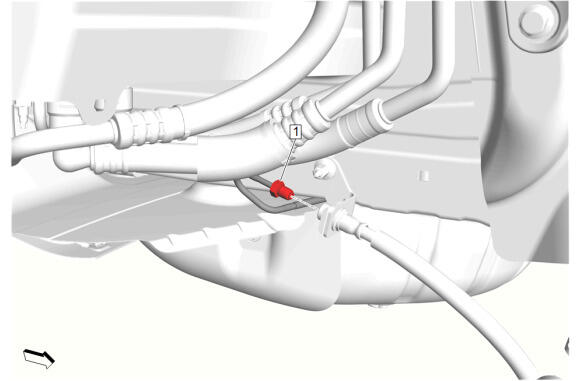

- Remove the cap from the rear brake front pipe outlet.
- Rear Brake Pipe Fitting (1) - Install and tighten - Fastener Specifications
- Rear Suspension Cradle - Install - Rear Suspension Cradle Removal and Installation (AWD) , or Rear Suspension Cradle Removal and Installation (FWD)
- Perform the necessary programming and setup procedure: Control Module References
- Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
- Check for brake system leaks.
