Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

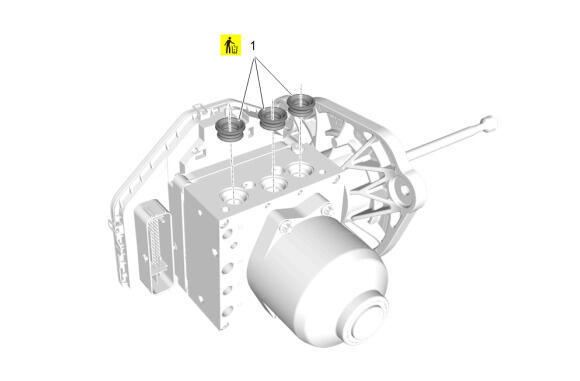

Brake Master Cylinder Reservoir Seal (1) - Install NEW [3x]
Courtesy of GENERAL MOTORS COMPANY

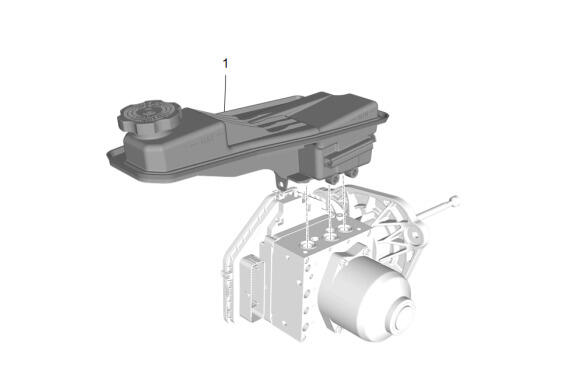

Brake Master Cylinder Reservoir (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

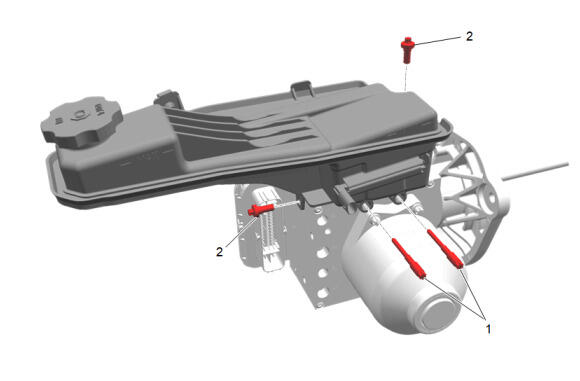

Brake Master Cylinder Reservoir Bolt (2) - Install and tighten - Fastener Specifications
Brake Master Cylinder Reservoir Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

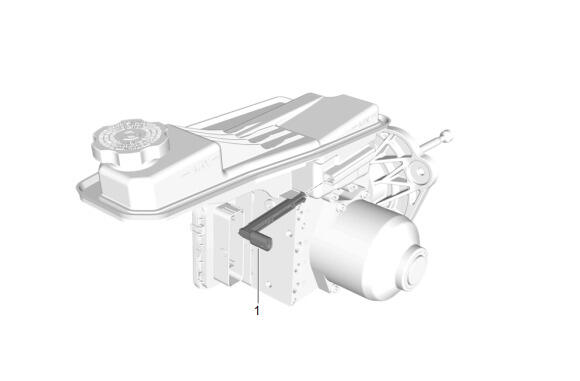

Brake Fluid Level Indicator Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

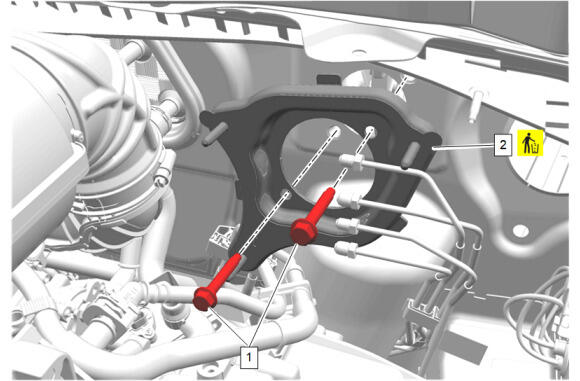

Brake Master Cylinder Adapter (2) - Install NEW
Brake Master Cylinder Adapter Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

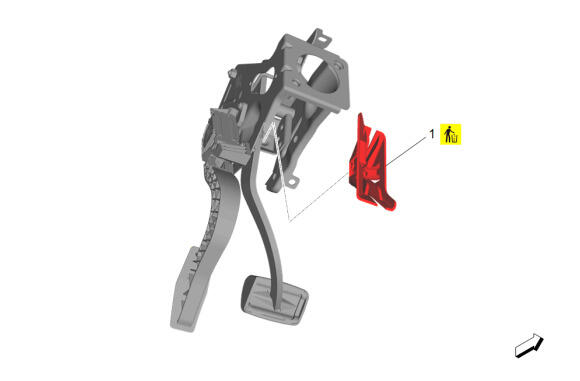

Brake Pedal Retainer (1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

Brake Master Cylinder (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

CAUTION:
Fastener Caution

Brake Master Cylinder Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Brake Master Cylinder Bracket Nut (2) - Install and tighten - Fastener Specifications
Connect the electrical connector. (1)
Remove the plugs from the brake master cylinder ports and the brake pipes.
Courtesy of GENERAL MOTORS COMPANY

Brake Pipe Fitting (2) - Install and tighten [4x] - Fastener Specifications
Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

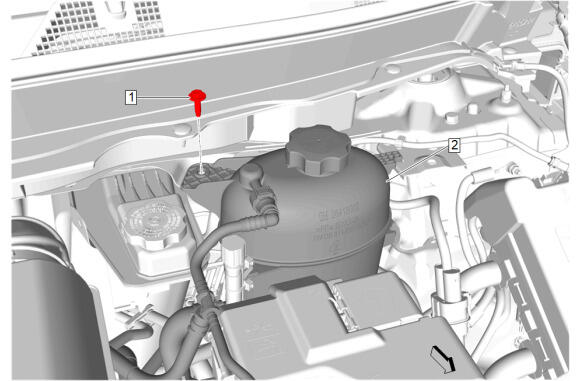

Radiator Surge Tank (2) - Install
Radiator Surge Tank Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

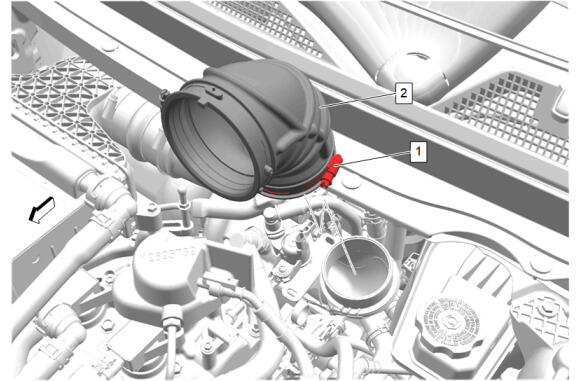

Turbocharger Outlet Duct Connector (2) - Install
Turbocharger Outlet Duct Rear Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

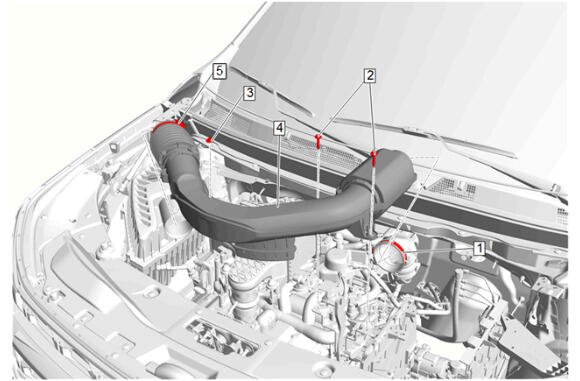

Air Cleaner Outlet Duct (4) - Install
Air Cleaner Outlet Duct Nut (3) - Install and tighten - Fastener Specifications
Air Cleaner Outlet Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications
Air Cleaner Outlet Duct Clamp (5) - Tighten - Fastener Specifications
Turbocharger Outlet Duct Front Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

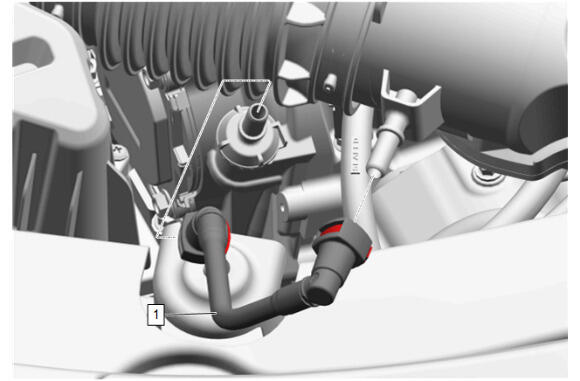

Positive Crankcase Ventilation Fresh Air Tube (1) @ Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

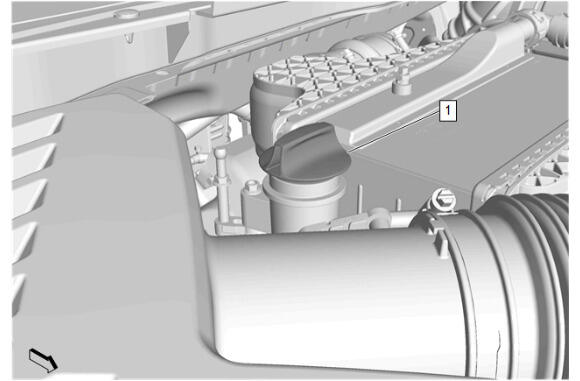

Oil Filler Cap (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

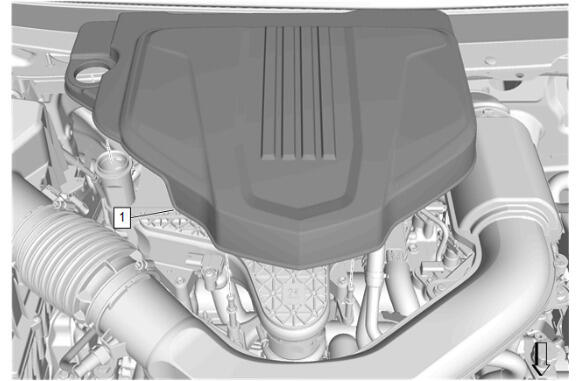

Intake Manifold Cover (1) - Install
Oil Filler Cap - Install
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Retainer (1) & Brake Pedal (2) @ Power Brake Booster Pushrod - Secure
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Perform the necessary programming and setup procedure: Control Module References
Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
Check for brake system leaks.
