Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

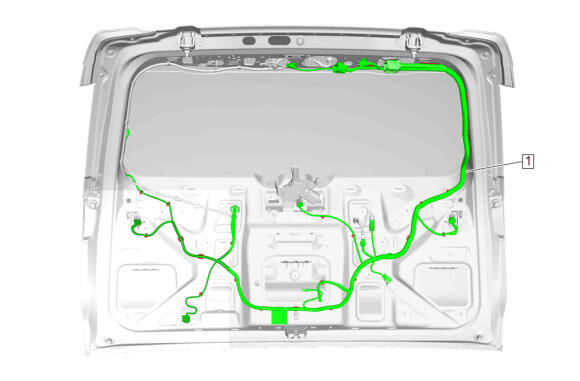

Liftgate Wiring Harness (1) - Install
Connect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

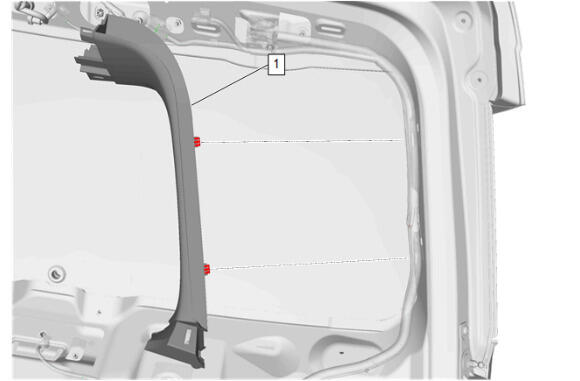

Liftgate Upper Side Trim Finish Panel- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

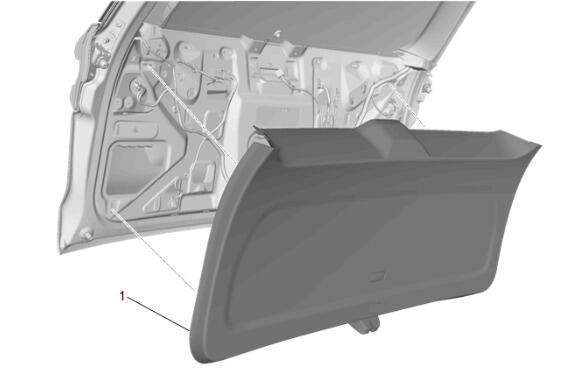

Liftgate Lower Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

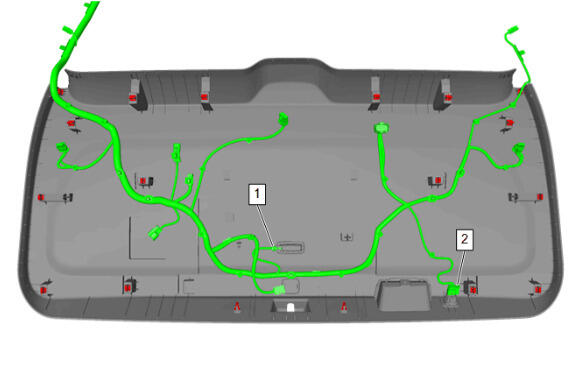

Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

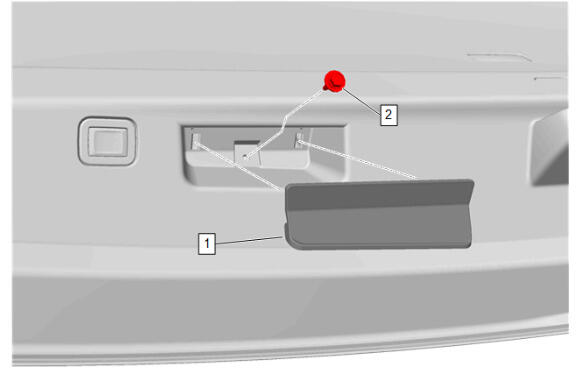

Liftgate Lower Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
Liftgate Inside Pull Handle Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

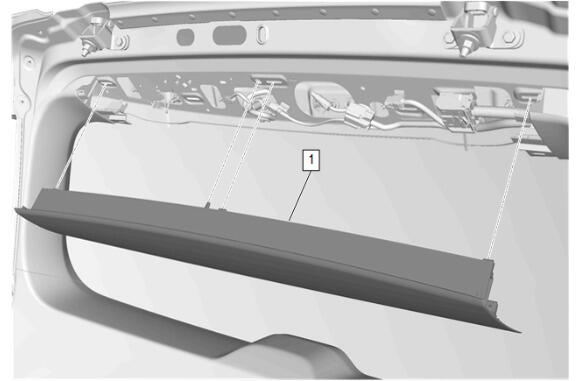

Liftgate Upper Center Trim Finish Panel (1) - Install
