Installation Procedure

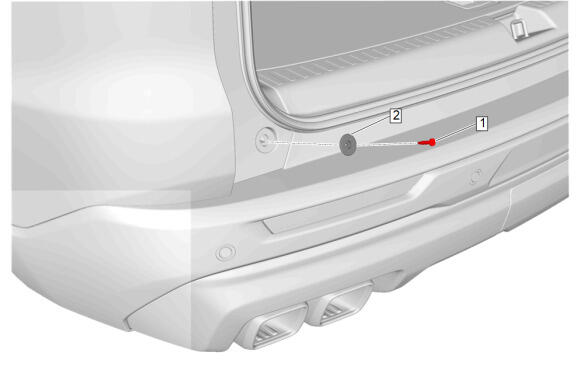

  1. GM6475641Courtesy of GENERAL MOTORS COMPANY

    Liftgate Adjust Bumper Pad (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Liftgate Bumper Pad Bolt (1) - Install and tighten - Fastener Specifications
