Installation Procedure

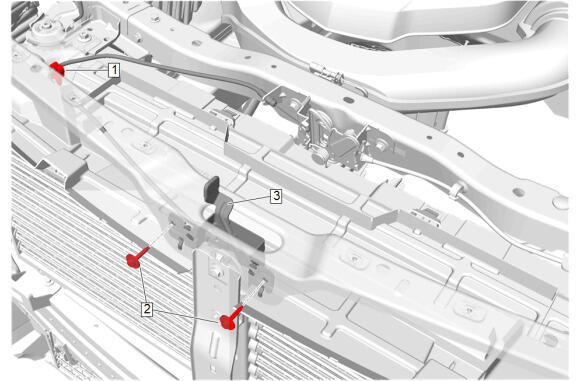

  1. GM6397998Courtesy of GENERAL MOTORS COMPANY

    Hood Secondary Latch Release Cable (3) - Install

    2. CAUTION:

    Fastener Caution

  2. Hood Secondary Latch Release Handle Bolt (2) - Install and tighten [2x] - Fastener Specifications
  3. Hood Primary Latch Release Cable (3) @ Hood Secondary Latch Release Cable Retainer (1) - Install

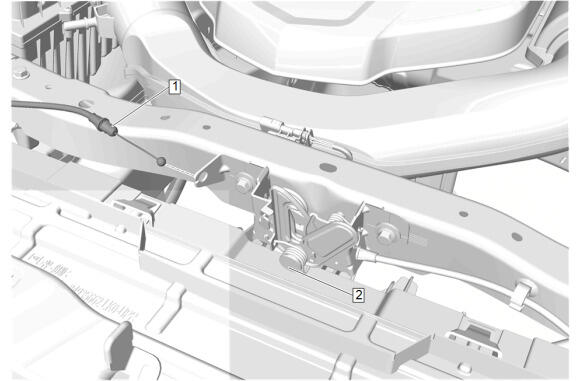

  4. GM6397937Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable (1) @ Hood Primary and Secondary Latch (2) - Connect

  5. Install the hood secondary latch release cable (1) into the retainer.
  6. GM6465587Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (AT4)
