Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

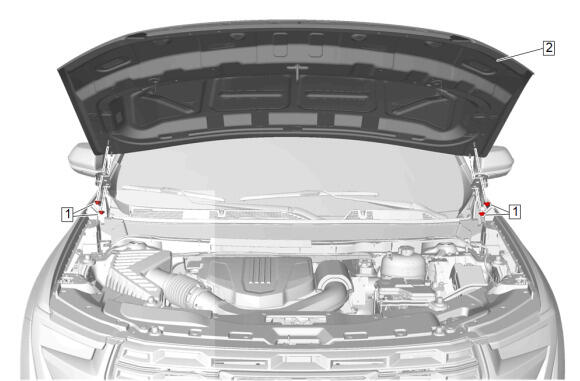

With the aid of an assistant, install the hood. (2)

CAUTION:

Fastener Caution

Hood Hinge Nut (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

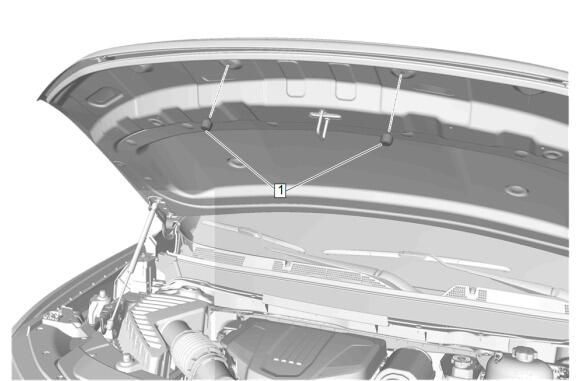

Hood Front Bumper (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Hood Strut- Left Side and Right Side (1) - Install [2x]
Install the 2 metal clips to each end of the hood strut (1).
Remove the hood support.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the four lower integral tabs are secure to the hood.

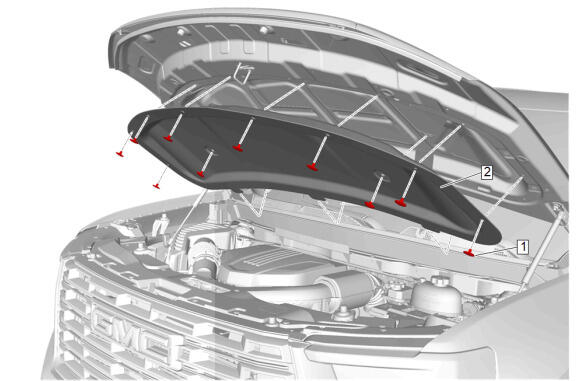

Hood Insulator (2) - Install
Hood Insulator Retainer (1) - Install [10x]
Courtesy of GENERAL MOTORS COMPANY

Hood Front Edge Weatherstrip (2) - Install
If necessary, adjust the hood. - Hood Adjustment
