Installation Procedure

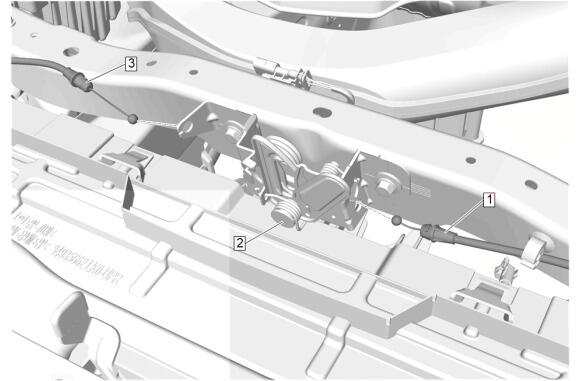

  1. GM6397932Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable (1) @ Hood Primary and Secondary Latch (2) - Connect

  2. Install the hood primary latch release cable (1) into the retainer.

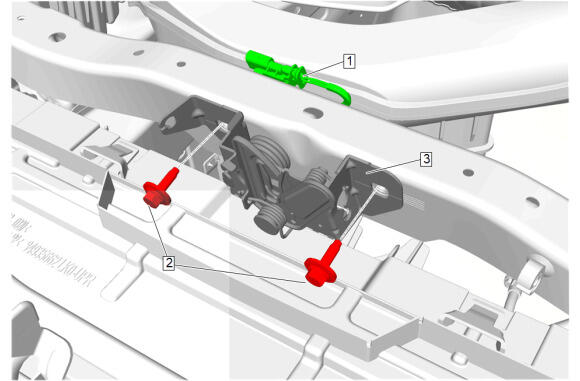

  3. GM6397996Courtesy of GENERAL MOTORS COMPANY

    Hood Primary and Secondary Latch (3) - Install

    4. CAUTION:

    Fastener Caution

  4. Hood Primary and Secondary Latch Bolt (2) - Install and tighten [2x] - Fastener Specifications
  5. Connect the electrical connector and install the wiring harness retainers as necessary. (1)
  6. GM6397932Courtesy of GENERAL MOTORS COMPANY

    Hood Secondary Latch Release Cable (3) @ Hood Primary and Secondary Latch (2) - Connect

  7. Install the hood secondary latch release cable (3) into the retainer.
  8. GM6455327Courtesy of GENERAL MOTORS COMPANY

    Intake Air Splash Shield (2) - Install

  9. Intake Air Splash Shield Retainer (1) - Install [12x]
