Installation Procedure

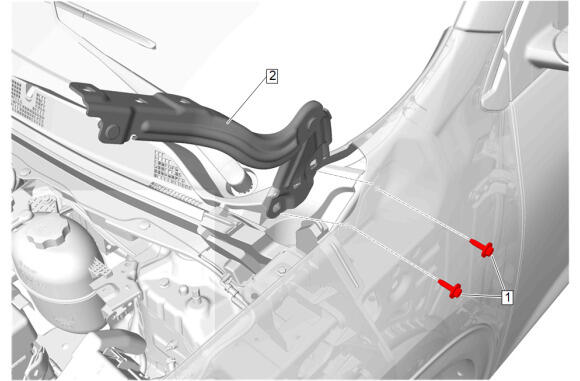

  1. GM6465639Courtesy of GENERAL MOTORS COMPANY

    Hood Hinge (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Hood Hinge Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. GM6465644Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the hood. (2)

    4. CAUTION:

    Fastener Caution

  4. Hood Hinge Nut (1) - Install and tighten [4x] - Fastener Specifications
  5. GM6465643Courtesy of GENERAL MOTORS COMPANY

    Hood Front Bumper (1) - Install [2x]

  6. GM6465645Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Hood Strut- Left Side and Right Side (1) - Install [2x]

  7. Install the 2 metal clips to each end of the hood strut (1).
  8. Remove the hood support.
  9. GM6465640Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the four lower integral tabs are secure to the hood.

    Hood Insulator (2) - Install

  10. Hood Insulator Retainer (1) - Install [10x]
  11. GM6465637Courtesy of GENERAL MOTORS COMPANY

    Hood Front Edge Weatherstrip (2) - Install

  12. If necessary, adjust the hood. - Hood Adjustment
