Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:

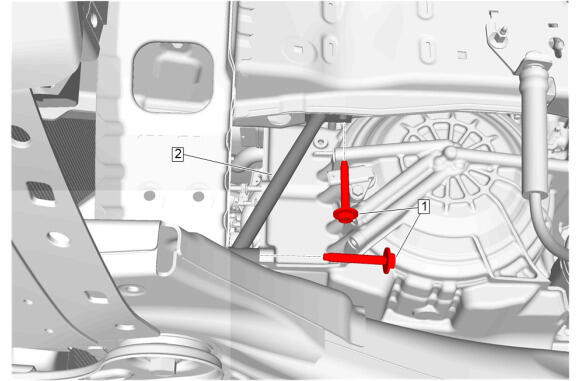

Left side shown, right side similar.

Front End Sheet Metal Diagonal Brace (2) - Install

CAUTION:

Refer to Fastener Caution .

Front Compartment Side Rail Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner (1) - Install - Front Wheelhouse Liner Replacement
