Installation Procedure
- Connect the electrical connector.

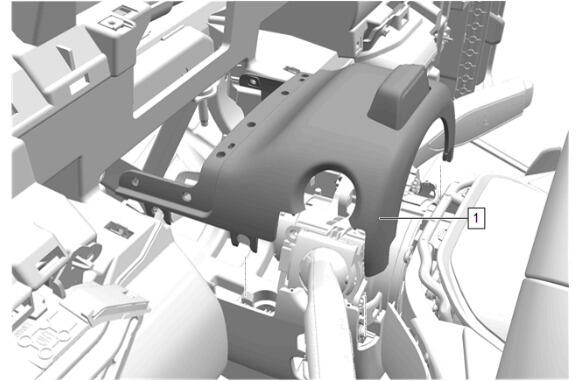

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
Instrument Panel Cluster Trim Plate (2) - Install
- Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect the electrical connector.
- Instrument Panel Cluster Control Module (2) - Install
- Instrument Cluster Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connectors.
- Instrument Panel Trim Plate Applique - Right Side (1) - Install
Instrument Panel Center Trim Pad (1) - Install
Instrument Panel Trim Plate Applique - Left Side (1) - Install
Instrument Panel Trim Pad - Left Side (1) - Install
Instrument Panel Upper Trim Panel Bracket (2) - Install
- Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [10x] - Fastener Specifications
Connect the electrical connector.
- Radio Control (2) - Install
- Radio Control Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Front Floor Console (1) - Install - Front Floor Console Removal and Installation
Forward Collision Alert Display (2) - Install
- Forward Collision Alert Display Bolt (1) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Instrument Cluster Hood (2) - Install
- Instrument Panel Upper Trim Pad Bolt (1) - Install and tighten [5x] - Fastener Specifications
Connect the electrical connector.
- Radio Front Center Speaker (2) - Install
- Radio Front Center Speaker Bolt (1) - Install and tighten [2x] - Fastener Specifications
Radio Front Center Speaker Grille (1) - Install
CAUTION:
Refer to Fastener Caution
