Installation Procedure

Connect the electrical connector
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Extension (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Radio Front Speaker Grille (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

CAUTION:

Refer to Fastener Caution

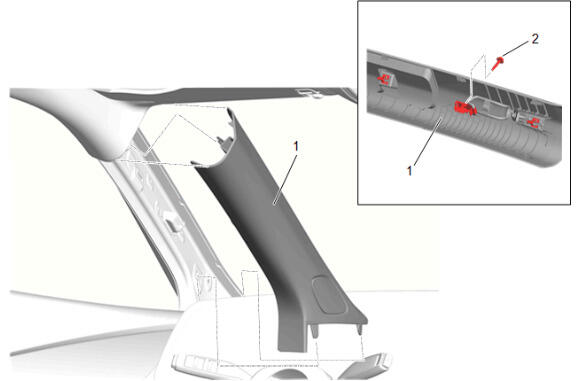

Windshield Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
Align the retainer clips with the slots in the A pillar and press the windshield garnish molding (1) into place.
Windshield Garnish Molding (1) - Install
Enable the SIR System. SIR Disabling and Enabling
