Installation Procedure

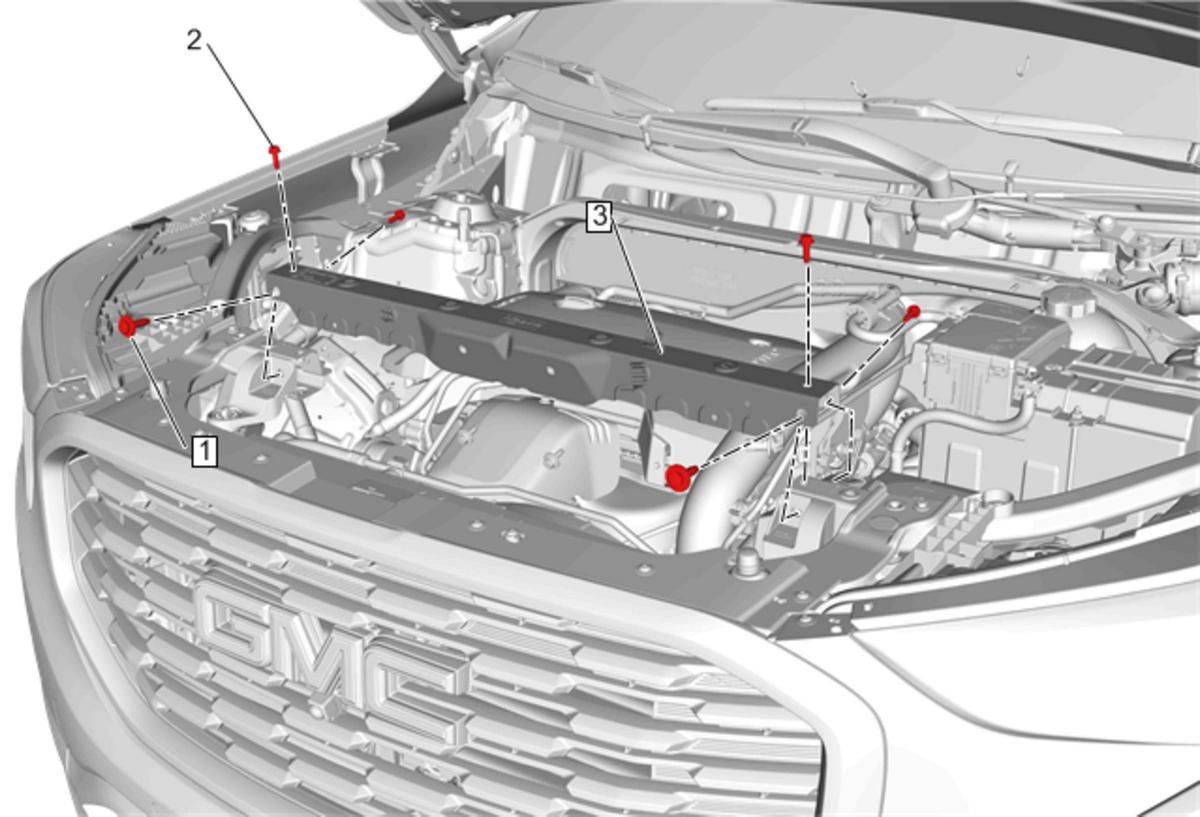

  1. GM4674107Courtesy of GENERAL MOTORS COMPANY

    Front End Upper Tie Bar (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front End Upper Tie Bar Bolt (2) - Install and tighten [4x] 9 N.m (80 lb in)
  3. Radiator Upper Mount Bracket Bolt (1) - Install and tighten [2x] 14 N.m (124 lb in)

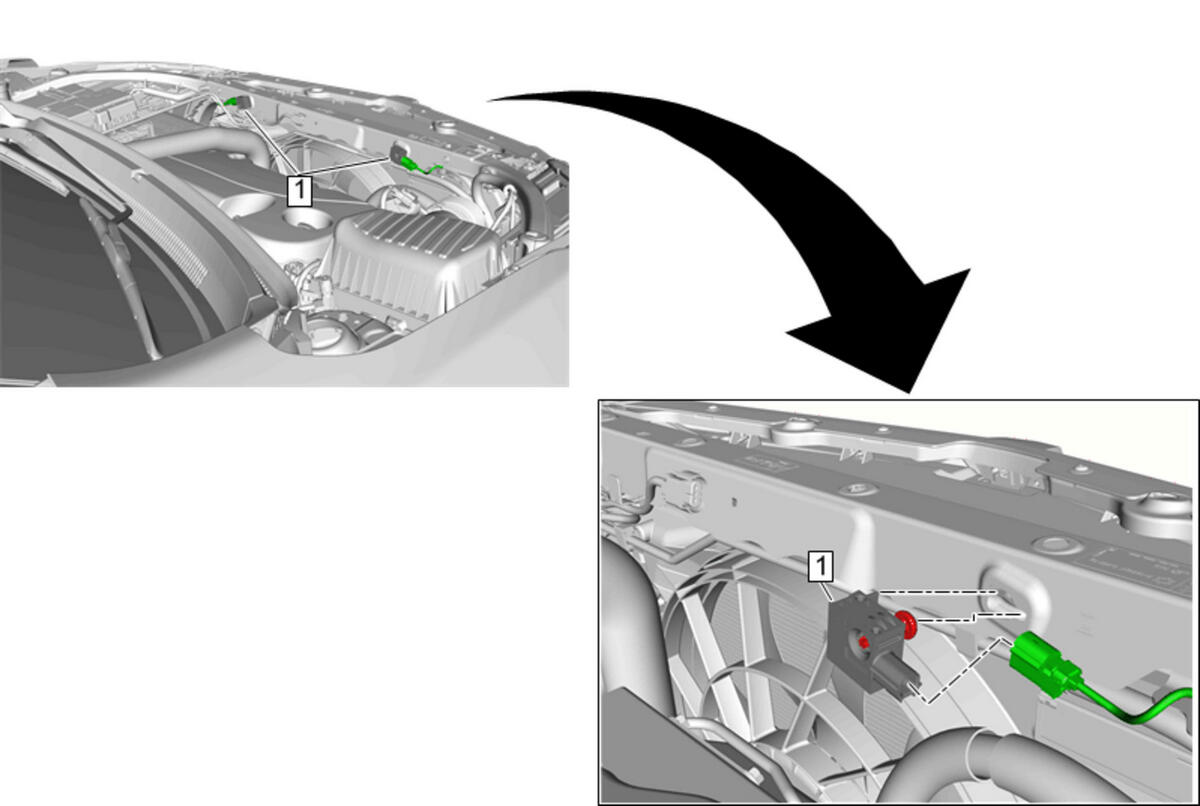

  4. GM4602363Courtesy of GENERAL MOTORS COMPANY

    Airbag Front End Discriminating Sensor (1) - Install and tighten [2x] 7.5 N.m (66 lb in)

  5. Connect the electrical connectors and install the wiring harness retainers as necessary.
  6. Hood Primary and Secondary Latch - Install - Hood Primary and Secondary Latch Replacement (Terrain)
