Hood Primary and Secondary Latch Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

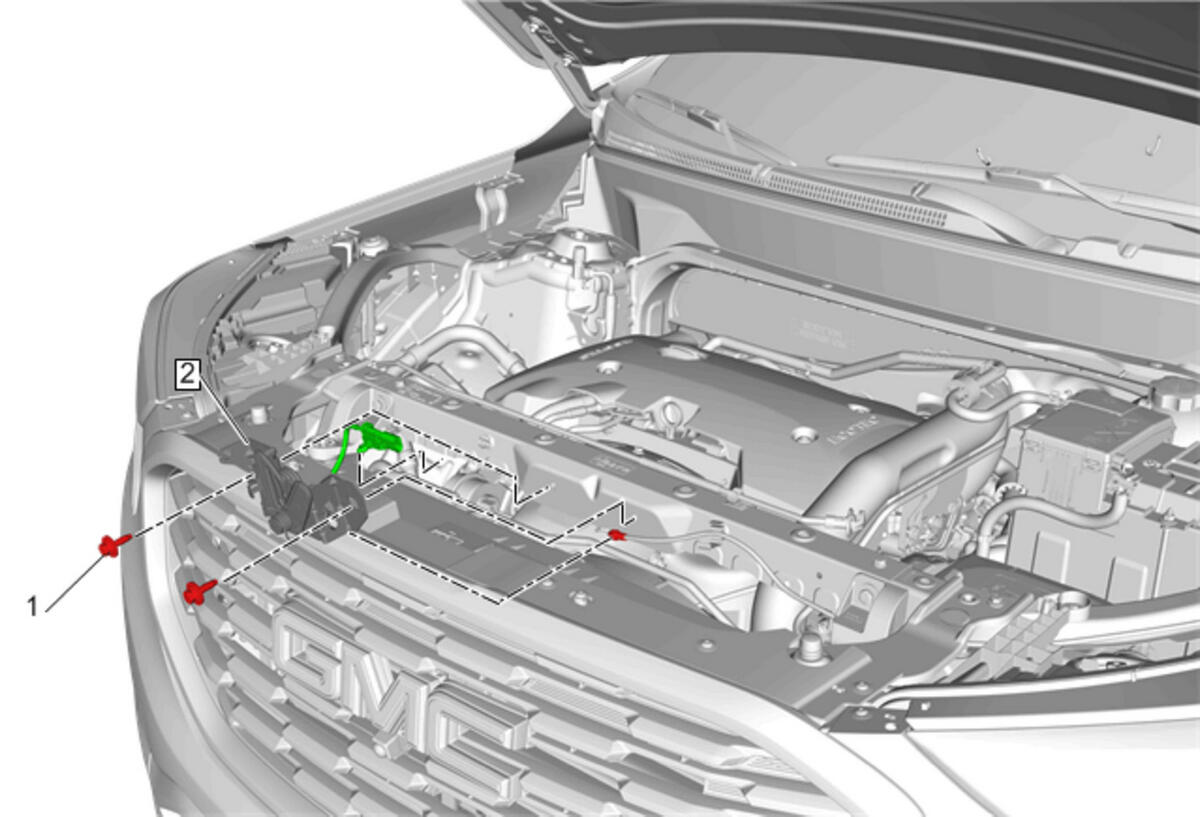

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Hood Secondary Latch Release Cable Replacement Mark the position of the hood latch with a grease pencil.
1	Hood Primary Latch Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 13 N.m (115 lb in)
2	Hood Primary and Secondary Latch Procedure Disconnect the release cable from the hood primary latch. Disconnect the electrical connector. Align the hood primary latch if necessary.

Callout

Component Name

Preliminary Procedures

Hood Primary Latch Bolt [2x]

CAUTION:

Tighten
13 N.m (115 lb in)

Hood Primary and Secondary Latch

Procedure
