Rear End Spoiler Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

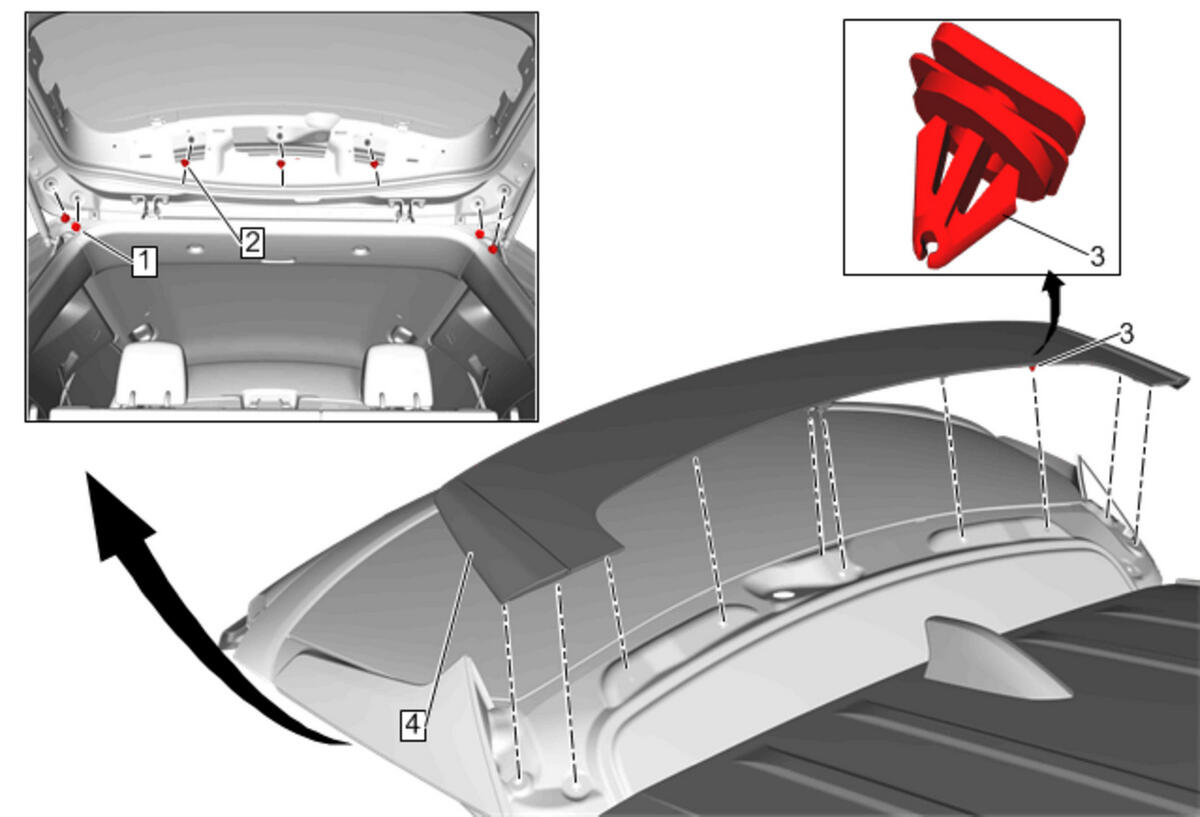

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Open and support the liftgate. Liftgate Upper Side Trim Finish Panel Replacement
1	Rear End Spoiler Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Rear End Spoiler Nut [3x] Tighten 6 N.m (53 lb in)
3	Rear End Spoiler Retainer [2x]
4	Rear End Spoiler Procedure Using the appropriate tool, release the 2 rear end spoiler retainers. Disconnect the electrical connector. Disconnect the rear window washer hose from the rear window washer nozzle. Transfer components as necessary.
