Liftgate Upper Side Trim Finish Panel Replacement
Liftgate Upper Side Trim Finish Panel Replacement
Courtesy of GENERAL MOTORS COMPANY
NOTE:

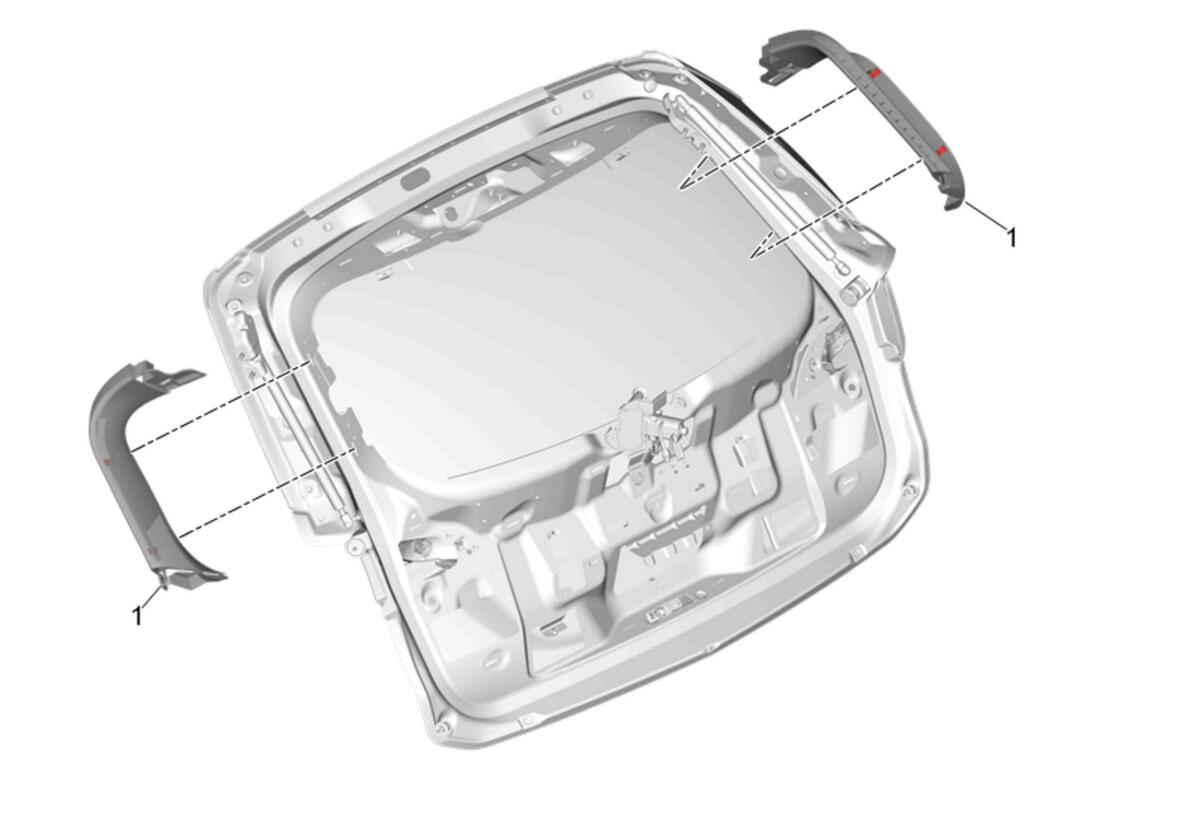

Callouts in the following chart represent components shown in graphic above.
Callout
Component Name
Preliminary Procedures
Liftgate Upper Center Trim Finish Panel Replacement
Liftgate Lower Trim Finish Panel Replacement
1
Liftgate Upper Side Trim Finish Panel [2x]
Procedure
Use a flat bladed plastic trim tool.
