Liftgate Replacement (Equinox)

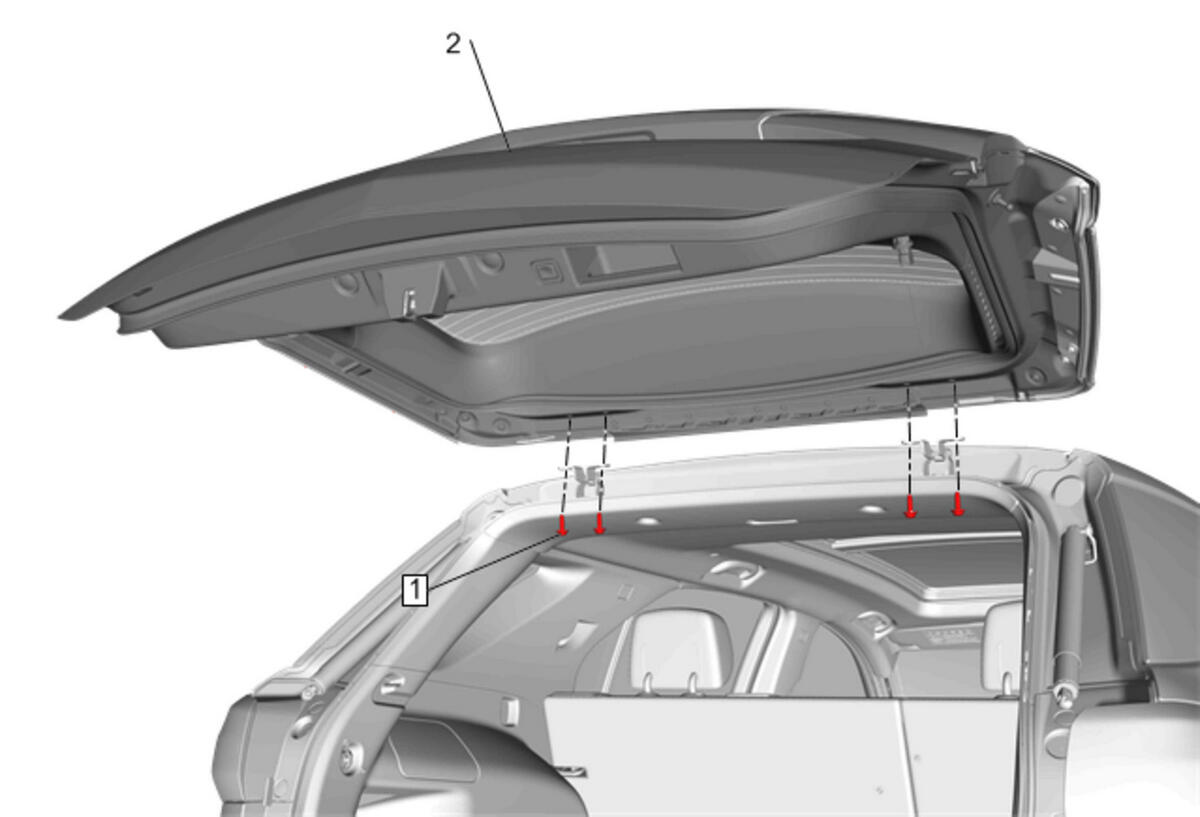

GM4568282Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Preliminary Procedures

  1. Liftgate Strut Replacement (Equinox)
  2. Rear End Spoiler Replacement (Equinox)
  3. Liftgate Upper Center Trim Finish Panel Replacement
1 Liftgate Hinge Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Liftgate

Procedure

  1. With the aid of an assistant, remove the liftgate.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
