Passenger Door Harness Routing

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

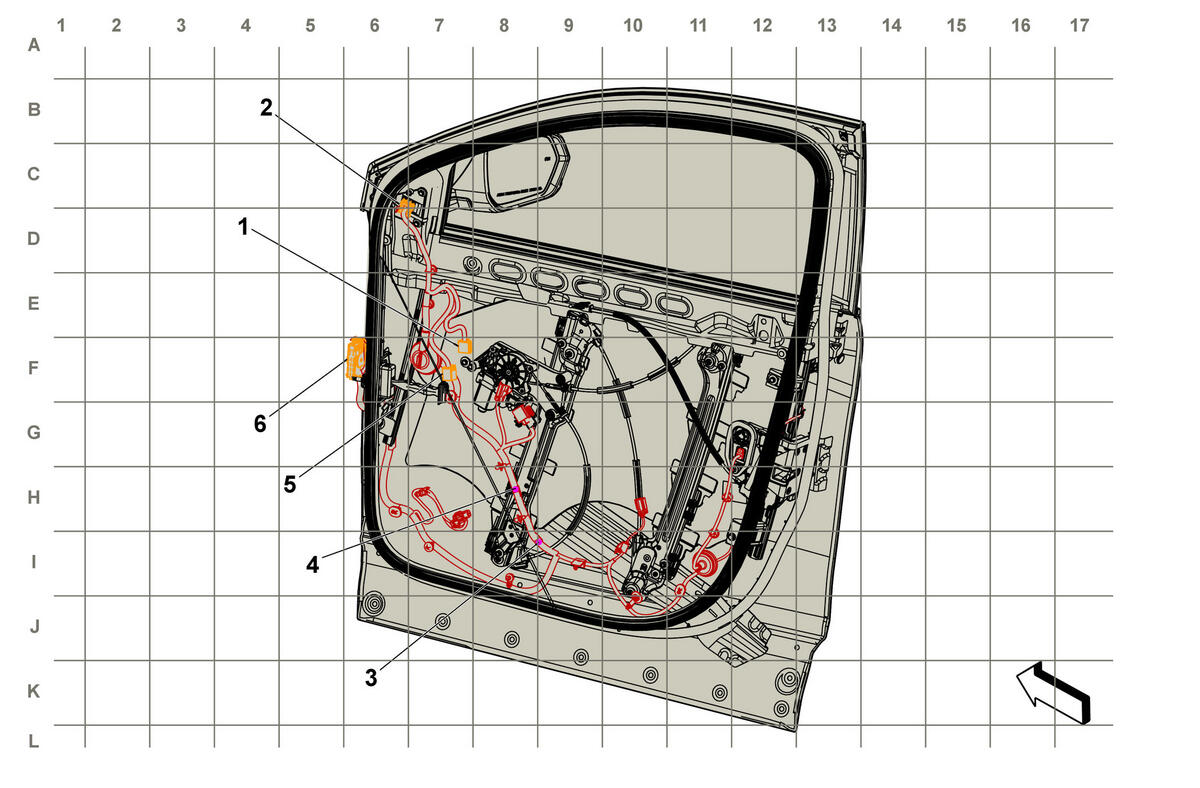

GM4589693Courtesy of GENERAL MOTORS COMPANY
Passenger Door Harness Routing

Harness Name Callout
X605 Passenger Door Harness to Passenger Door Trim Harness X605 Passenger Door Harness to Passenger Door Trim Harness 1
X610 Passenger Door Harness to Passenger Outside Rearview Mirror X610 Passenger Door Harness to Passenger Outside Rearview Mirror 2
J601 Passenger Door Harness 3
J600 Passenger Door Harness 4
X606 Passenger Door Harness to Passenger Door Trim Harness X606 Passenger Door Harness to Passenger Door Trim Harness 5
X600 Passenger Door Harness to Body Harness X600 Passenger Door Harness to Body Harness 6
