Liftgate Harness Routing (Chevrolet)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

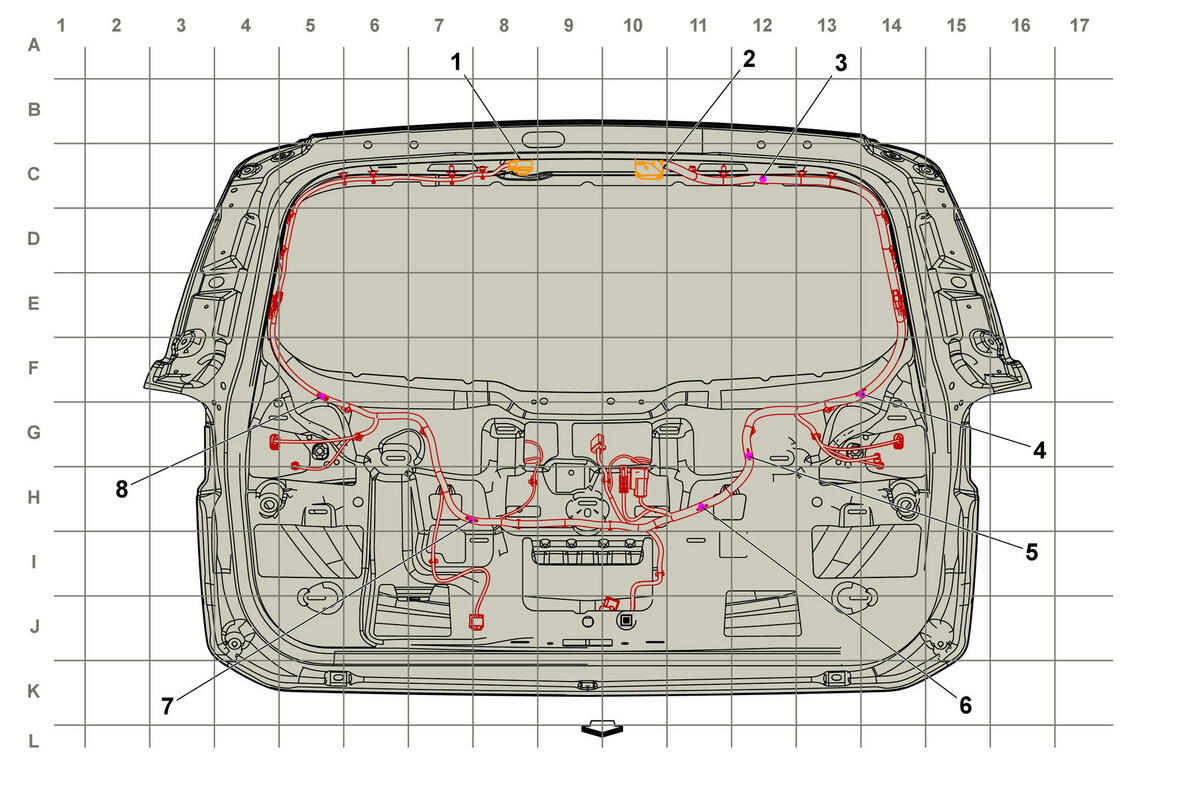

Liftgate Harness Routing (Chevrolet)
| Harness Name | Callout |
|---|---|
| X901 Body Harness to Liftgate Harness X901 Body Harness to Liftgate Harness (-(UV2/UVB)) | 1 |
| X900 Body Harness to Liftgate Harness X900 Body Harness to Liftgate Harness | 2 |
| J900 Liftgate Harness | 3 |
| J901 Liftgate Harness | 4 |
| J903 Liftgate Harness | 5 |
| J904 License Lamp Harness | 6 |
| J905 Liftgate Harness | 7 |
