Headliner Harness Routing
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

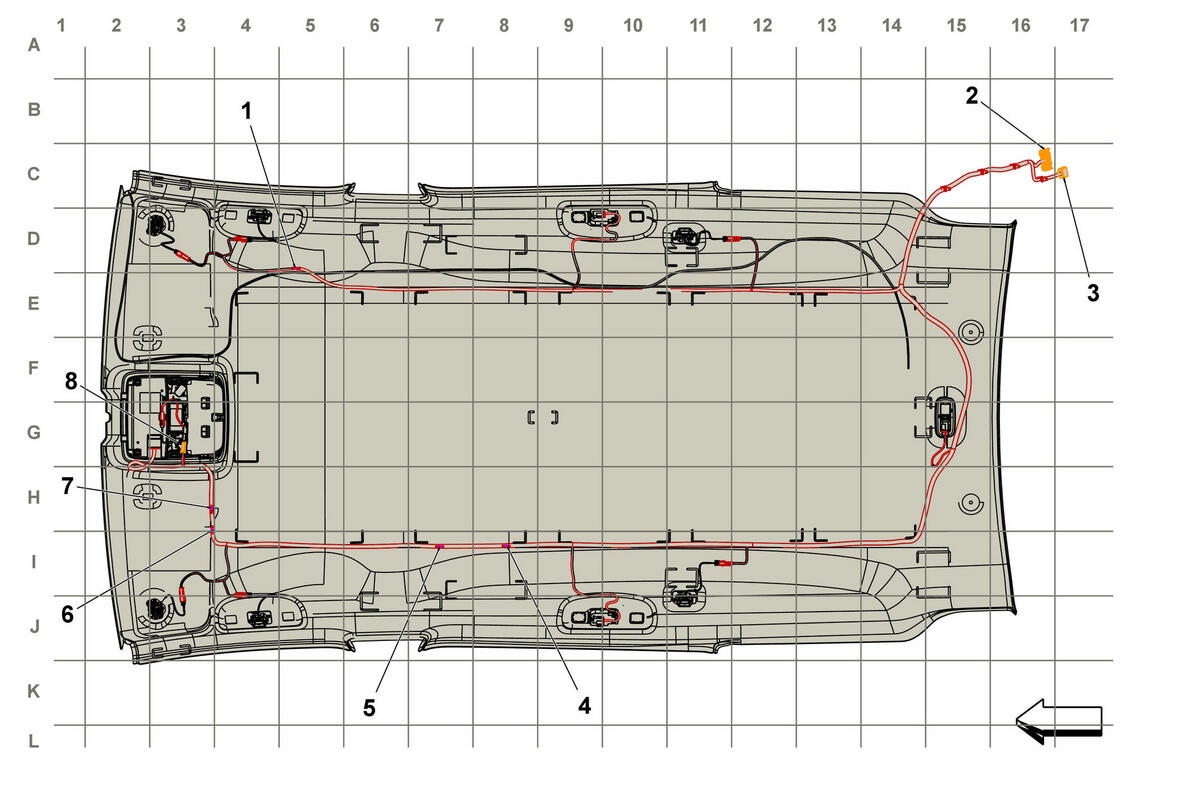

Headliner Harness Routing
| Harness Name | Callout |
|---|---|
| J349 Headliner Harness | 1 |
| X404 Headliner Harness to Body Harness X404 Headliner Harness to Body Harness | 2 |
| X403 Headliner Harness to Body Harness X403 Headliner Harness to Body Harness | 3 |
| J348 Headliner Harness | 4 |
| J347 Headliner Harness | 5 |
| J346 Headliner Harness (UG1) | 6 |
| J345 Headliner Harness (UG1) | 7 |
| X303 Headliner Harness to Universal Garage Door Opener Module Jumper Harness X303 Headliner Harness to Universal Garage Door Opener Module Jumper Harness (UG1) | 8 |
