X404 Headliner Harness to Body Harness
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

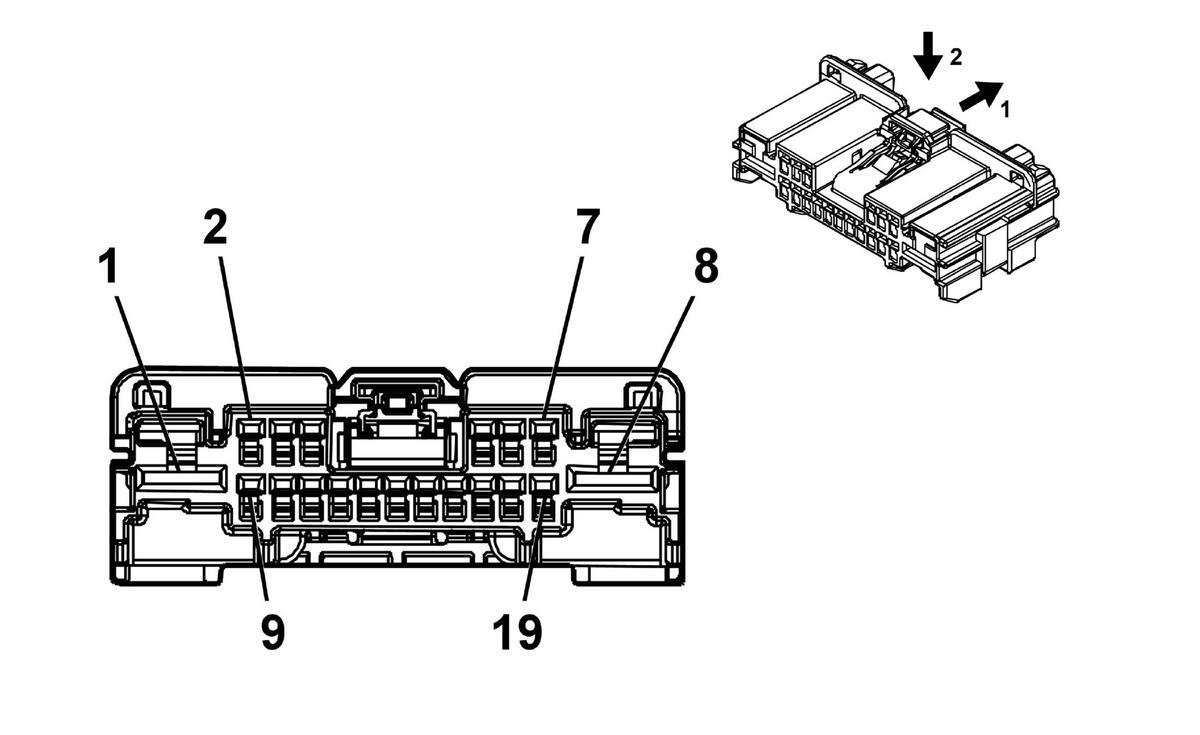

Connector Part Information
- Harness Type: Headliner Harness
- OEM Connector: 13526846
- Service Connector: Not Available
- Description: 19 -Way F 1.2, 6.3 Series (GY)
|

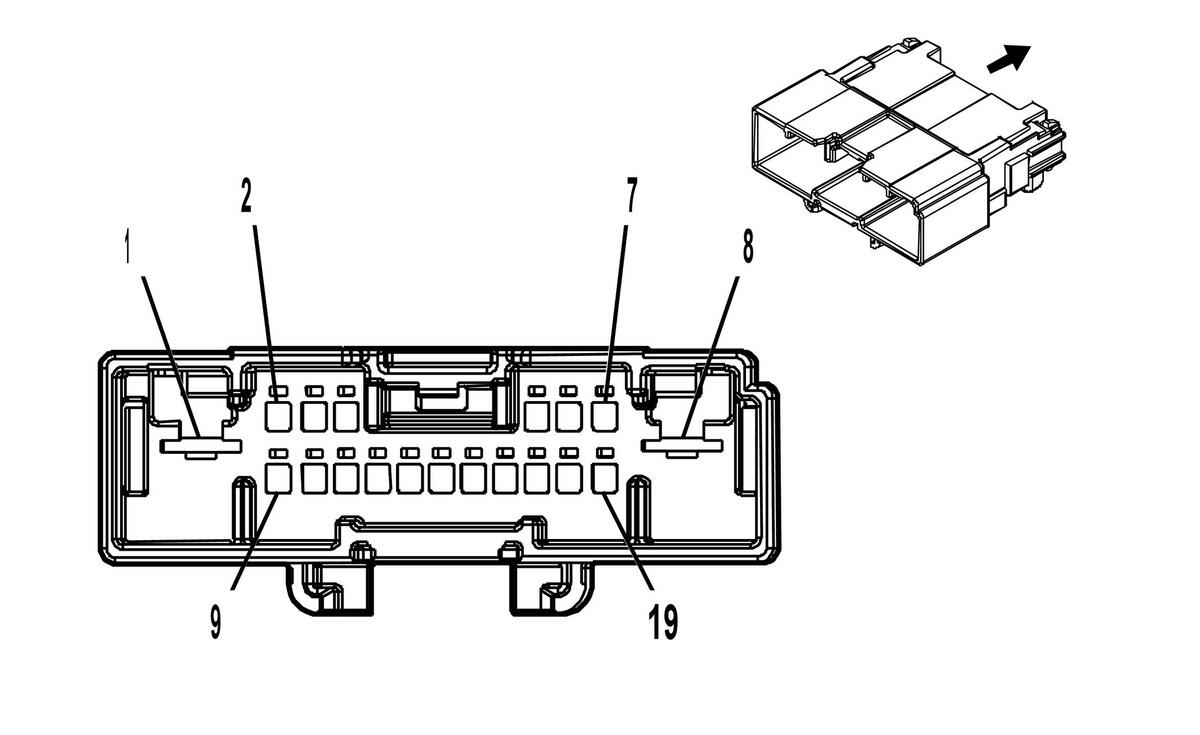

Connector Part Information
- Harness Type: Body Harness
- OEM Connector: 13597289
- Service Connector: Not Available
- Description: 19 -Way M 1.2, 6.3 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
84962854 |
J-35616-16 (LT GN) |
J-38125-215A |
| II |
Pending |
J-35616-16 (LT GN) |
J-38125-215A |
| III |
Pending |
J-35616-42 (RD) |
J-38125-11A |
| IV |
13575825 |
J-35616-43 (RD) |
J-38125-11A |
| V |
19330703 |
J-35616-17 (LT GN) |
J-38125-215A |
| VI |
19352075 |
J-35616-17 (LT GN) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
2050 |
III |
- |
Ground |
1 |
0.75 |
BK |
2050 |
IV |
- |
| 2 |
0.35 |
BU / GY |
3032 |
II |
C3U |
Front Sunshade Switch Signal |
2 |
0.35 |
BU / GY |
3032 |
V |
C3U |
| 3 |
0.35 |
BU / VT |
5027 |
II |
- |
Sunroof Switch Serial Data 1 Signal |
3 |
0.35 |
BU / VT |
5027 |
V |
C3U |
| 4 |
0.35 |
BK / GY |
128 |
II |
- |
Sunroof Switch Low Reference |
4 |
0.35 |
BK / GY |
128 |
V |
C3U |
| 5 |
0.35 |
WH |
6816 |
II |
- |
Indicator Dimming Control |
5 |
0.35 |
WH |
6816 |
V |
- |
| 6 |
0.5 |
GY |
157 |
I |
- |
Interior Lamp Control |
6 |
0.5 |
GY |
157 |
VI |
- |
| 7 |
0.35 |
BU / GY |
4672 |
II |
- |
Dome Lamp Off Indicator Control |
7 |
0.35 |
BU / GY |
4672 |
V |
- |
| 8 |
0.75 |
BK |
2050 |
III |
AL0 |
Ground |
8 |
0.75 |
BK |
2050 |
IV |
- |
| 9 |
0.35 |
BK / BU |
5307 |
II |
C3U |
Front Sunshade Switch Low Reference |
9 |
0.35 |
BK / BU |
5307 |
V |
C3U |
| 10 |
0.35 |
RD / BU |
2540 |
II |
- |
Battery Positive Voltage |
10 |
0.35 |
RD / BU |
2540 |
V |
- |
| 11 |
0.35 |
BU |
655 |
II |
- |
Cellular Telephone Microphone Signal |
11 |
0.35 |
BU |
655 |
V |
- |
| 12 |
0.35 |
BK / BN |
654 |
II |
- |
Cellular Telephone Microphone Low Reference |
12 |
0.35 |
BK / BN |
654 |
V |
- |
| 13 |
0.5 |
WH / BN |
6815 |
I |
- |
Inadvertent Load Control |
13 |
0.5 |
WH / BN |
6815 |
VI |
- |
| 14 |
0.35 |
GY / GN |
328 |
II |
- |
Interior Lamp Defeat Switch Signal |
14 |
0.35 |
GY / GN |
328 |
V |
- |
| 15 |
0.35 |
GY |
156 |
II |
- |
Courtesy Lamp Switch Signal |
15 |
0.35 |
GY |
156 |
V |
- |
| 16 |
0.35 |
YE |
6817 |
II |
- |
LED Backlight Dimming Control 1 |
16 |
0.35 |
YE |
6817 |
V |
- |
| 17 |
0.35 |
GN / GY |
737 |
II |
- |
Rear Compartment Courtesy Lamp Control |
17 |
0.35 |
GN / GY |
737 |
V |
- |
| 18 |
0.35 |
VT / YE |
7043 |
II |
- |
Microphone [+] Signal |
18 |
0.35 |
VT / YE |
7043 |
V |
(IOS/IOT/IOU)-UE1 |
| 19 |
0.35 |
BU / BK |
7044 |
II |
- |
Microphone [-] |
19 |
0.35 |
BU / BK |
7044 |
V |
(IOS/IOT/IOU)-UE1 |
