Engine Harness Routing - Left Front of Engine (LYX)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Engine Harness Routing - Left Front of Engine (LYX)

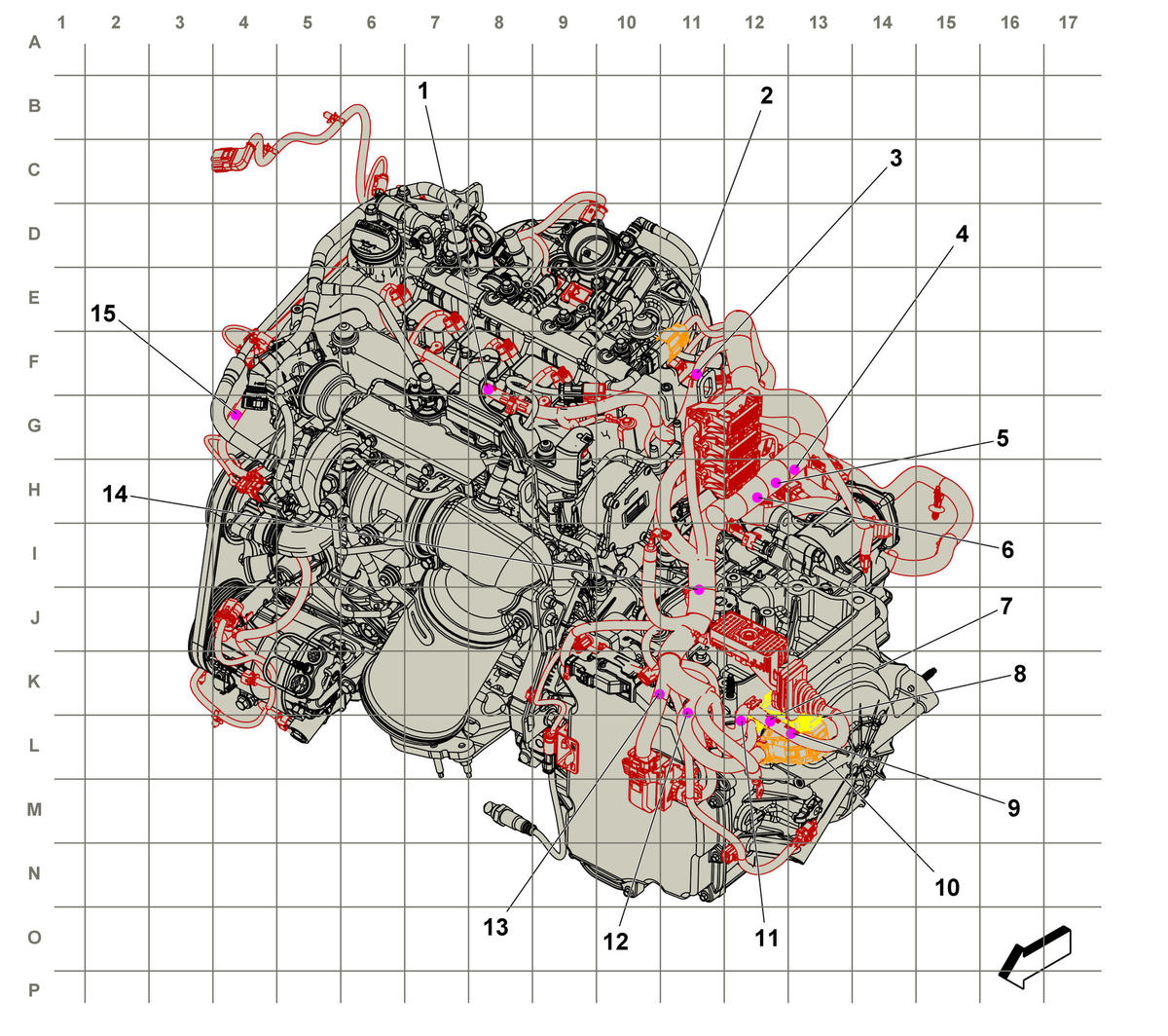

| Harness Name | Callout |
|---|---|
| J113 Engine Harness | 1 |
| X160 Engine Harness to Fuel Injector Harness (LTG/LYX) X160 Engine Harness to Fuel Injector Harness (LYX) | 2 |
| J116 Engine Harness | 3 |
| J123 Engine Harness | 4 |
| J119 Engine Harness | 5 |
| J121 Engine Harness | 6 |
| J122 Engine Harness | 7 |
| X107 Engine Harness to Body Harness X107 Engine Harness to Body Harness | 8 |
| J111 Engine Harness | 9 |
| X106 Engine Harness to Body Harness X106 Engine Harness to Body Harness | 10 |
| J112 Engine Harness | 11 |
| J115 Engine Harness | 12 |
| J117 Engine Harness | 13 |
| J118 Engine Harness | 14 |
| J114 Engine Harness | 15 |
