X106 Engine Harness to Body Harness

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

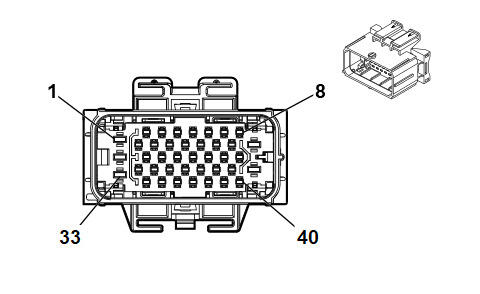

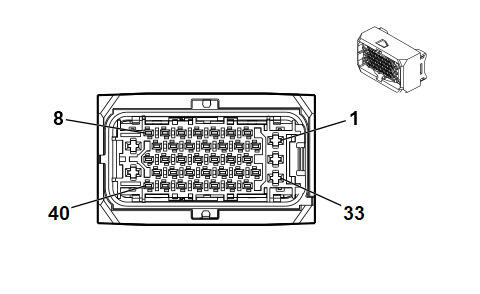

Connector Part Information Harness Type: Engine Harness OEM Connector: 13533797 Service Connector: Not Available Description: 40 -Way F 150, 280 CTS Series, Sealed (BK)	Connector Part Information Harness Type: Body Harness OEM Connector: 13533802 Service Connector: Not Available Description: 40 -Way M 1.5 TTS, 2.8 DC2 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not Available	No Tool Required	Not Available
II	Pending	J-35616-14 (GN)	J-38125-215A
III	Pending	J-35616-35 (VT)	J-38125-212
IV	Pending	J-35616-35 (VT)	J-38125-215A
V	13575574	J-35616-5 (PU)	J-38125-36
VI	Not Available	No Tool Required	Not Available
VII	Pending	J-35616-3 (GY)	EL-38125-560A
VIII	Pending	J-35616-34 (YE)	EL-38125-560A
IX	Pending	J-35616-5 (PU)	J-38125-215A

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	1.5	RD / GN	2173	III	-	12V Regulated Supply Voltage 2	1	1.5	RD / GN	2173	V	KL9
2	0.5	GN / VT	4621	II	-	Engine Control Module LIN Bus 1	2	0.35	GN / VT	4621	VIII	KL9+(VTI)
3	0.5	BU	2500	II	-	High Speed GMLAN Serial Data [+] 1	3	0.35	BU	2500	VIII	-
4	0.5	WH	2501	II	-	High Speed GMLAN Serial Data [-] 1	4	0.35	WH	2501	VIII	-
5	0.5	BU / BK	7493	II	-	High Speed GMLAN Serial Data [+] 3	5	0.35	BU / BK	7493	VIII	-
6	0.5	WH	7494	II	-	High Speed GMLAN Serial Data [-] 3	6	0.35	WH	7494	VIII	-
7	0.5 0.5 0.5	WH / RD WH / RD WH / RD	480 5381 5381	II II II	(LYX)+(E88) E80+LYX LTG	Engine Control Vehicle Sensors 5 Volt Reference 1 Brake Position Sensor 5V Reference Brake Position Sensor 5V Reference	7	0.35	WH / RD	5381	VIII	-
8	0.5 0.5 0.5	BK / GN BK / YE BK / YE	580 5382 5382	II II II	(LYX)+(E88) E80+LYX LTG	Engine Control Sensors Low Reference 2 Brake Position Sensor Low Reference Brake Position Sensor Low Reference	8	0.35	BK / YE	5382	VIII	-
9	0.5	WH / GN	5380	II	-	Brake Position Sensor Signal	9	0.35	WH / GN	5380	VIII	-
10	0.5	BK / BU	1271	II	-	Accelerator Pedal Position Low Reference 1	10	0.35	BK / BU	1271	VII	-
11	0.5	BK / VT	1272	II	-	Accelerator Pedal Position Low Reference 2	11	0.35	BK / VT	1272	VII	-
12	0.5	YE / WH	1161	II	-	Accelerator Pedal Position Signal 1	12	0.35	YE / WH	1161	VII	-
13	0.5	GN / WH	1162	II	-	Accelerator Pedal Position Signal 2	13	0.35	GN / WH	1162	VII	-
14	0.5	WH / RD	1164	II	-	Accelerator Pedal Position 5V Reference 1	14	0.35	WH / RD	1164	VII	-
15	0.5	BN / RD	1274	II	-	Accelerator Pedal Position 5V Reference 2	15	0.35	BN / RD	1274	VII	-
16	2.5	BN / GN	3945	III	F48	All Wheel Drive Power Transfer Unit Motor Control B	16	2.5	BN / GN	3945	V	F48
17	2.5	VT / BN	3944	III	F48	All Wheel Drive Power Transfer Unit Motor Control A	17	2.5	VT / BN	3944	V	F48
18	0.5	BN / WH	419	II	-	Check Engine Indicator Control	18	0.35	BN / WH	419	VIII	-
19	0.5	WH / BU	6311	II	-	Cruise/ETC/TCC Brake Signal	19	0.35	WH / BU	6311	VIII	-
20	0.5	YE	5530	II	-	Hood Open Switch Signal	20	0.35	YE	5530	VIII	KL9
21	-	BU / WH	1937	I	-	Secondary Fuel Level Sensor Signal	21	-	BU / WH	1937	VI	-
22	-	BK / GN	580	I	-	Engine Control Sensors Low Reference 2	22	-	BK / GN	580	VI	-
23	-	BU / VT	1589	I	-	Primary Fuel Level Sensor Signal	23	-	BU / VT	1589	VI	-
24	-	BN / RD	7445	I	-	Fuel Line Pressure Sensor 5V Reference	24	-	BN / RD	7445	VI	-
25	-	BU / WH	7446	I	-	Fuel Pressure Sensor Signal	25	-	BU / WH	7446	VI	-
26	-	BK / GN	580	I	-	Engine Control Sensors Low Reference 2	26	-	BK / GN	580	VI	-
27	0.75	BU / BN	7573	II	-	A/C Compressor Solenoid Valve Control	27	0.35	BU / BN	7573	VIII	-
28	0.75	BU / YE	7574	II	-	A/C Compressor Solenoid Valve Control	28	0.35	BU / YE	7574	VIII	-
29	0.5	WH / VT	4108	II	-	Driver Mode Switch Signal	29	0.35	WH / VT	4108	VIII	(F48/EPH)
30	0.5	GY	4109	II	E80+LYX+(F48/EPH)	Driver Mode Switch 5V Reference	30	0.35	GY	4109	VIII	(F48/EPH)
31	-	YE / RD	2709	I	-	Fuel Tank Pressure Sensor 5V Reference	31	-	YE / RD	2709	VI	-
32	0.5 0.5 0.5	VT / GN VT / GN VT / GN	4320 3889 3889	III III IV	(LYX)+(E88) E80+LYX LTG	Powertrain Sensor Bus Enable Powertrain Sensor Bus Relay Control Powertrain Sensor Bus Relay Control	32	0.35 0.35 0.35 0.35 0.35 0.35	VT / GN GN / BU VT / GN GN / BU VT / GN GN / BU	4320 3889 4320 3889 4320 3889	IX IX IX IX IX IX	- (LTG/LYX)-NUG - (LTG/LYX)-NUG - (LTG/LYX)-NUG
33	0.5	GN / GY	465	III	-	Fuel Pump Primary Relay Control	33	0.35	GN / GY	465	IX	-
34 - 35	-	-	-	-	-	Not Occupied	34 - 35	-	-	-	-	-
36	0.5	VT / BU	6091	II	-	Crankshaft Position Sensor Replicated Signal	36	0.35	VT / BU	6091	VIII	-
37	0.5	VT / YE	5985	II	-	Accessory Wake-Up Serial Data	37	0.35	VT / YE	5985	VIII	-
38	0.5	BU / BN	4498	II	-	High Speed GMLAN Serial Data [+] 7	38	0.35	BU / BN	4498	VIII	-
39	0.5	WH	4499	II	-	High Speed GMLAN Serial Data [-] 7	39	0.35	WH	4499	VIII	-
40	0.5	YE / VT	4325	II	-	Starter Pinion Solenoid Actuator Relay Control	40	0.35	YE / VT	4325	VIII	KL9
