Engine Compartment Harness Routing - Left Side of the Engine Compartment
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

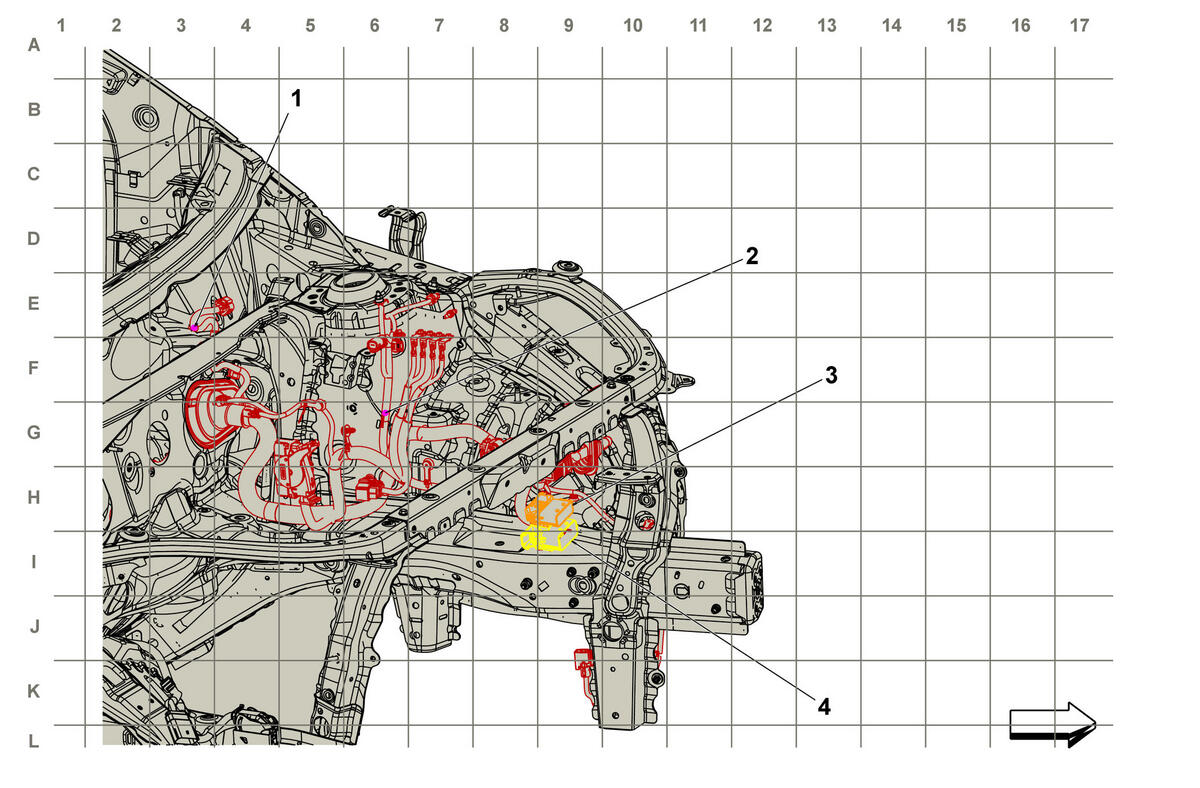

Engine Compartment Harness Routing - Left Side of the Engine Compartment
| Harness Name | Callout |
|---|---|
| J126 Body Harness | 1 |
| J128 Body Harness (KL9 with VTI) | 2 |
| X107 Engine Harness to Body Harness X107 Engine Harness to Body Harness | 3 |
| X106 Engine Harness to Body Harness X106 Engine Harness to Body Harness | 4 |
