Cooling Fan Harness Routing

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

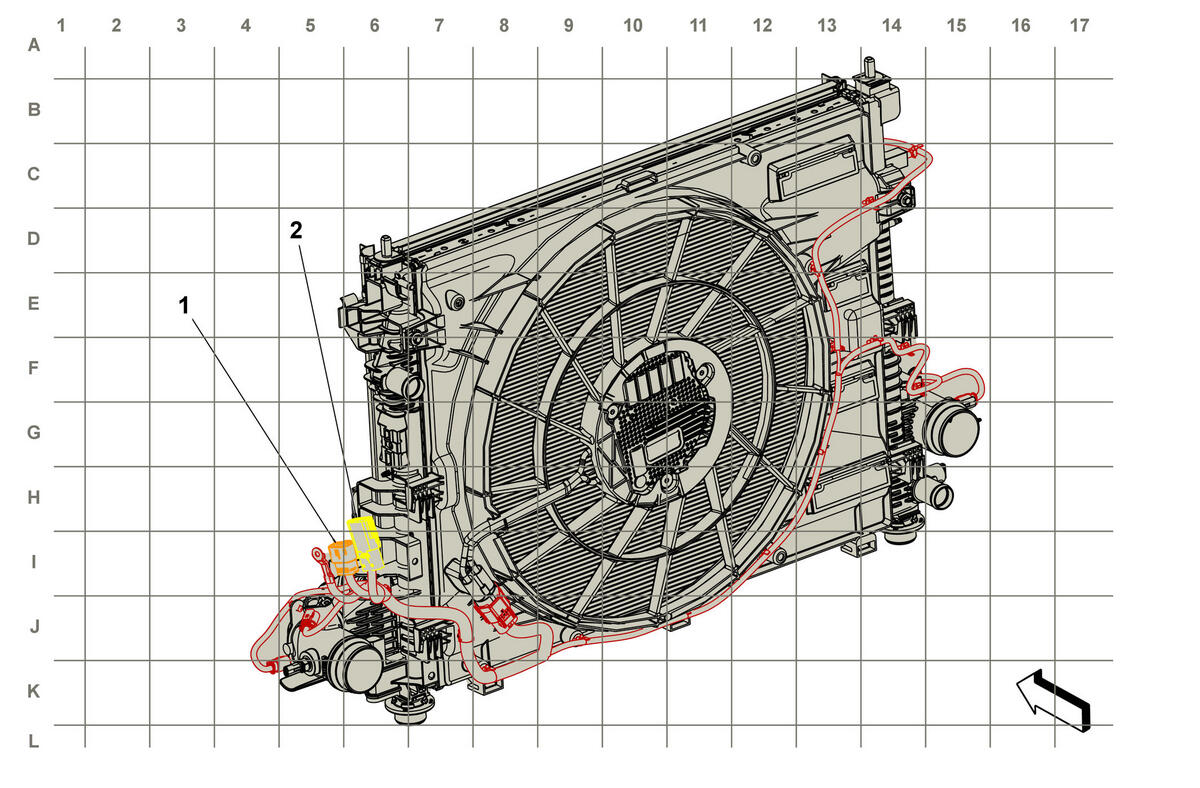

GM4586069Courtesy of GENERAL MOTORS COMPANY
Cooling Fan Harness Routing

Harness Name Callout
X104 Cooling Fan Harness to Forward Lamp Harness X104 Cooling Fan Harness to Forward Lamp Harness 1
X103 Forward Lamp Harness to Cooling Fan Harness X103 Forward Lamp Harness to Cooling Fan Harness 2
