Body Harness Routing - Left Front of the Passenger Compartment
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

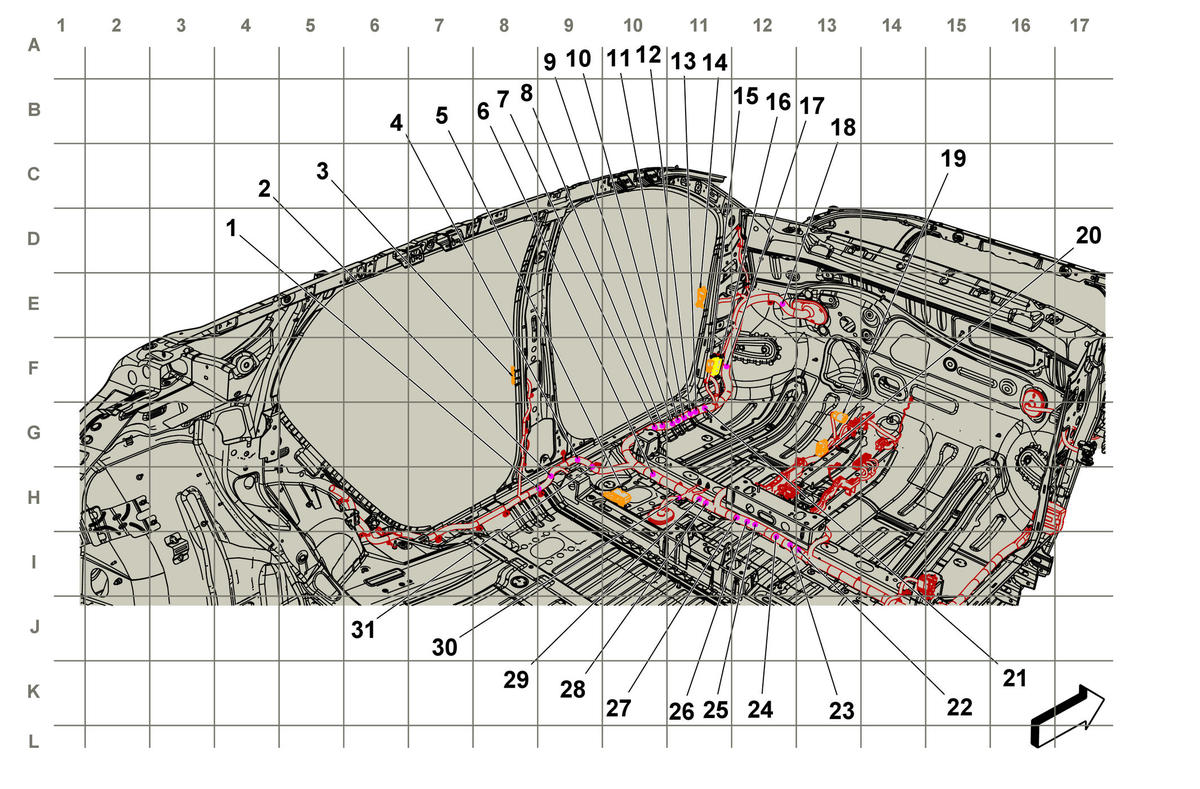

Body Harness Routing - Left Front of the Passenger Compartment
| Harness Name | Callout |
|---|---|
| J331 Body Harness | 1 |
| J330 Body Harness | 2 |
| X700 Left Rear Door Harness to Body Harness X700 Left Rear Door Harness to Body Harness | 3 |
| X310 Driver Seat Harness to Body Harness X310 Driver Seat Harness to Body Harness | 4 |
| J312 Body Harness | 5 |
| J309 Body Harness | 6 |
| J308 Body Harness | 7 |
| J307 Body Harness | 8 |
| J306 Body Harness | 9 |
| J305 Body Harness | 10 |
| J304 Body Harness (UGE) | 11 |
| J303 Body Harness (UZ6) | 12 |
| X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness | 13 |
| X200 Instrument Panel Harness to Body Harness X200 Instrument Panel Harness to Body Harness | 14 |
| X202 Instrument Panel Harness to Body Harness X202 Instrument Panel Harness to Body Harness | 15 |
| J228 Body Harness | 16 |
| J226 Body Harness | 17 |
| X201 Instrument Panel Harness to Body Harness X201 Instrument Panel Harness to Body Harness | 18 |
| J302 Body Harness (UZ6) | 19 |
| J320 Body Harness | 20 |
| J319 Body Harness | 21 |
| J318 Body Harness | 22 |
| J317 Body Harness (A45 or A74) | 23 |
| J316 Body Harness | 24 |
| J315 Body Harness | 25 |
| J314 Body Harness | 26 |
| J313 Body Harness (CE1) | 27 |
| J325 Body Harness | 28 |
