Installation Procedure

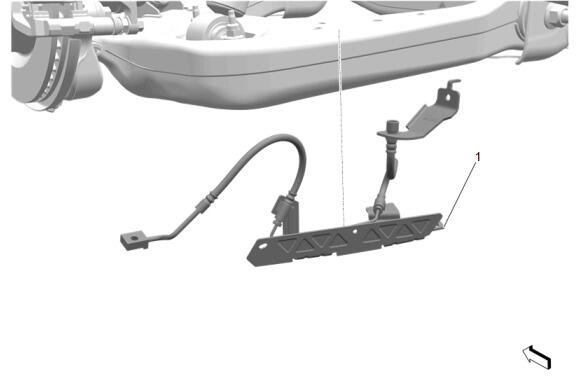

  1. GM5835319Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Hose (1) - Install

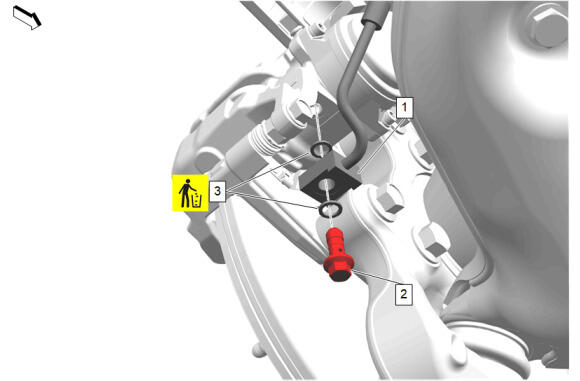

  2. GM5816934Courtesy of GENERAL MOTORS COMPANY

    Remove the plug from the rear brake caliper inlet.

  3. Rear Brake Washer (3) - Install NEW [2x]
  4. Rear Brake Hose (1) @ Rear Brake Caliper - Install
    5. CAUTION:

    Fastener Caution

  5. Rear Brake Hose Fitting (2) - Install and tighten - Fastener Specifications
  6. GM5835317Courtesy of GENERAL MOTORS COMPANY

    Remove the cap from the rear brake pipe outlet.

  7. Rear Brake Hose Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  8. Rear Brake Hose Clip Bolt (3) - Install and tighten - Fastener Specifications
  9. Rear Brake Rear Pipe Nut (2) - Install and tighten - Fastener Specifications

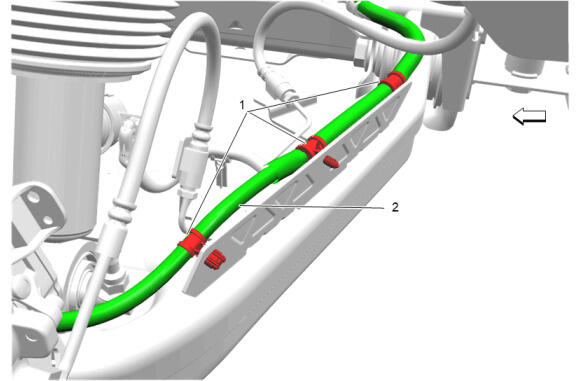

  10. GM5835318Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness (2) - Install

  11. Wiring Harness Retainer (1) @ Rear Brake Hose - Install [3x]
  12. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  13. Bleed the brake system. Hydraulic Brake System Bleeding
  14. Check for brake system leaks.
  15. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  16. Remove the support and lower the vehicle.
