Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

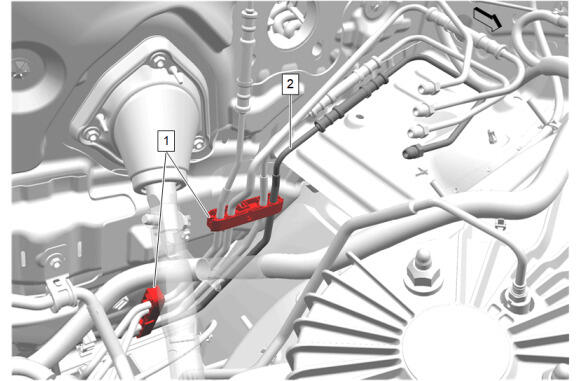

Maneuver the right front brake pipe (2) into the vehicle.
Front Brake Front Pipe Clip (1) - Engage [2x]
Courtesy of GENERAL MOTORS COMPANY

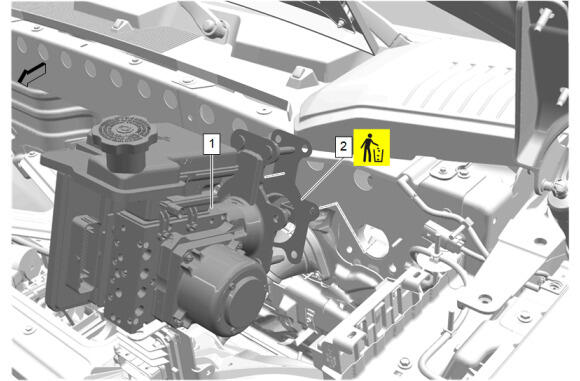

Brake Master Cylinder Gasket (2) - Install NEW
Maneuver the brake master cylinder (1) into the vehicle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

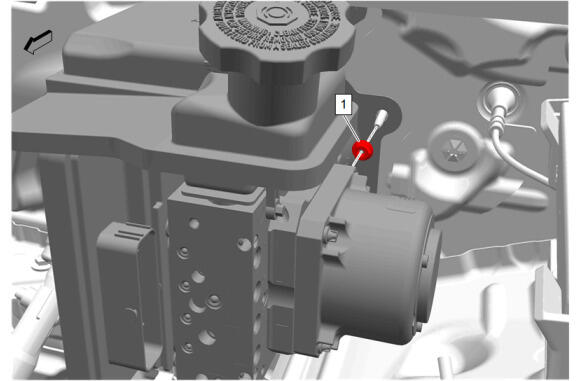

Brake Master Cylinder Adapter Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

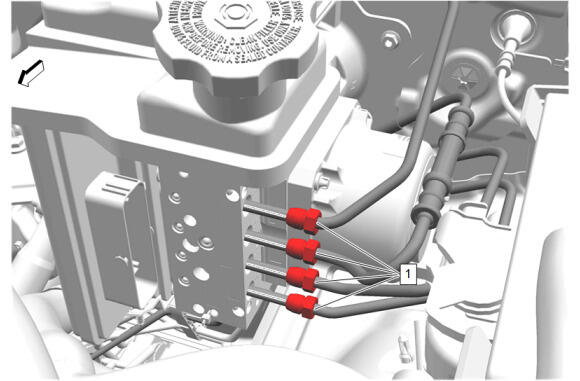

Rear Brake Front Pipe Nut (1) - Install and tighten [4x] - Fastener Specifications
Electrical Connector @ Brake Fluid Level Indicator Switch - Connect
Electrical Connector @ Brake System Control Module - Connect
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Nut (2) - Install and tighten [4x] - Fastener Specifications
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
Brake Pedal Push Rod Bolt (1) - Install and tighten - Fastener Specifications
Bleed the brake system. Hydraulic Brake System Bleeding
Check for brake system leaks.
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Side Sight Shield (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Side Sight Shield Retainer (1) - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

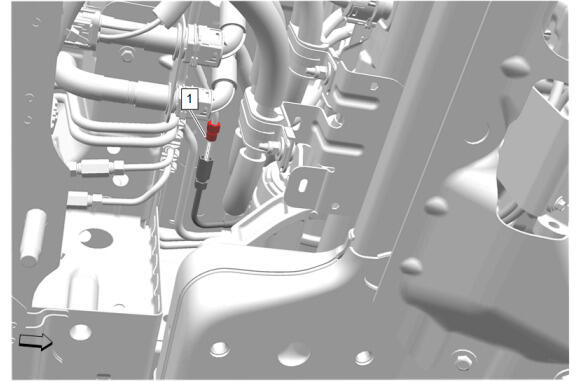

Rear Brake Rear Pipe Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

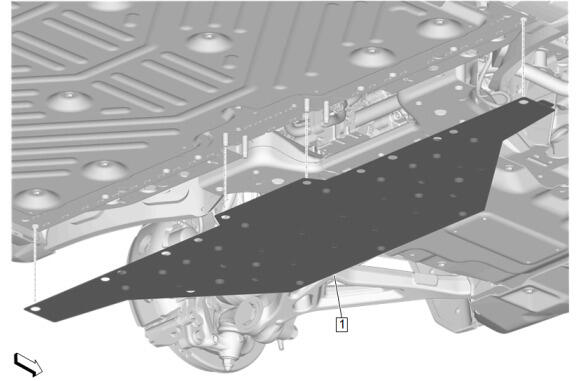

With the aid of an assistant, install the high voltage battery tray lower front reinforcement (1).
Courtesy of GENERAL MOTORS COMPANY

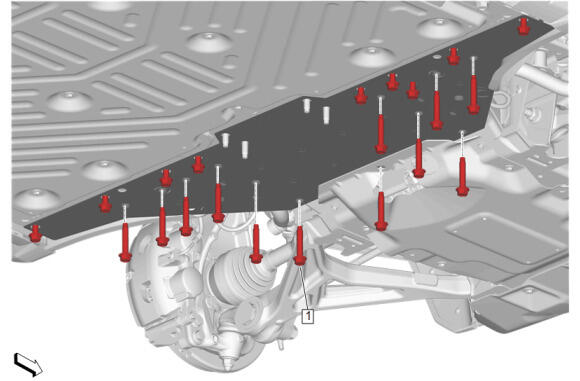

High Voltage Battery Tray Reinforcement Bolt (1) - Install and tighten [21x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

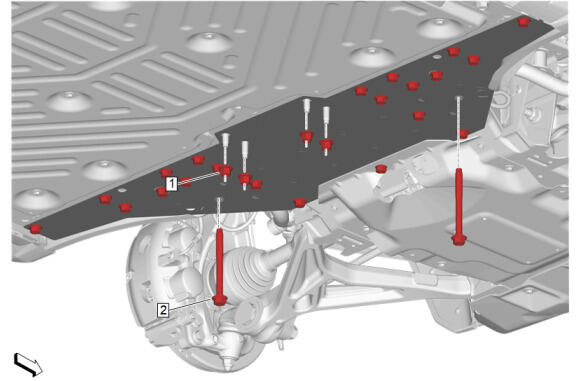

High Voltage Battery Tray Reinforcement Bolt (2) - Install and tighten [2x] - Fastener Specifications
High Voltage Battery Tray Reinforcement Nut (1) - Install and tighten [4x] - Fastener Specifications
Remove the support and lower the vehicle.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
