Installation Procedure

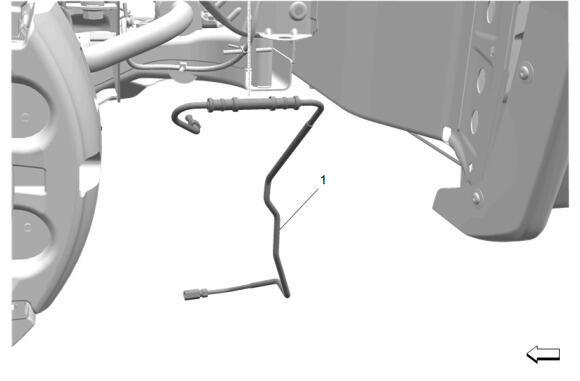

Maneuver the left front brake rear pipe (1) into the vehicle.

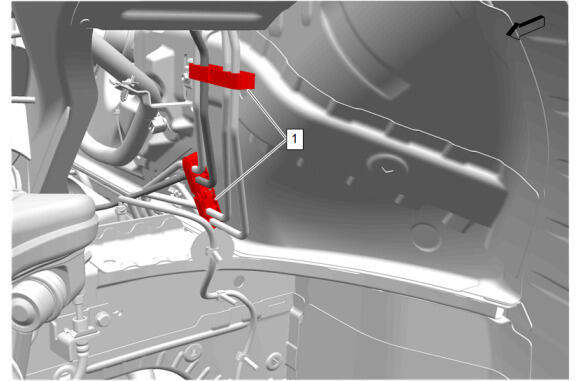

Front Brake Front Pipe Clip (1) - Engage [2x]

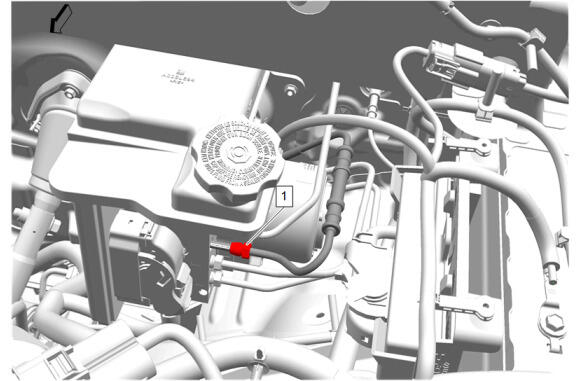

Remove the plug the brake master cylinder outlet port.
- Rear Brake Rear Pipe Nut (1) - Install and tighten - Fastener Specifications
Remove the cap from the front brake front pipe inlet.
- Rear Brake Rear Pipe Nut (1) - Install and tighten - Fastener Specifications
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Bleed the brake system. Hydraulic Brake System Bleeding
Front Wheelhouse Rear Liner (3) - Install
- Front Wheelhouse Liner Bolt (1) - Install and tighten [6x] - Fastener Specifications
- Rear Wheelhouse Liner Retainer (2) - Install
Front Fender Paint Protector (2) - Install
- Front Fender Paint Protector Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
