Installation Procedure

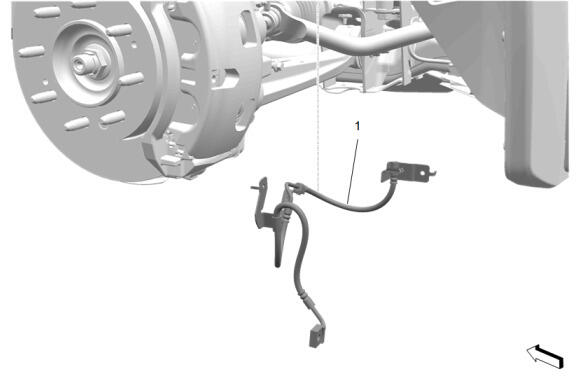

Front Brake Hose (1) - Install

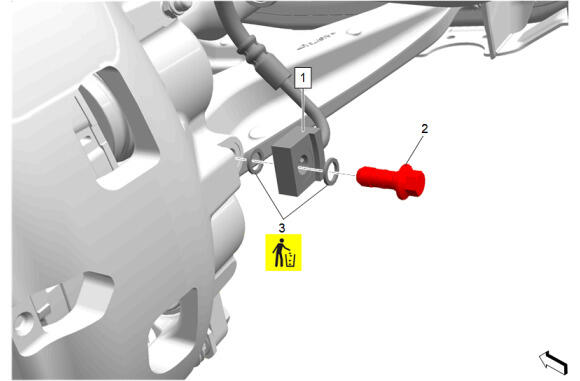

Remove the plug the front brake caliper inlet.
- Front Brake Hose Washer (3) - Install NEW [2x]
- Front Brake Hose (1) @ Front Brake Caliper - Install
- Front Brake Hose Fitting Bolt (2) - Install and tighten - Fastener Specifications

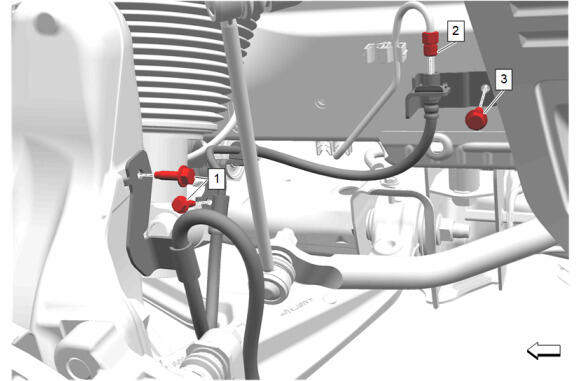

Remove the cap from the front brake pipe outlet.
- Front Brake Hose Bracket Bolt (3) - Install and tighten - Fastener Specifications
- Rear Brake Front Pipe Nut (2) - Install and tighten - Fastener Specifications
- Front Brake Hose Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Bleed the brake system. Hydraulic Brake System Bleeding
- Check for brake system leaks.
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
