Installation Procedure

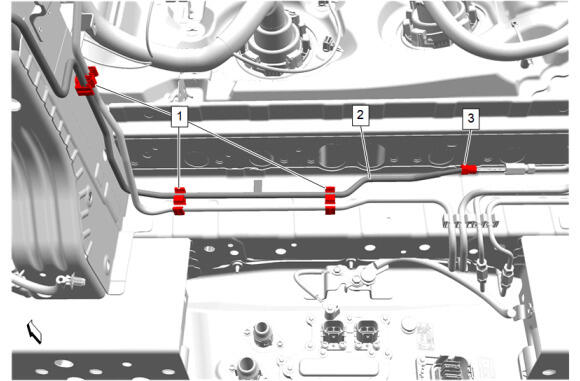

  1. GM5900990Courtesy of GENERAL MOTORS COMPANY

    Maneuver the right front brake front pipe (2) into the vehicle.

  2. Front Brake Front Pipe- Right Side (2) @ Front Brake Pipe Clip (1) - Install [3x]
    3. CAUTION:

    Refer to Fastener Caution .

  3. Rear Brake Rear Pipe Nut (3) - Install and tighten - Fastener Specifications

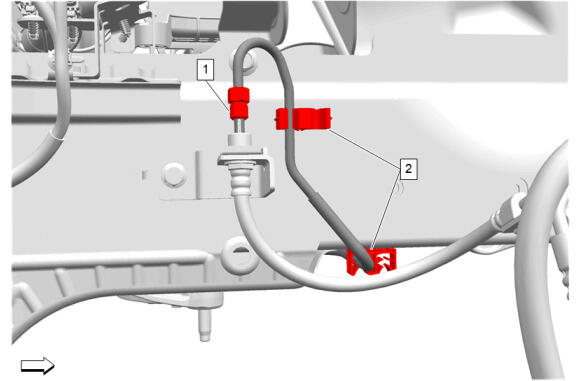

  4. GM5900989Courtesy of GENERAL MOTORS COMPANY

    Front Brake Pipe Clip (2) - Install [2x]

    Rear Brake Front Pipe Nut (1) - Install and tighten - Fastener Specifications

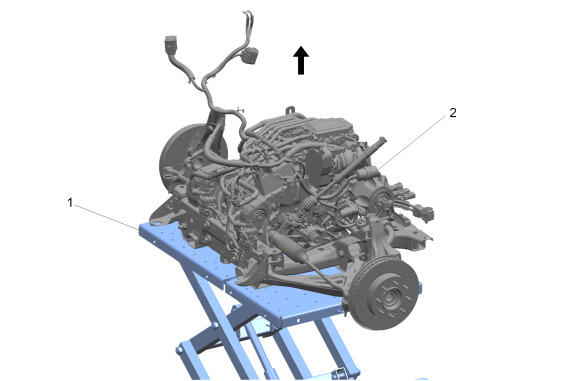

  5. GM5865311Courtesy of GENERAL MOTORS COMPANY

    Front Cradle (2) - Install - Front Cradle Removal and Installation
