Installation Procedure

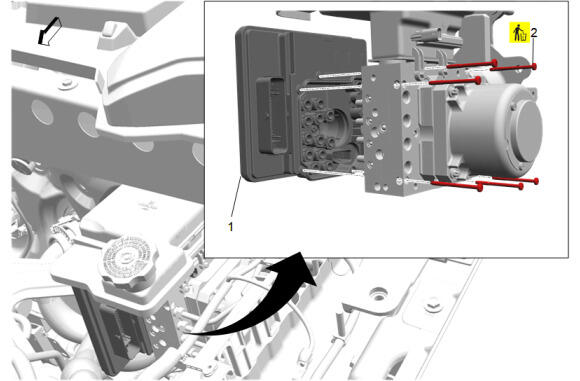

  1. GM5835301Courtesy of GENERAL MOTORS COMPANY

    Brake System Control Module (1) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Electronic Brake Control Module Bolt (2) - Install NEW and tighten in sequence [6x] - Fastener Specifications
  3. Electrical Connector @ Brake System Control Module - Connect
  4. GM5787987Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield (1) - Install

  5. GM5787985Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield Retainer (1) - Install [3x]

  6. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  7. Reprogram the brake system control module. Control Module References
