Installation Procedure

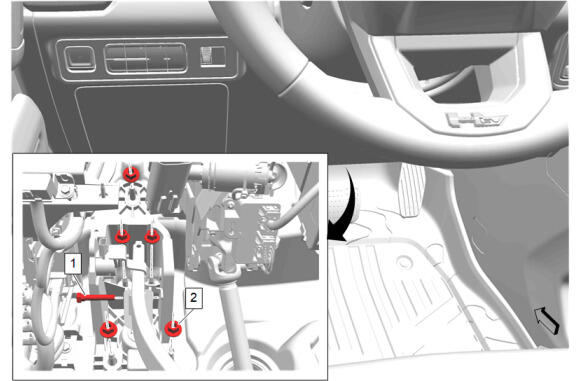

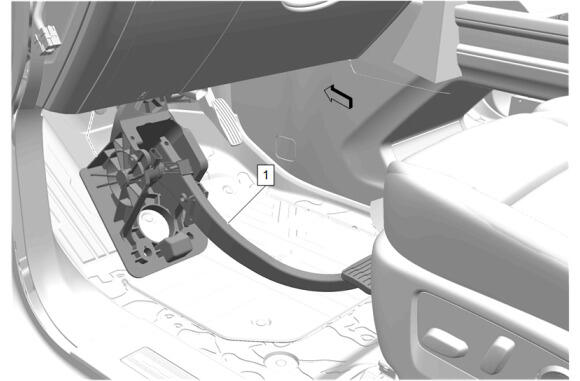

Brake Pedal (1) - Install

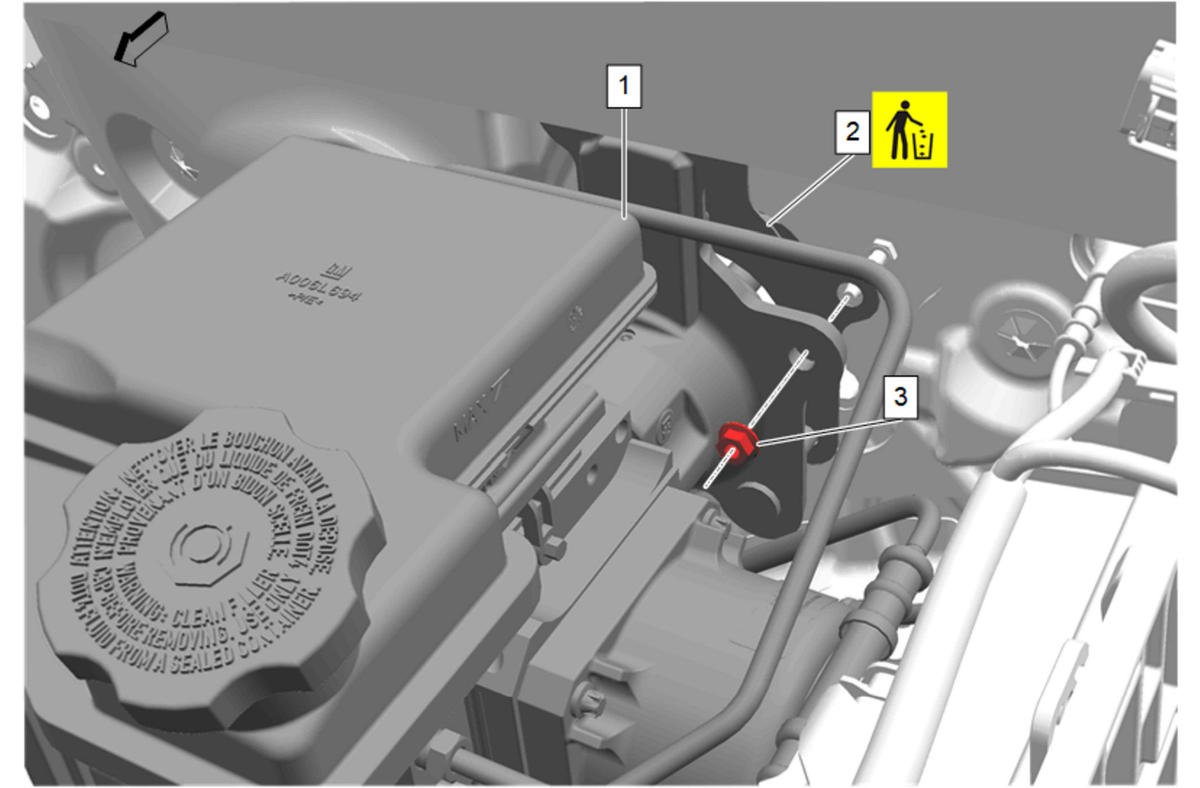

Brake Master Cylinder Gasket (2) - Install NEW
- Brake Master Cylinder (1) - Install
- Brake Master Cylinder Adapter Nut (3) - Install and tighten - Fastener Specifications
Brake Pedal Nut (2) - Install and tighten [5x] - Fastener Specifications
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
- Brake Pedal Push Rod Bolt (1) - Install and tighten - Fastener Specifications

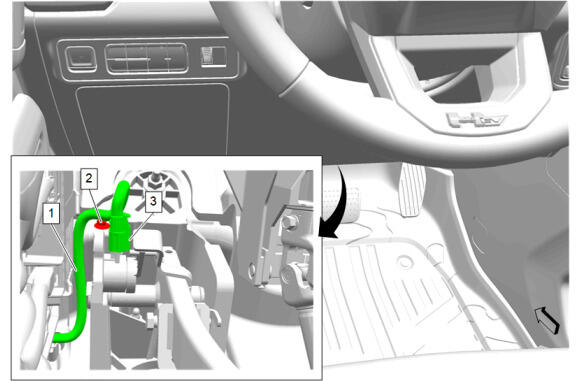

Wiring Harness (1) - Install
- Wiring Harness Retainer (2) @ Brake Pedal - Install
- Electrical Connector (3) - Connect
Front Compartment Side Sight Shield (1) - Install
Front Compartment Side Sight Shield Retainer (1) - Install [3x]
- Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
CAUTION:
Refer to Fastener Caution .
