Installation Procedure

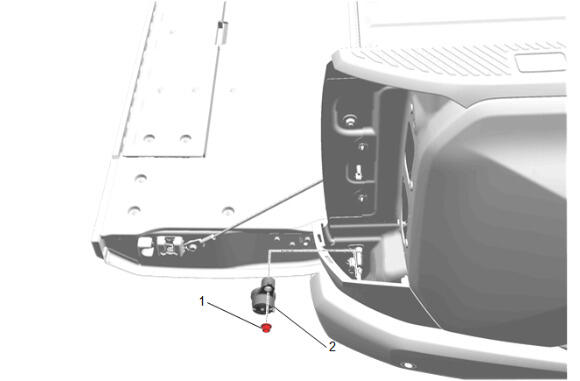

  1. GM5814843Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Dampener (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Pickup Box Endgate Dampener Nut (1) - Install and tighten - Fastener Specifications

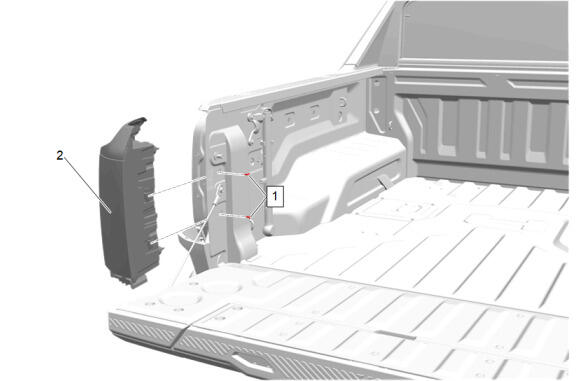

  3. GM5810929Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Rear Body Structure Stop Lamp (2) - Install
  5. Rear Body Structure Stop Lamp Bolt (1) - Install and tighten [2x] - Fastener Specifications
  6. Close The Endgate

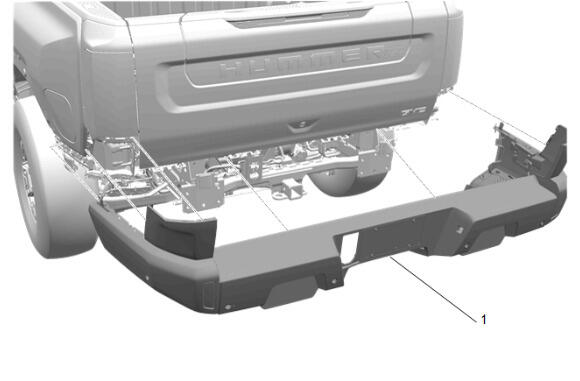

  7. GM5807720Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the fascia. (1) Rear Bumper Fascia Removal and Installation
