Fastener Specifications

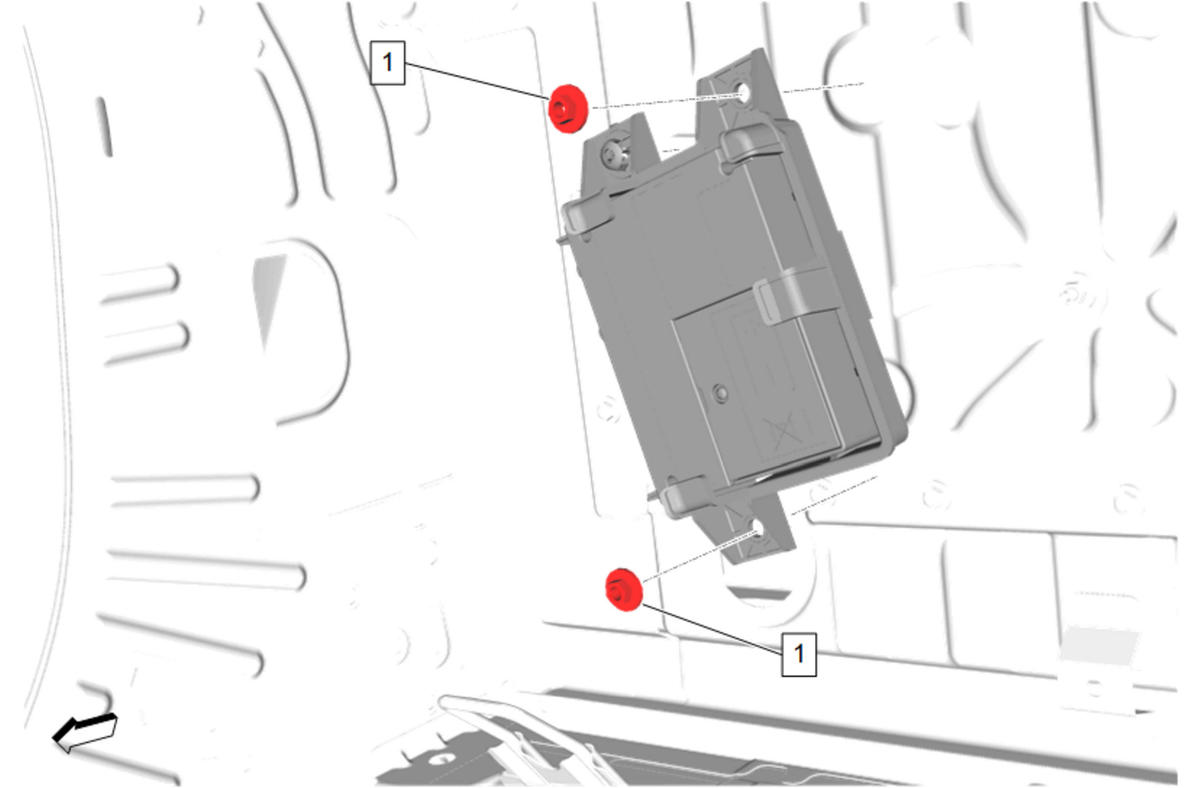

GM6049733Courtesy of GENERAL MOTORS COMPANY
Communication Interface Module Nut

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Communication Interface Module Nut [2x] - - 9 N.m (80 lb in) Rear End Panel Reinforcement Replacement

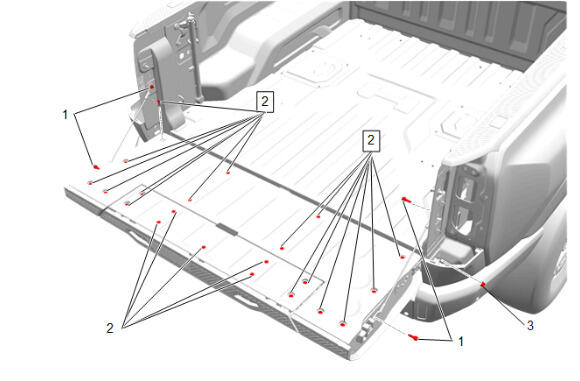

GM5830958Courtesy of GENERAL MOTORS COMPANY
Endgate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Endgate Latch Bolt [4x] - Yes 30 N.m (22 lb ft) Pickup Box Endgate Cable Replacement
2 Pickup Box Endgate Access Hole Cover Panel Bolt [21x] - - 2.5 N.m (22 lb in) Pickup Box Endgate Access Hole Cover Panel Replacement
Pickup Box Endgate Access Hole Cover Replacement - Auxiliary Endgate Step
3 Pickup Box Endgate Dampener Nut - - 25 N.m (18 lb ft) Pickup Box Endgate Dampener Replacement

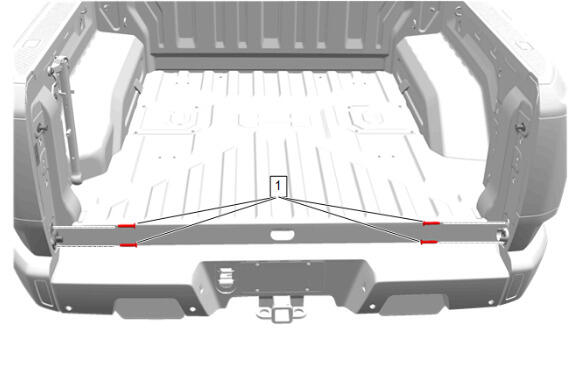

GM5831487Courtesy of GENERAL MOTORS COMPANY
Endgate Hinge Body Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Endgate Hinge Bracket Bolt [4x] - - 40 N.m (30 lb ft) Pickup Box Endgate Body Side Hinge Replacement - Left Side
Pickup Box Endgate Body Side Hinge Replacement - Right Side

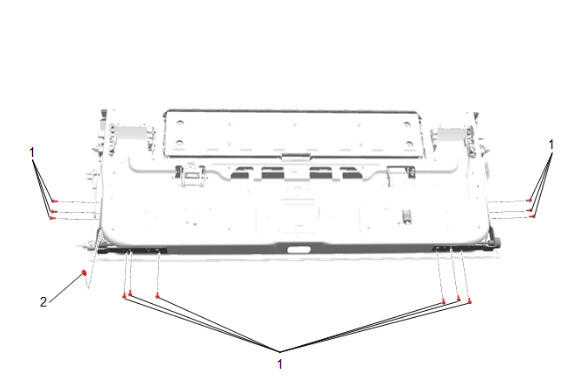

GM5831480Courtesy of GENERAL MOTORS COMPANY
Endgate Hinge and Torque Rod

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Endgate Hinge Bolt [12x] - - 22 N.m (16 lb ft) Pickup Box Endgate Closure Side Hinge Replacement - Left Side
Pickup Box Endgate Closure Side Hinge Replacement - Right Side
2 Pickup Box Endgate Torque Rod Bolt - - 58 N.m (43 lb ft) Pickup Box Endgate Torque Rod Replacement

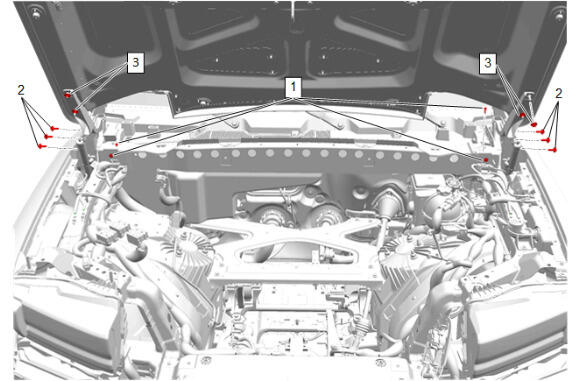

GM5831348Courtesy of GENERAL MOTORS COMPANY
Front Compartment, Hood

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front End Sheet Metal Cross Panel Bolt [4x] - - 22 N.m (16 lb ft) Front End Sheet Metal Cross Brace Bracket Replacement
2 Hood Hinge Bolt [6x] - - 25 N.m (18 lb ft) Hood Hinge Replacement
3 Hood Hinge Nut [4x] - - 22 N.m (16 lb ft) Hood Replacement

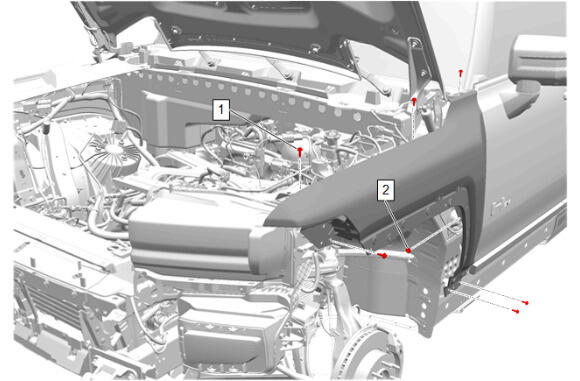

GM5831897Courtesy of GENERAL MOTORS COMPANY
Front Fender

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Fender Bolt [6x] - - 9 N.m (80 lb in) Front Fender Replacement
2 Front Fender Nut - - 9 N.m (80 lb in) Front Fender Replacement

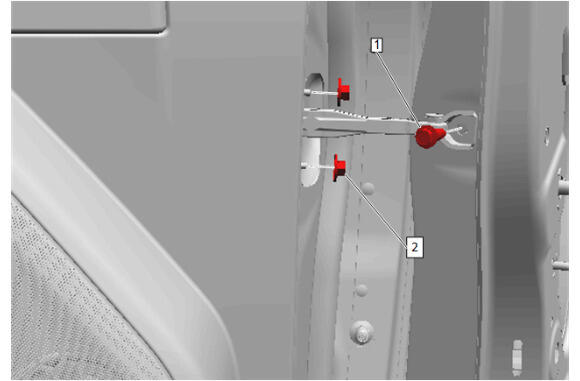

GM5607862Courtesy of GENERAL MOTORS COMPANY
Front Side Door Check Link

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Check Link Bolt - - 22 N.m (16 lb ft) Front Side Door Check Link Replacement
2 Front Side Door Check Link Nut [2x] - - 9 N.m (80 lb in) Front Side Door Check Link Replacement

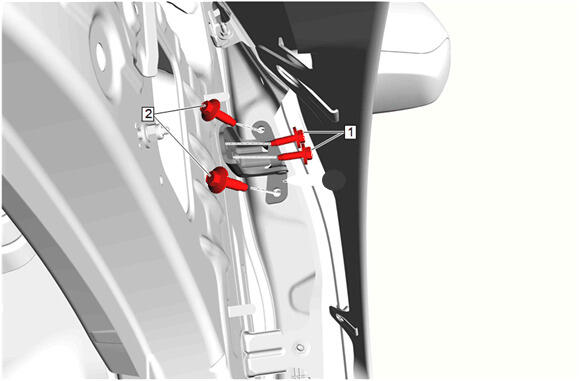

GM5600915Courtesy of GENERAL MOTORS COMPANY
Front Side Door Hinge

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Hinge Bolt - Body Side [2x] - - 32 N.m (24 lb ft) Front Side Door Upper Hinge and Lower Hinge Replacement
2 Front Side Door Hinge Bolt - Door Side [2x] - - 25 N.m (18 lb ft) Front Side Door Upper Hinge and Lower Hinge Replacement

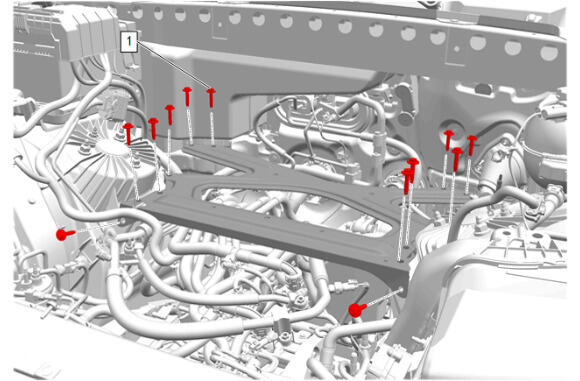

GM5835725Courtesy of GENERAL MOTORS COMPANY
Front Suspension Strut Housing Brace

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front End Sheet Metal Cross Brace Bolt [12x] - - 22 N.m (16 lb ft) Front Suspension Strut Housing Brace Replacement

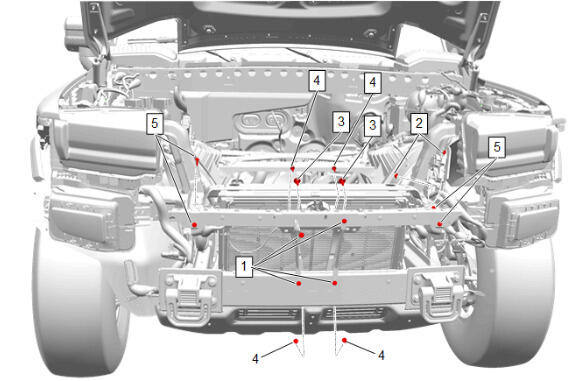

GM5831313Courtesy of GENERAL MOTORS COMPANY
Hood Latch Actuator, Latch, Mount Panel, Bracket Support

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Shutter Bolt [4x] - - 9 N.m (80 lb in) Hood Front Bumper Bracket Support Replacement
2 Hood Latch Actuator Nut [2x] - - 9 N.m (80 lb in) Front Stowage Compartment Latch Actuator Replacement
3 Hood Primary and Secondary Latch Bolt [2x] - - 22 N.m (16 lb ft) Hood Primary and Secondary Latch Replacement
4 Hood Primary Latch Mount Panel Bracket Bolt [4x] - - 9 N.m (80 lb in) Hood Primary Latch Mount Panel Bracket Replacement
5 Hood Primary Latch Support Bolt [4x] - - 9 N.m (80 lb in) Hood Primary Latch Support Replacement

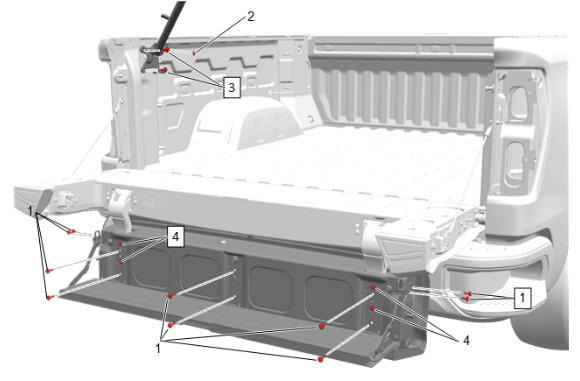

GM5657084Courtesy of GENERAL MOTORS COMPANY
Pickup Box Auxiliary Endgate Step

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Auxiliary Endgate Hinge Bolt [10x] - - 9 N.m (80 lb in) Pickup Box Auxiliary Endgate Step Replacement
2 Pickup Box Auxiliary Endgate Step Handle Bolt - - 22 N.m (16 lb ft) Pickup Box Auxiliary Endgate Step Handle Replacement
3 Pickup Box Auxiliary Endgate Step Handle Nut [2x] - - 22 N.m (16 lb ft) Pickup Box Auxiliary Endgate Step Handle Replacement
4 Pickup Box Endgate Hinge Bolt - Upper [4x] - - 9 N.m (80 lb in) Pickup Box Auxiliary Endgate Replacement - Upper

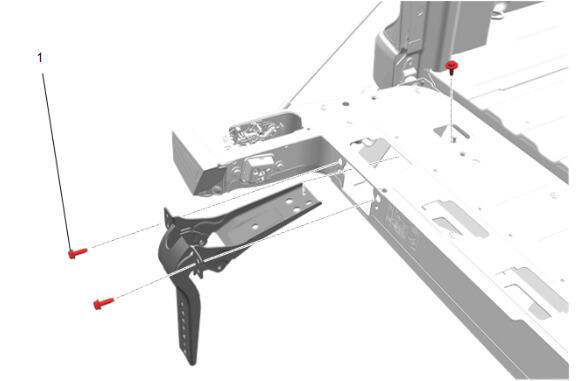

GM6053657Courtesy of GENERAL MOTORS COMPANY
Pickup Box Endgate Center Closure Side Hinge

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Auxiliary Endgate Hinge Bolt [3x] - - 22 N.m (16 lb ft) Pickup Box Endgate Center Closure Side Hinge Replacement - Left Side
Pickup Box Endgate Center Closure Side Hinge Replacement - Right Side

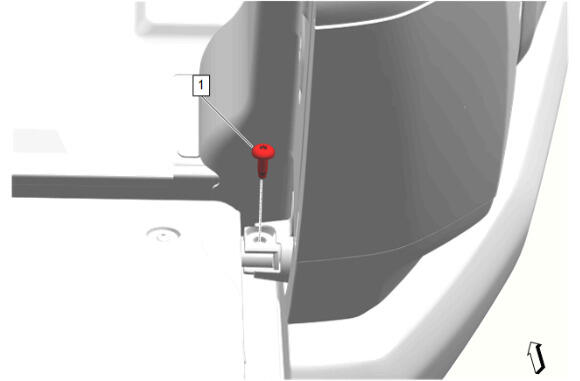

GM6053699Courtesy of GENERAL MOTORS COMPANY
Pickup Box Endgate Hinge Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Endgate Hinge Bolt - - 22 N.m (16 lb ft) Pickup Box Endgate Replacement
Rear Closure Fixed Handle Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Center Applique Bolt - - 2.5 N.m (22 lb in) Pickup Box Endgate Latch Handle Replacement

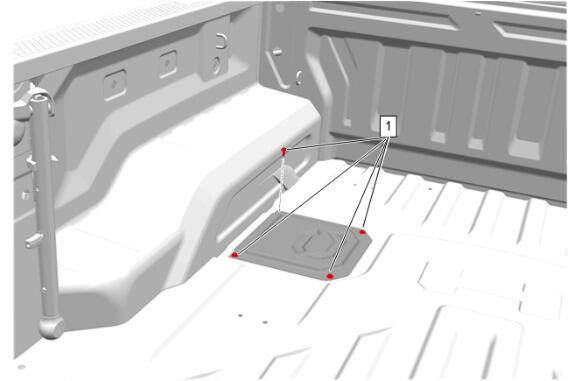

GM5840079Courtesy of GENERAL MOTORS COMPANY
Rear Floor Panel Opening Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Load Floor Rear Compartment Bolt [4x] - - 9 N.m (80 lb in) Rear Floor Panel Opening Cover Replacement - Pickup Box

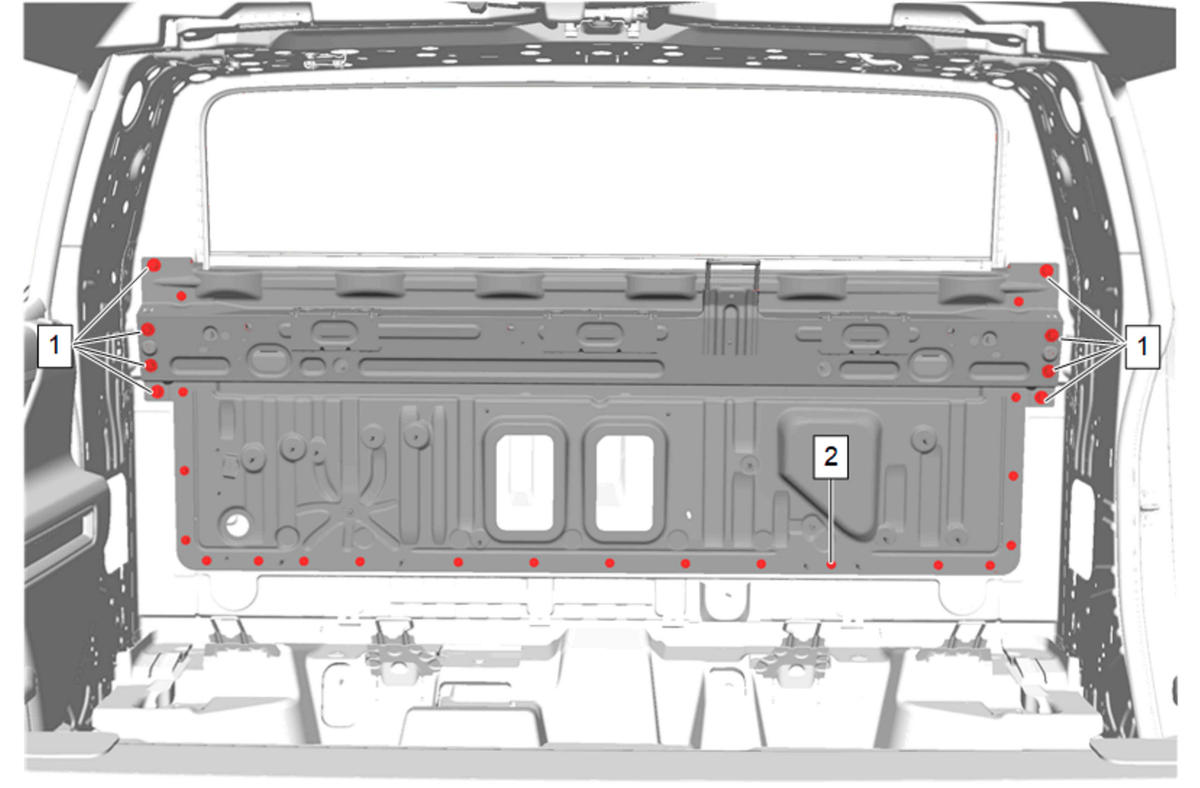

GM6049252Courtesy of GENERAL MOTORS COMPANY
Rear End Panel Reinforcement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear End Panel Reinforcement Bolt [8x] - - 22 N.m (16 lb ft) Rear End Panel Reinforcement Replacement
2 Rear Panel Access Bolt [20x] - - 9 N.m (80 lb in) Rear End Panel Reinforcement Replacement
GM5840079Courtesy of GENERAL MOTORS COMPANY
Rear Floor Panel Opening Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Load Floor Rear Compartment Bolt [4x] - - 9 N.m (80 lb in) Rear Floor Panel Opening Cover Replacement - Pickup Box

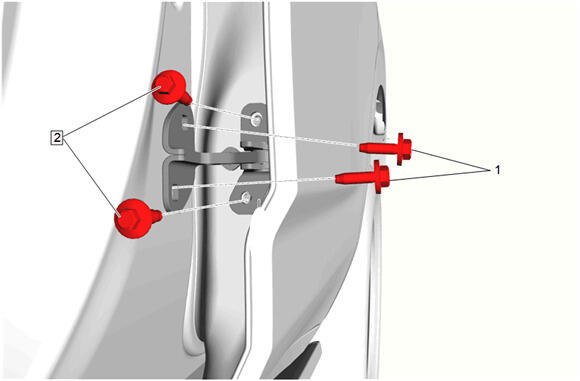

GM5605274Courtesy of GENERAL MOTORS COMPANY
Rear Side Door

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Hinge Bolt - Body Side [2x] - - 32 N.m (24 lb ft) Rear Side Door Upper Hinge and Lower Hinge Replacement
2 Rear Side Door Hinge Bolt - Door Side [2x] - - 25 N.m (18 lb ft) Rear Side Door Upper Hinge and Lower Hinge Replacement

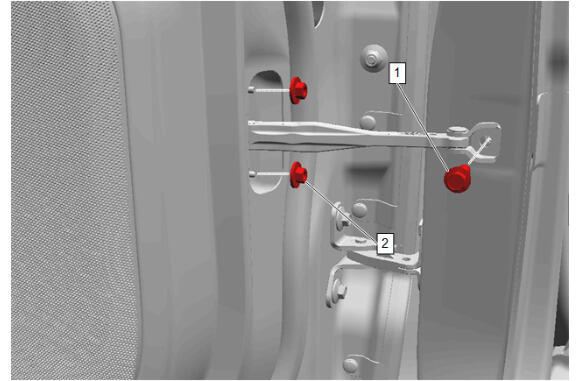

GM5607864Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Check Link

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Check Link Bolt - - 22 N.m (16 lb ft) Rear Side Door Check Link Replacement
2 Rear Side Door Check Link Door Side Nut [2x] - - 9 N.m (80 lb in) Rear Side Door Check Link Replacement
