Installation Procedure

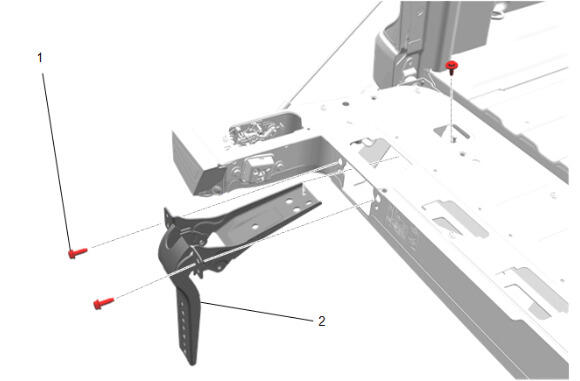

  1. GM6051991Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Center Closure Side Hinge- Left Side (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Pickup Box Auxiliary Endgate Hinge Bolt (1) - Install and tighten [3x] - Fastener Specifications

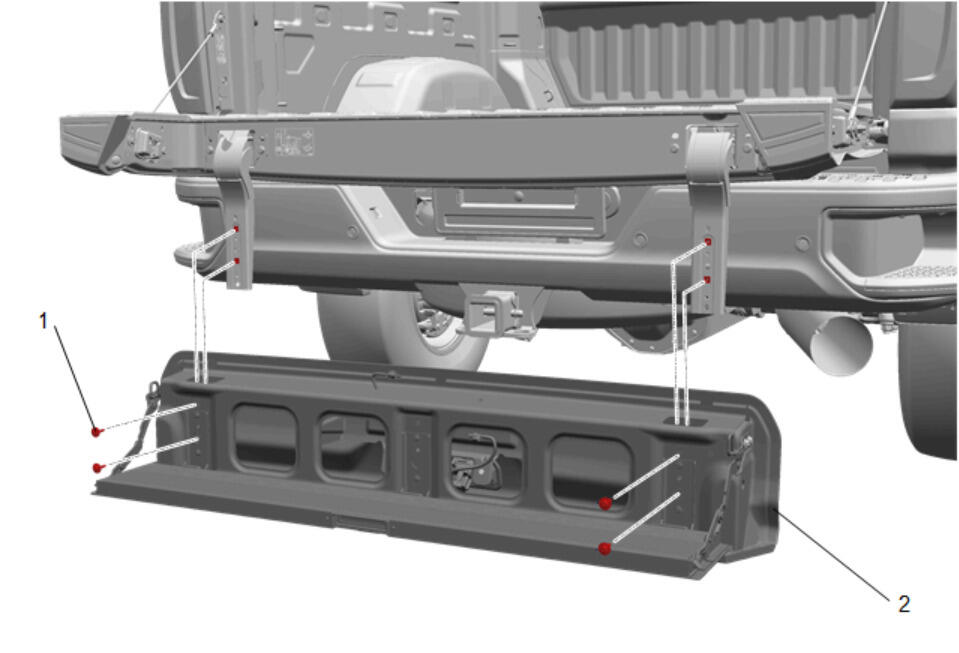

  3. GM5245262Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Auxiliary Endgate - Upper (2) - Install

  4. Pickup Box Endgate Hinge Bolt - Upper (1) - Install and tighten [4x] - Fastener Specifications
  5. Install the retainers and wiring harness.
  6. Connect the electrical connectors.

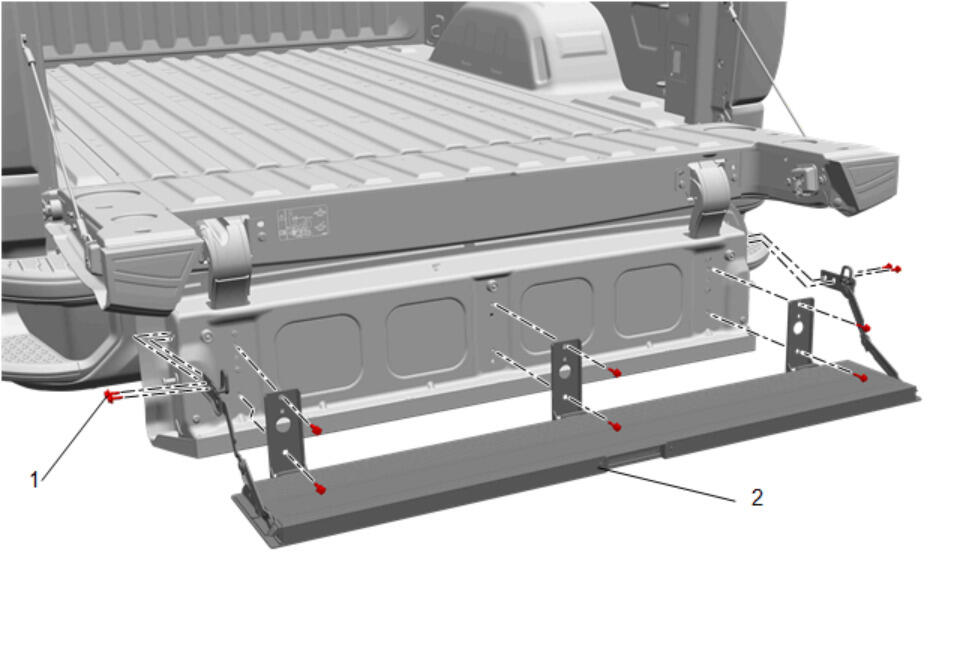

  7. GM5043501Courtesy of GENERAL MOTORS COMPANY

    Install the access hole covers.

  8. Pickup Box Auxiliary Endgate Step (2) - Install
  9. Pickup Box Auxiliary Endgate Hinge Bolt (1) - Install and tighten [10x] - Fastener Specifications

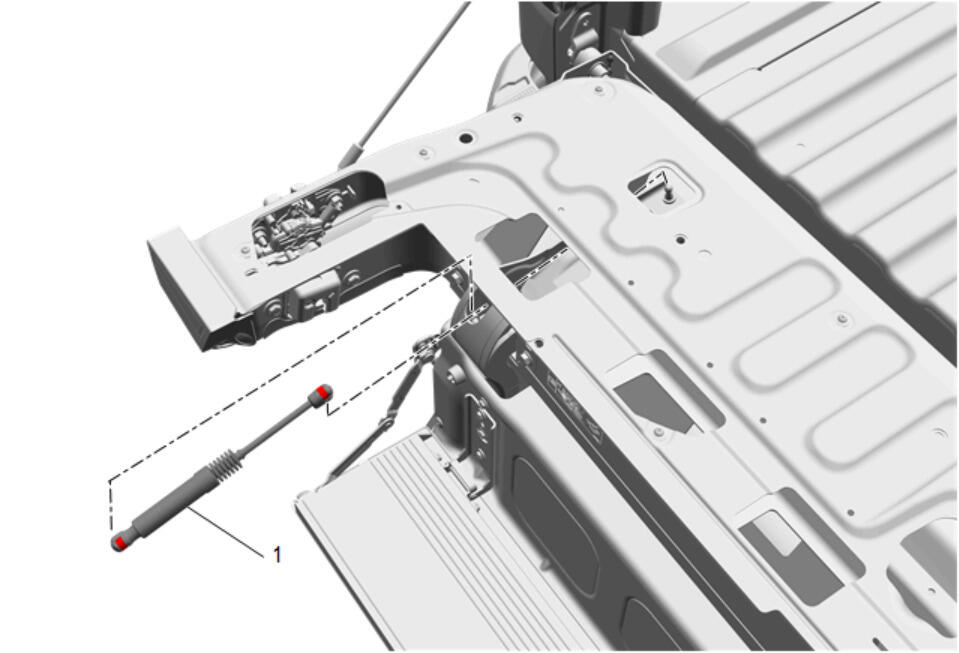

  10. GM5043664Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the clip is fully seated when the damper is reinstalled. If the clip cannot be fully seated, a new damper should be installed.

    Pickup Box Auxiliary Endgate Dampener (1) - Install

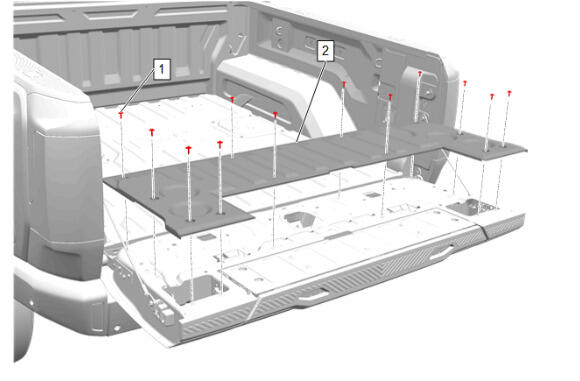

  11. GM5814845Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Access Hole Cover Panel (2) - Install

  12. Pickup Box Endgate Access Hole Cover Panel Bolt (1) - Install and tighten [12x] - Fastener Specifications
  13. Close the pickup box auxiliary endgate step.
