Installation Procedure

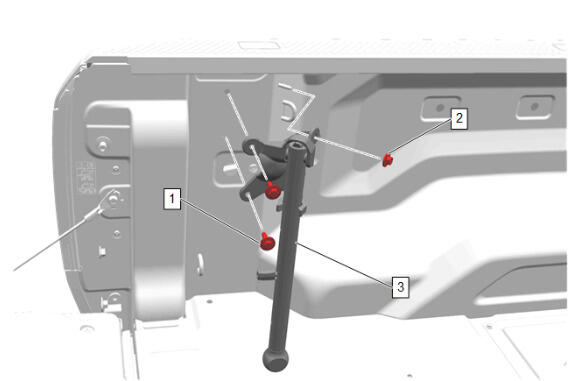

  1. GM5814847Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Auxiliary Endgate Step Handle (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Pickup Box Auxiliary Endgate Step Handle Nut (2) - Install and tighten - Fastener Specifications
  3. Pickup Box Auxiliary Endgate Step Handle Bolt (1) - Install and tighten [2x] - Fastener Specifications
  4. Close The Endgate
