Installation Procedure

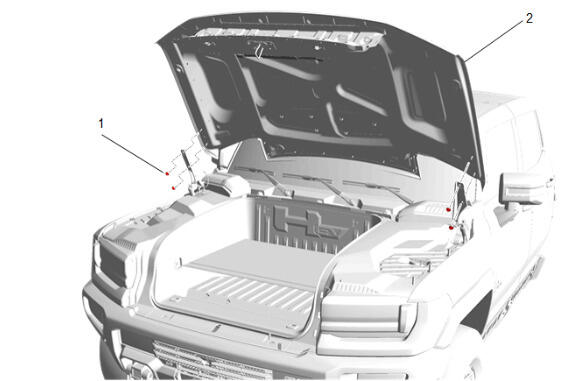

  1. GM5821220Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the hood. (2)

    2. CAUTION:

    Refer to Fastener Caution .

  2. Hood Hinge Nut (1) - Install and tighten [4x] - Fastener Specifications

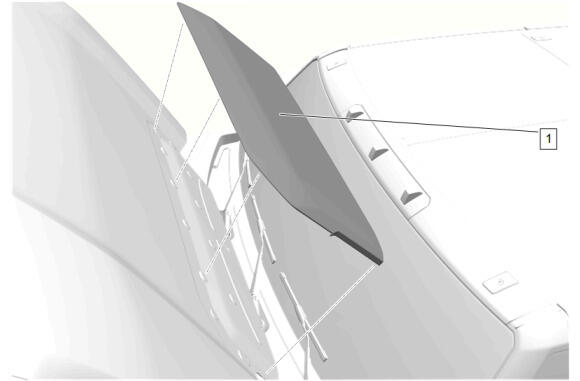

  3. GM5810337Courtesy of GENERAL MOTORS COMPANY

    Hood Center Molding (1) - Install

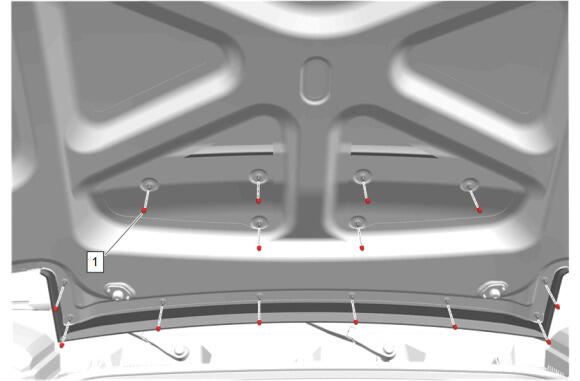

  4. GM5810336Courtesy of GENERAL MOTORS COMPANY

    Hood Center Molding Nut (1) - Install and tighten [14x] - Fastener Specifications

  5. GM5821178Courtesy of GENERAL MOTORS COMPANY

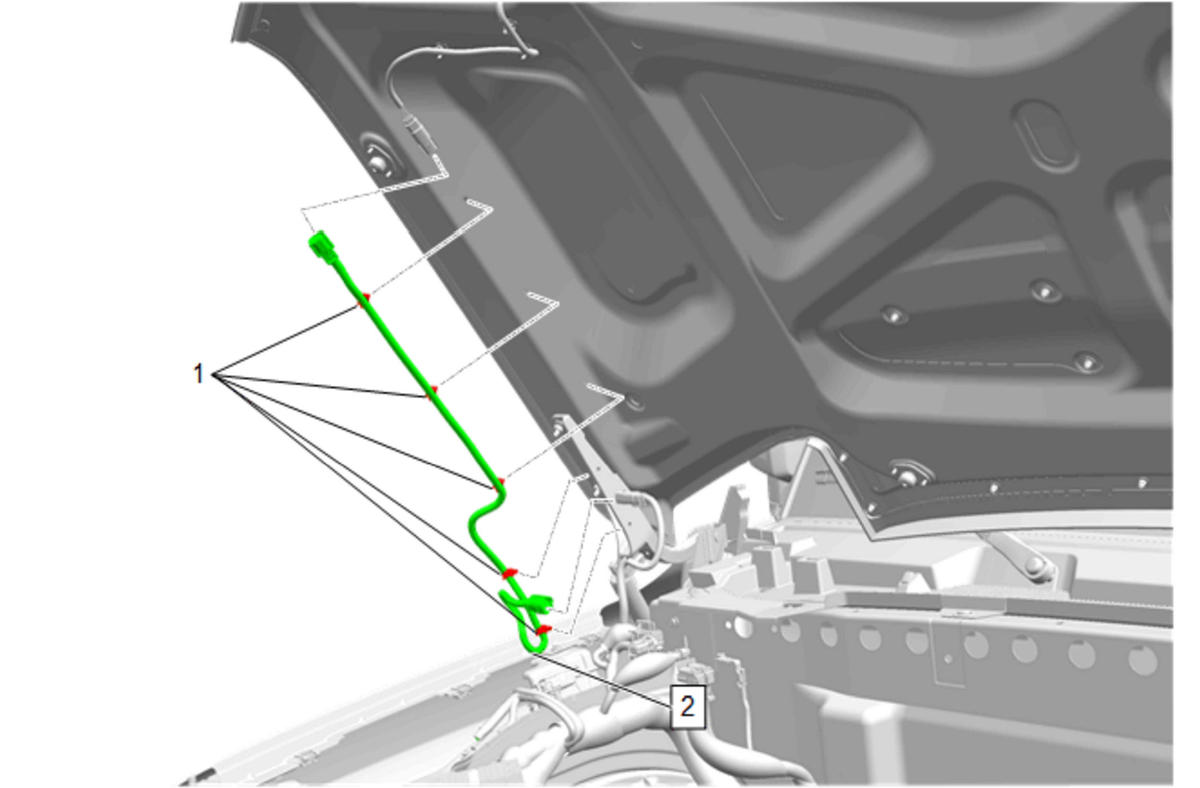

    Underhood Lamp Wiring Harness (2) - Install

  6. Wiring Harness Retainer (1) - Install [5x]
  7. Connect the electrical connectors.

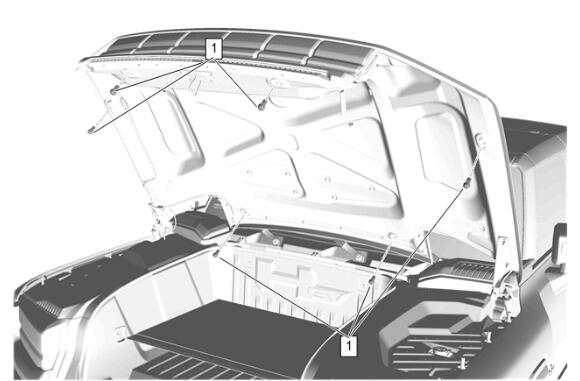

  8. GM5821176Courtesy of GENERAL MOTORS COMPANY

    Hood Front Bumper (1) - Install [6x]

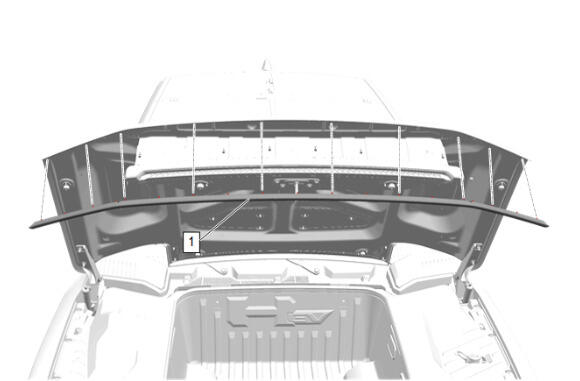

  9. GM5821177Courtesy of GENERAL MOTORS COMPANY

    Hood Front Weatherstrip (1) - Install

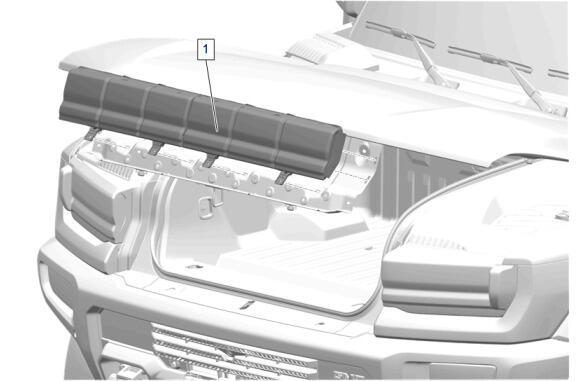

  10. GM5810924Courtesy of GENERAL MOTORS COMPANY

    Front Decorative Lamp (1) - Install

  11. Front Decorative Lamp Nut (1) - Install and tighten [8x] - Fastener Specifications
  12. Connect the electrical connector.

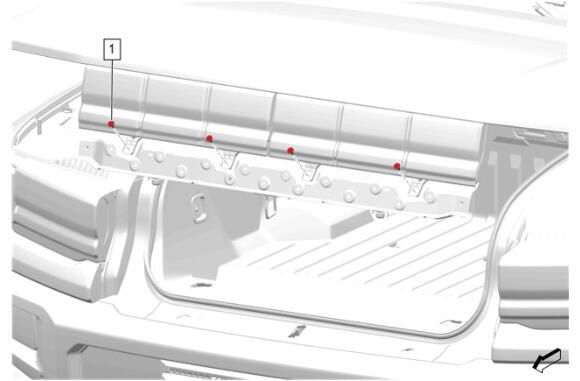

  13. GM6012793Courtesy of GENERAL MOTORS COMPANY

    Front Decorative Lamp Bolt (1) - Install and tighten [4x] - Fastener Specifications

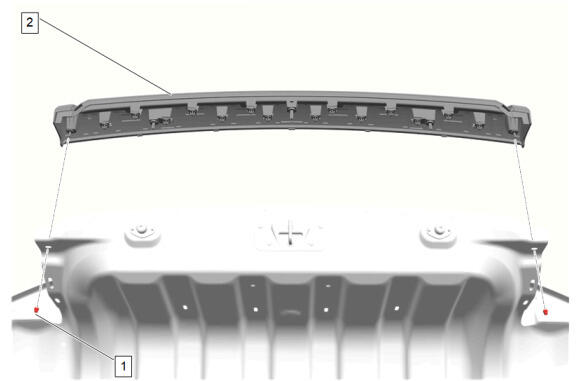

  14. GM5816551Courtesy of GENERAL MOTORS COMPANY

    Hood Front Molding (2) - Install

  15. Hood Front Molding Nut (1) - Install and tighten [2x] - Fastener Specifications
  16. Adjust if necessary. Hood Adjustment
