Installation Procedure

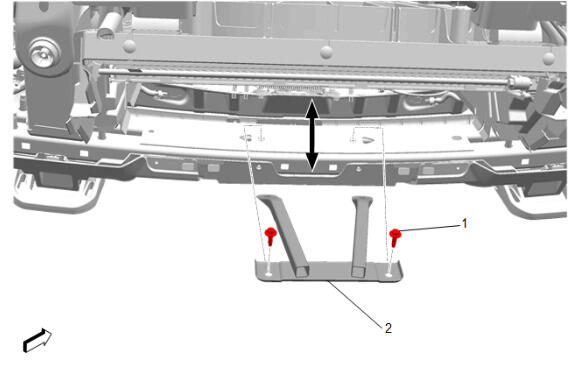

  1. GM5812883Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Mount Panel Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Hood Primary Latch Mount Panel Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

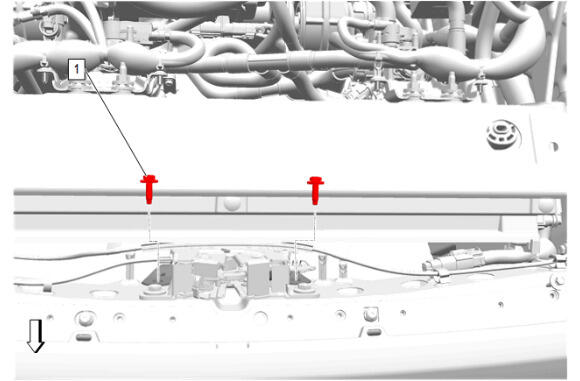

  3. GM5812882Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Mount Panel Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

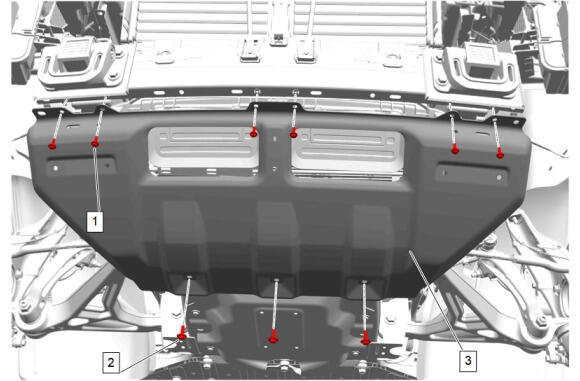

  4. GM5810304Courtesy of GENERAL MOTORS COMPANY

    Underbody Splash Shield (3) - Install

  5. Connect the electrical connector.
  6. Underbody Splash Shield Bolt- Lower (2) - Install and tighten [3x] - Fastener Specifications
  7. Underbody Splash Shield Bolt- Upper (1) - Install and tighten [6x] - Fastener Specifications
  8. GM5788843Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
