Adjustment Procedure
- Hood Hinge Nut - Loosen [4x]

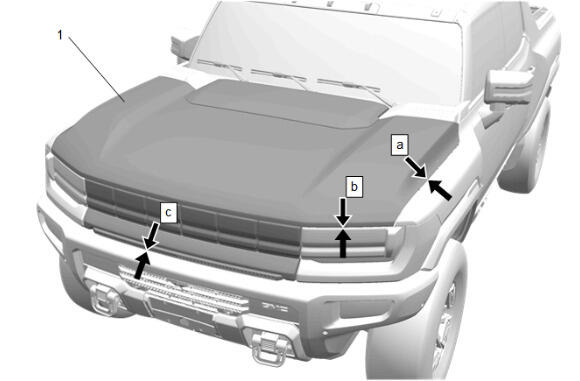

Adjust the hood (1) in order to obtain an even gap on both sides between the hood and the fenders, headlamps and the front bumper fascia:
- Hood to front fender (a) (4.0 mm ± 1.0 mm – 0.15 in ± 0.04 in)
- Hood to headlamp (b) (5.0 mm ± 1.5 mm – (0.06 in ± 0.06 in))
- Hood to upper fascia (c) (5.0 mm ± 1.5 mm – (0.19 in ± 0.06 in))
- Hood Hinge Nut - Tighten [4x] - Fastener Specifications
Front Trim Finish Compartment (2) - Remove - Front Trim Finish Compartment Replacement

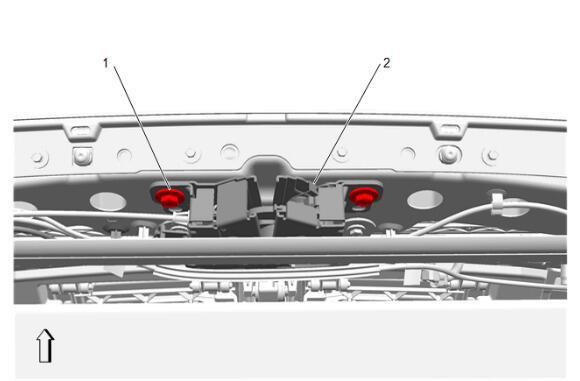

Hood Primary and Secondary Latch Bolt (1) - Loosen [2x]
- Hood Primary and Secondary Latch (2) - Adjust
- Adjust the hood bumpers as necessary.
Hood Primary and Secondary Latch Bolt (1) - Tighten [2x] - Fastener Specifications
Front Trim Finish Compartment (2) - Install - Front Trim Finish Compartment Replacement
CAUTION:
Refer to Fastener Caution .
