Installation Procedure

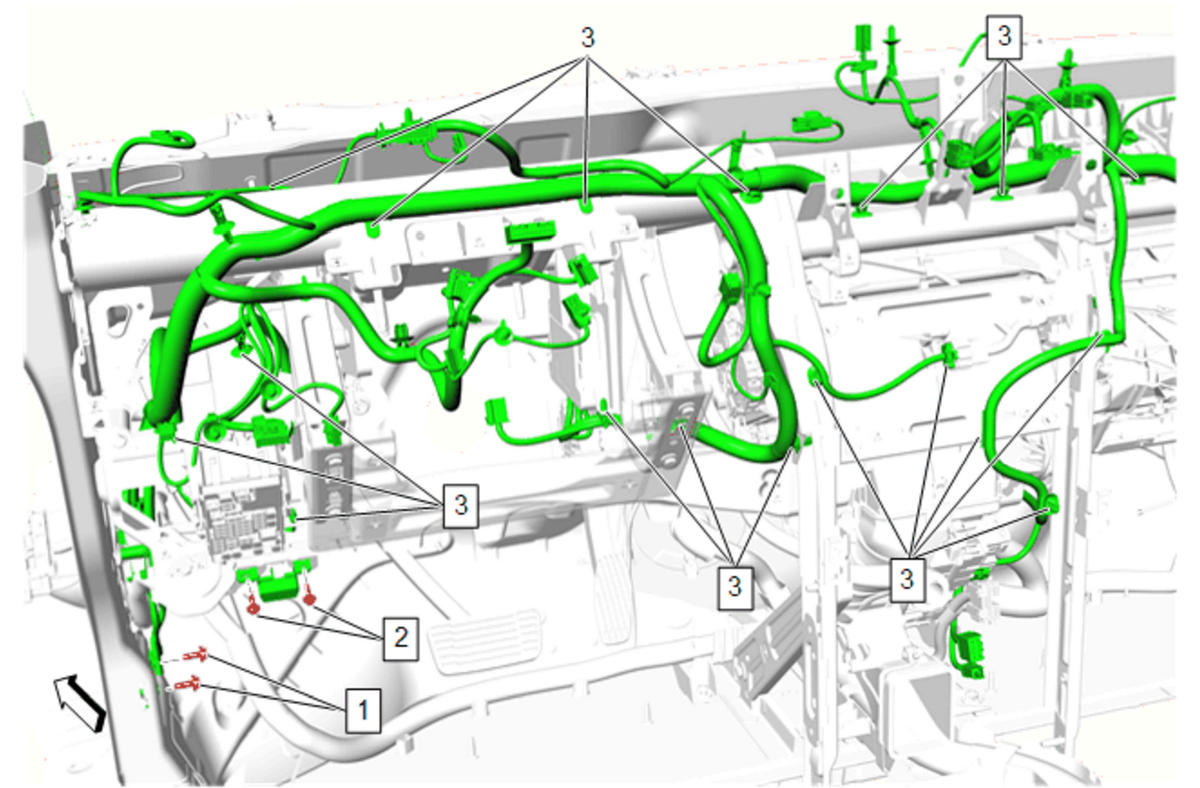

  1. GM5823844

    Connect and position the wiring harness.

  2. Instrument Panel Wiring Harness (3) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Data Link Connector Bolt (2) - Install and tighten [2x] - Fastener Specifications
  4. Instrument Panel Wiring Harness Ground Bolt (1) - Install and tighten [2x] - Fastener Specifications

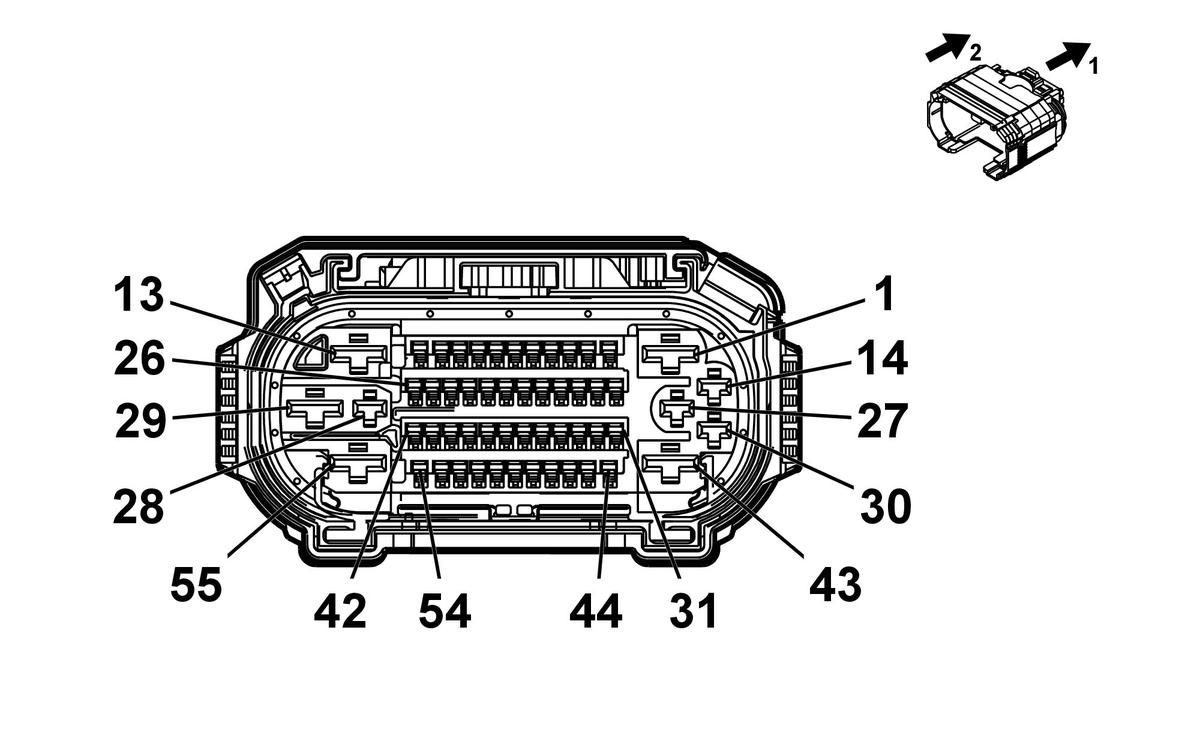

  5. GM5823842

    Connect and position the wiring harness.

  6. Instrument Panel Wiring Harness (1) - Install

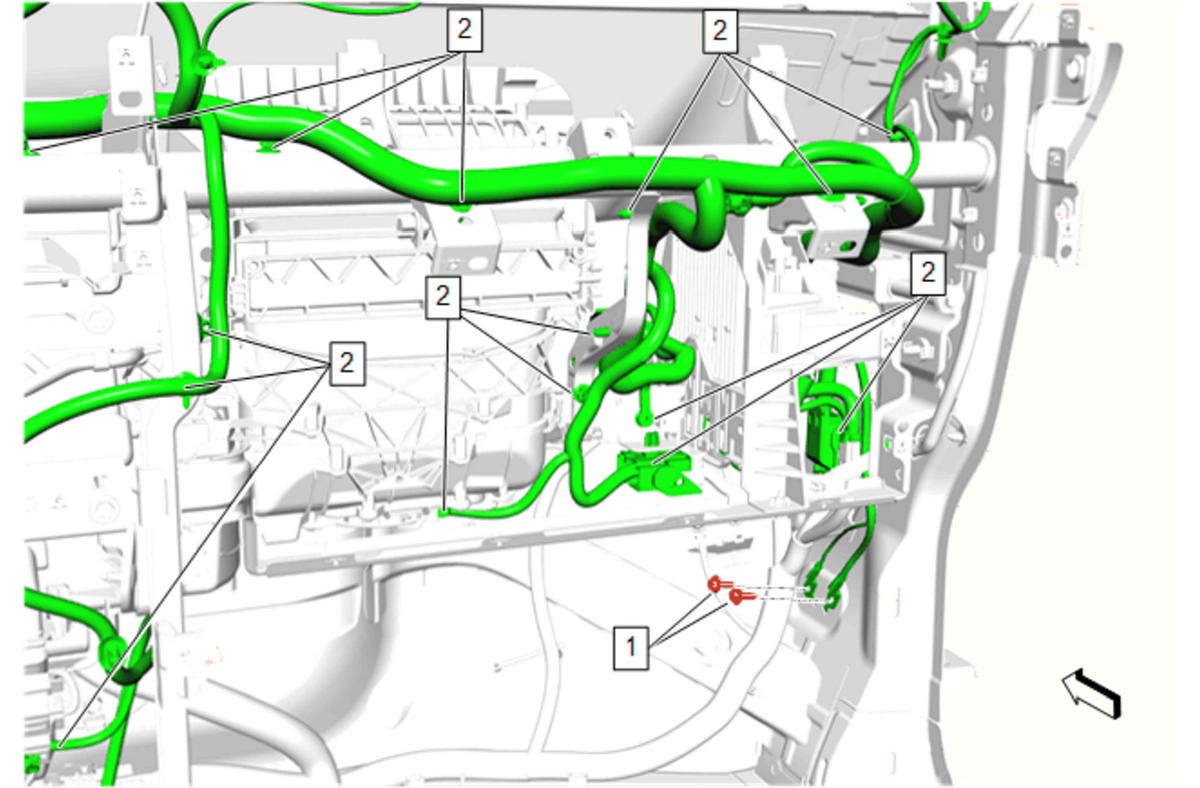

  7. GM5823841

    Connect and position the wiring harness.

  8. Instrument Panel Wiring Harness (2) - Install
  9. Instrument Panel Wiring Harness Ground Bolt (1) - Install and tighten [2x] - Fastener Specifications

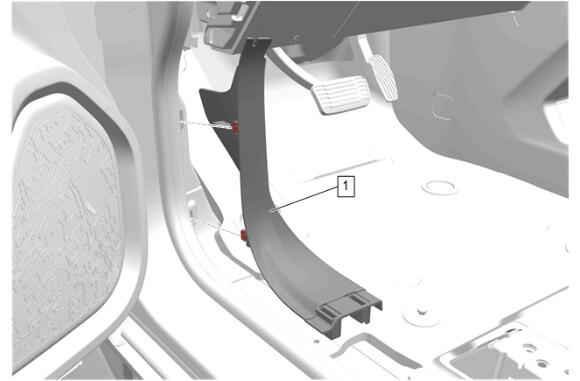

  10. GM5777892

    Starting at the front of the front side door sill garnish molding (1) engage the 2 retaining clips on the forward vertical wall on both sides of the vehicle.

    11. NOTE:

    Left side shown, right side similar.

  11. Front Side Door Sill Garnish Molding- Left Side and Right Side (1) - Install [2x]
  12. GM5777893

    Engage the retaining clips at the front of the side door sill garnish moldings (1) on both sides of the vehicle.

    13. NOTE:

    Left side shown, right side similar.

  13. Side Door Sill Garnish Molding- Left Side and Right Side (1) - Install [2x]
  14. On both sides of the vehicle, install the front of the side door weatherstrips as necessary.
  15. GM5775694

    Instrument Panel Lower Trim Panel Insulator (2) - Install

  16. Instrument Panel Lower Insulator Retainer (1) - Install [4x]

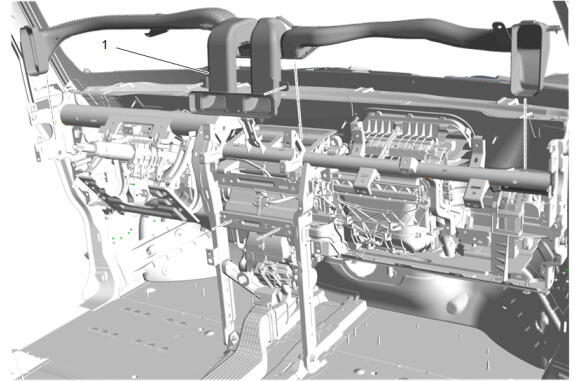

  17. GM5814875

    Instrument Panel Outer Air Outlet Duct (1) - Install

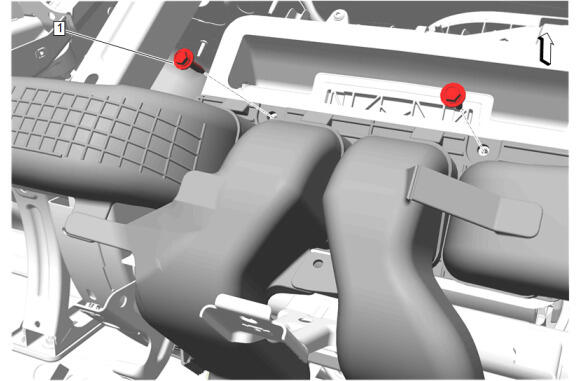

  18. GM5814873

    Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [2x] - Fastener Specifications

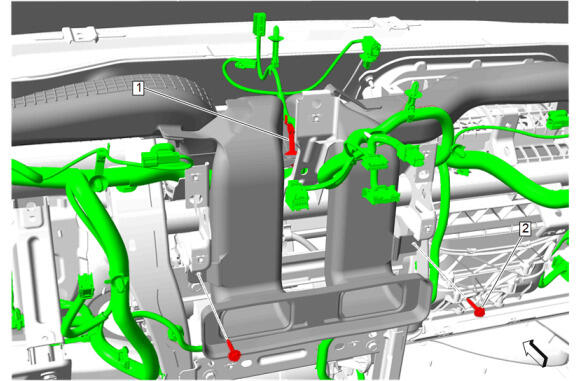

  19. GM5814871

    Instrument Panel Outer Air Outlet Bolt (2) - Install and tighten [2x] - Fastener Specifications

  20. Wiring Harness Retainer (1) - Install

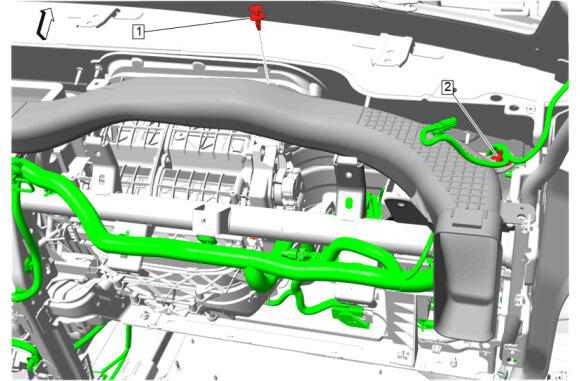

  21. GM5814869

    Wiring Harness Retainer (2) - Install

  22. Instrument Panel Outer Air Outlet Duct Retainer (1) - Install

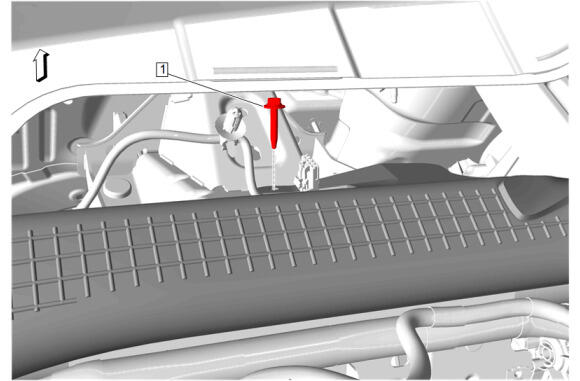

  23. GM5814868

    Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten - Fastener Specifications

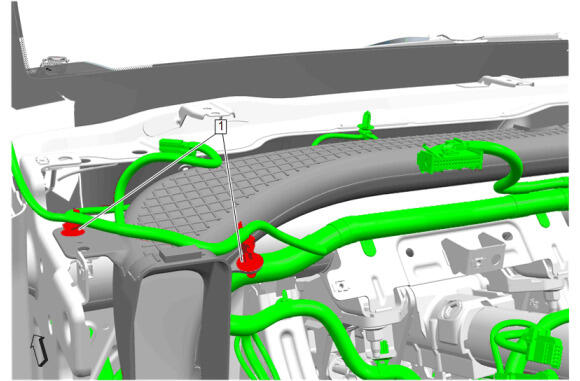

  24. GM5814867

    Wiring Harness Retainer (1) - Install [2x]

  25. Instrument Panel Carrier - Install - Instrument Panel Carrier Replacement
